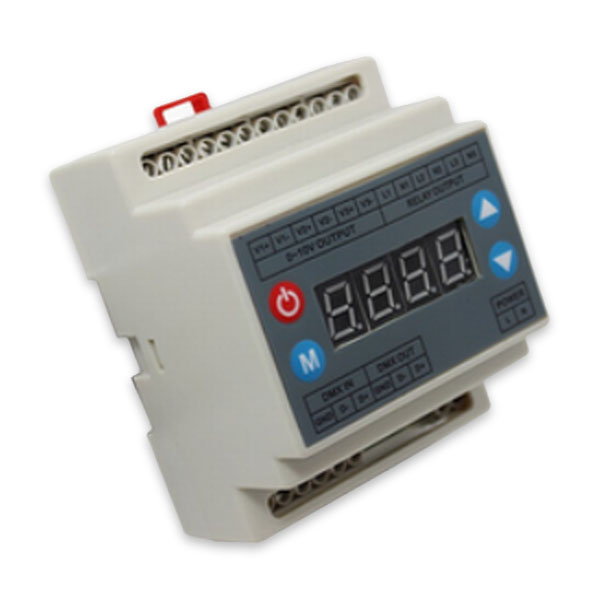

0-10v Input voltage convenient wiring DMX 0-10V dimmer for 0-10 v connecting lamps , led strips lights ,stadium lighting

0-10v Input voltage convenient wiring DMX 0-10V dimmer for 0-10 v connecting lamps , led strips lights ,stadium lighting

Model: DMX303

$59.98

Free Shipping Worldwide On Order Over $199
Qty Discounts Off Price
1-4
$59.98
5-9
$58.78
10-14
$56.98
15+
$54.58
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Summarization
         DMX 0-10V dimmer adopt industrial grade advanced computer control chip, the shell adopt guide rail type, suitable for industrial environment; Increase 3 channel relay power supply output, as 3 channel 0-10V power supply input, the dimming effect is better. Used to control the lamps and lanterns which connect with 0-10V power supply, have convenient wiring, easy to use such advantages; According to customer's actual demand can realize the dimming function.


    Standards and Certifications



    Technical parameters

    Working temperature: -20-60

    Power supply voltage: AC90~240V(50~60Hz)

    Output: 3 channel

    Output signal: 0-10V

    External dimension: L87×W72×H54 mm

    Packing size: L100×W80×H75 mm

    Net weight: 155g

    Gross weight: 210g

    Static power consumption: <3W

    0-10V output current: <15mA(each channel)

    Relay maximum output power: <200W(each channel

    Specifications Download

    Interface instruction

    0-10V OUTPUT: 3 channel 0-10V dimming signal output interface, each channel maximum current is15mA.
    RELAY OUTPUT: 3 channel relay output interface, output voltage range is 90-240VAC, as power supply input of 0-10V dimming power supply.
    DMXIN: DMX signal input interface.
    DMXOUT: DMX signal output interface.
    POWER:Power supply input interface, input voltage range is 90-240VAC.

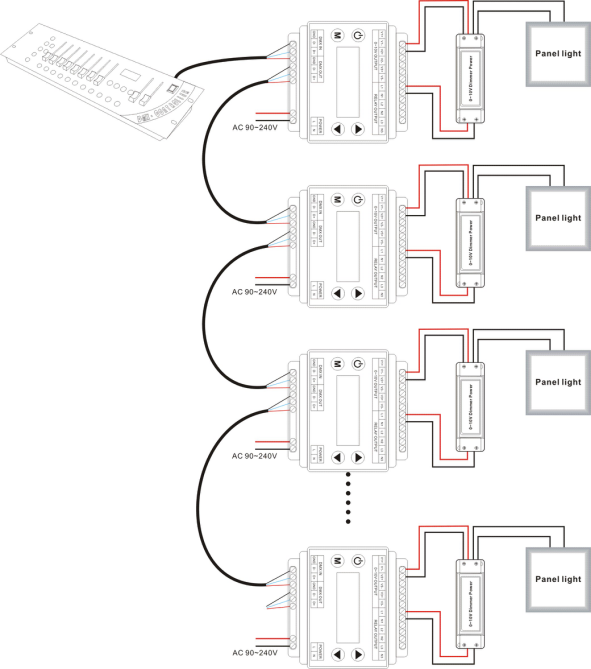

    Typical Applications














    0-10v Input voltage convenient wiring DMX 0-10V dimmer for 0-10 v connecting lamps , led strips lights ,stadium lighting

    0-10v Input voltage convenient wiring DMX 0-10V dimmer for 0-10 v connecting lamps , led strips lights ,stadium lighting
