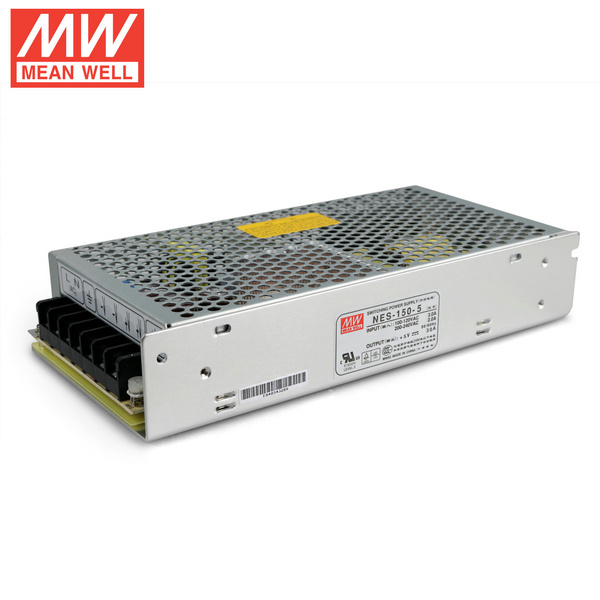

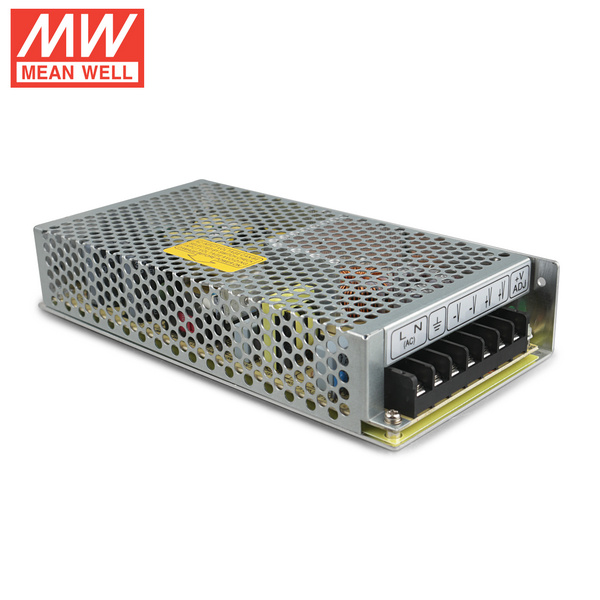

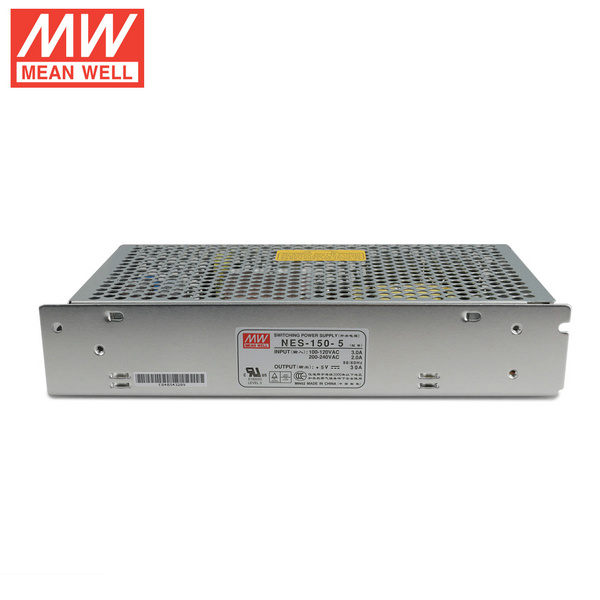

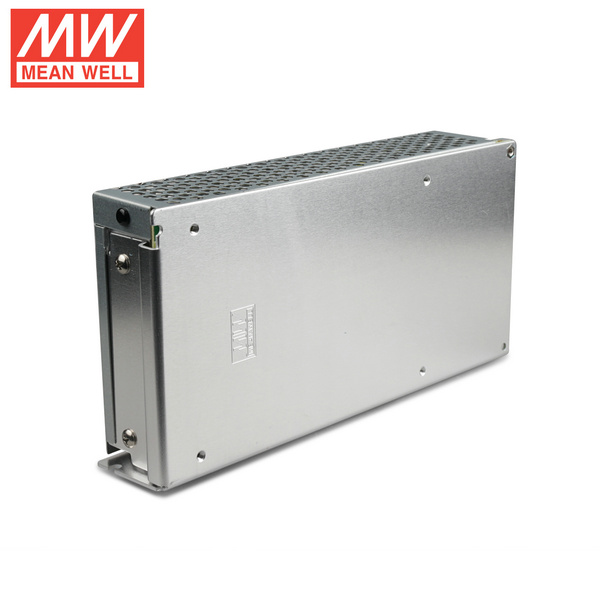

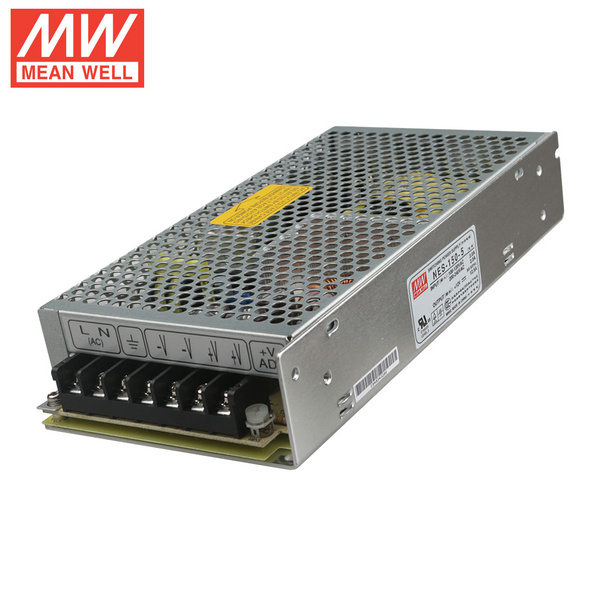

Mean Well NES-150-5 DC5V 150Watt 30A UL Certification AC110-240 Volt Switching Power Supply For LED Strip Lights Lighting

Model: NES-150-5

$36.00

Free Shipping Worldwide On Order Over $199

Please Choose:

UL Certification:





Operating Voltage :



Qty Discounts Off Price
1-4
$36.00
5-9
$35.28
10-14
$34.20
15+
$32.76
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Mean Well NES-150-5 DC5V 150Watt 30A UL Certification AC110-240 Volt Switching Power Supply For LED Strip Lights Lighting

    Automatic Overload cut-off, Over Voltage cut-off, Automatic Thermal cut-off, Short circuit protection. built-in EMI filter, 100% load test ,Full range of input voltage, output voltage accurate and stable, Output over-voltage,  over-current and short-circuit protection, Output low ripple and noise

    NOTE:

    This item is power adapter (transformer) of AC -DC Low Voltage for 5V Parapet lights, Spot Light, Wall Washer, Grow Light, Single colour RGB or dream color LED strip lights and led module string.

    Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage 85% of this Power supply adaptor, Otherwise it will affect the brightness of the LEDs and the service life of the power supply.



    Standards and Certifications





    Product Specification

    Power Supply Type:   Mean Well Switching Power Supply

    Input Voltage AC:   110/220V

    Output Voltage DC:   5 VDC

    Output Power :   30A 150Watts

    Warranty:   3 years

    Average working no trouble:   >50, 000 hours

    Working temperature:   - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

    Storage temperature:   - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

    Height above sea level:   ≦2000M

    Connection Type:   Screw Terminals

    Input Frequency Range:   47 ~ 63 Hz

    IP Rating:   Non-Waterproof

    Output Channels:   2 channels

    Built-in PFC Function:   Yes   PF>0.93

    Fixed switching frequency at PFC:67KHz PWM:   134KHz

    Standards And Certifications:   UL Recognized

    UL Compliance Number:   E183223

    Cooling method:   Natural cooling air convection

    Overload protection:   105% - 150% rated power,  automatic recovery

    Over-voltage protection:   105% - 150% of the rated voltage

    Protection type:   Shut off o/p voltage, clamping by zaner diode

    Over Temperature:   U1 Tj 140℃ typically (U1) detect on main control IC

    Protection type:  shut down o/p voltage, recovers automatically after temperature goes down.



    MeanWell Specifications

     AC input range selectable by switch 110V/220V

     Protections: Short circuit / Overload / Over voltage/Over temperature

     Forced air cooling by built-in DC fan

     Withstand 300vac surge input for 5 second

     Built-in cooling Fan ON-OFF control

     Built-in constant current limiting circuit

     100% full load burn-in test

     LED indicator for power on

     Fixed switching frequency at 90KHz

     Low cost,high reliability

     3 years warranty



    More product specification, pls see MeanWell website: http://www.meanwell.com/productSeries.aspx
