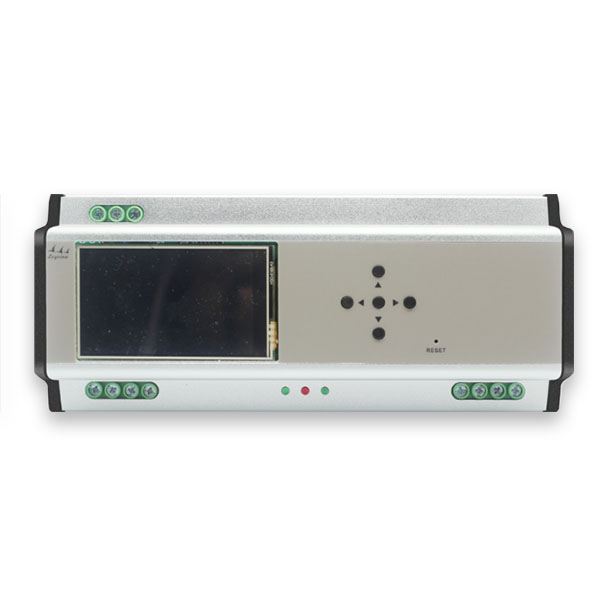

AC96-220V,LYE100 Centralized manager EDX signal DMX512 decoder controller for home lighting led tape lights, led bulbs, led tube lights

AC96-220V,LYE100 Centralized manager EDX signal DMX512 decoder controller for home lighting led tape lights, led bulbs, led tube lights

Model: DMX100E-LYE100

$2,699.98

Free Shipping Worldwide On Order Over $199

Please Choose:

Output:



Input:



Input Voltage:



Applies to:



Qty Discounts Off Price
1-4
$2,699.98
5-29
$2,429.98
30-49
$2,159.98
50+
$1,889.99
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Summarize of the produce

    This product through EDX interface connected to the scene panel, through DMX - 512 interface and DMX dimmer or switch controller connection, network interface provides remote online and setting function.Main features:

    1.1 Output DMX-512 signals, can control 512 circuit, and through DMX OUT monitoring 1.2 function to test circuit state.

    1.3 Can set up model of guest rooms and public space/can set the password protection function

    1.4 Can match ECP series control panel

    1.5 Can store 896 set of scenarios, each group can control 512 circuit scene

    1.6 Can set up if receive DMX signals

    1.7 Can be set 128 areas, suitable for all kinds of places

    1.8 Can be used to match figure control software

    Product specification Download



    Standards and Certifications





    Technical Parameters

    Working voltage :AC90-260V;

    Working temperature:-20-60℃;

    Working consumption:Min 5.7W – Max 6.4W;

    Display resolution :400x240;

    Control mode: resistive touch and buttons

    Input:EDX signal;

    Output:DMX512 signal;

    External dimension:200*90*61MM

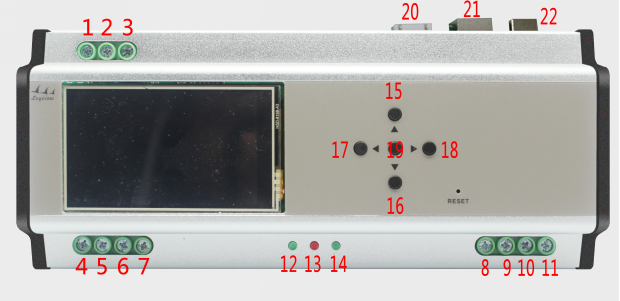

    Interface Specifications

    Serial number

    function

    serial number

    function

    1

    The alternating current  input

    12

    Input signal light

    2

    The alternating current  input

    13

    power light

    3

    The alternating current  input

    14

    Input signal light

    4

    12V power output

    15

    Increase button

    5

    EDX signal  A

    16

    Reduce button

    6

    EDX signal B

    17

    Turn back button

    7

    GND

    18

    Turn front button

    8

    12V

    19

    Confirm button

    9

    DMX Signal A

    20

    Program download interface

    10

    DMX Signal B

    21

    Internet access interface

    11

    GND

    22

    USB

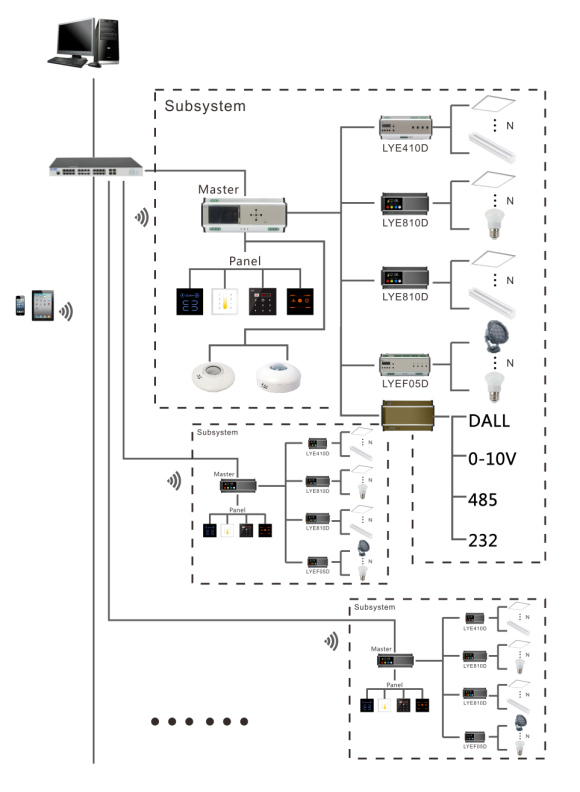

    Configuration Diagram

    Attention matters

    Connect the load line, and then connect the power cord;Before power on to ensure no short circuit between input and output cables.

    Power supply voltage ranger for controller DC12 ~ 24 v , the over voltage range may burn out the controller.
