DC12-24V 12A, Universal New Style grouping RF Wireless Touch Panel Remote LED Controller color temperature controller for LED Lighting
  • DC12-24V 12A, Universal New Style grouping RF Wireless Touch Panel Remote LED Controller color temperature controller for LED Lighting
  • DC12-24V 12A, Universal New Style grouping RF Wireless Touch Panel Remote LED Controller color temperature controller for LED Lighting
  • DC12-24V 12A, Universal New Style grouping RF Wireless Touch Panel Remote LED Controller color temperature controller for LED Lighting
  • DC12-24V 12A, Universal New Style grouping RF Wireless Touch Panel Remote LED Controller color temperature controller for LED Lighting
  • DC12-24V 12A, Universal New Style grouping RF Wireless Touch Panel Remote LED Controller color temperature controller for LED Lighting
  • DC12-24V 12A, Universal New Style grouping RF Wireless Touch Panel Remote LED Controller color temperature controller for LED Lighting

DC12-24V 12A, Universal New Style grouping RF Wireless Touch Panel Remote LED Controller color temperature controller for LED Lighting

Model: CONCCT-RF-6

Starting at: $25.99

DHL Free Shipping On Order Over $199

Please Choose:



Operating Voltage :



Applies to:



Qty Discounts Off Price
1-4
$25.99
5-9
$25.47
10-14
$24.69
15+
$23.65
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    This 2.4GHz color temperature dimmer controller Controling dual white (warm white - cool white) led strip lights up to four different zones, change the color temperature, dim/brighten the lights Low power consumption, long distance transmission, and strong anti-interference ability ,high speed telecommunications, etc

    Effective receiving distance nearly 30m, Capacitive touch screen design makes the remote easy to use.

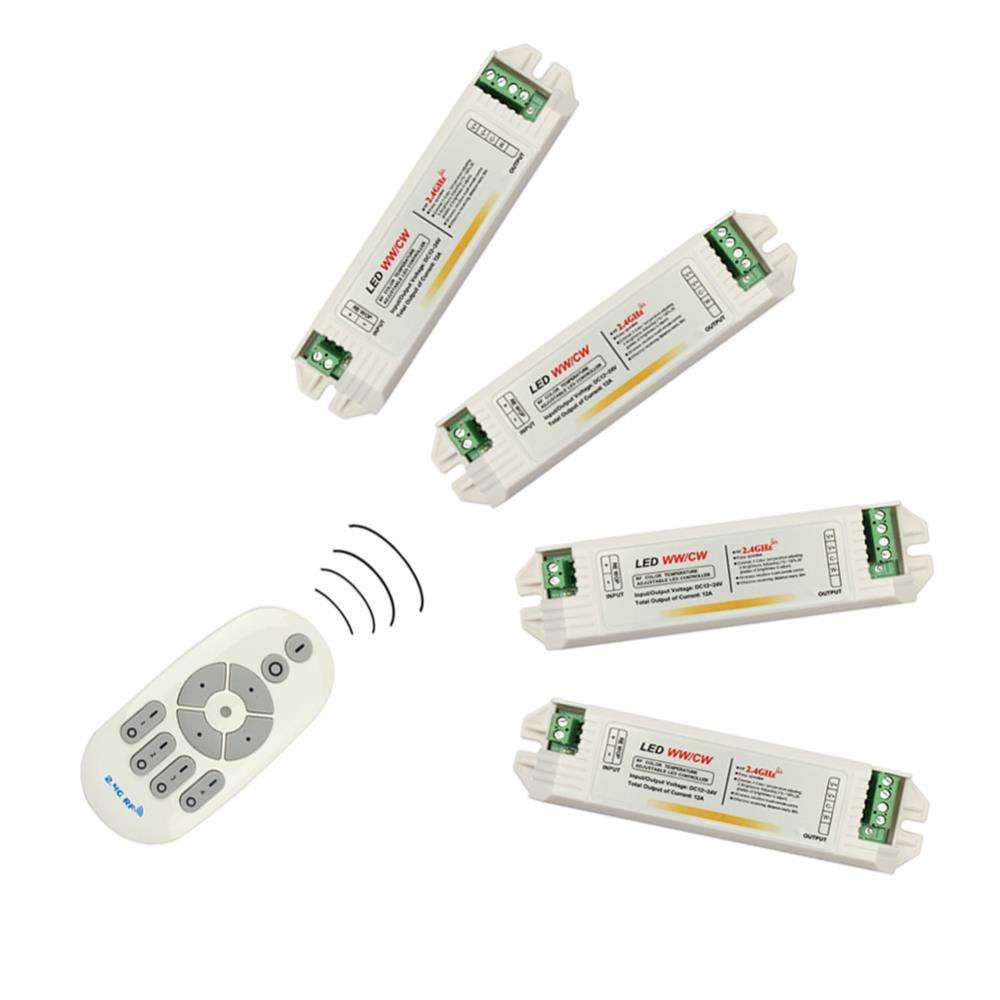

    4-Zone Dual White Remote Controller

    The remote looks fashionable and elegant, with simple and practical functions of brightness dimming, the capacitive touch screen design makes the remote easy to use. It can control the dual white (warm white- cool white) led lights up to four different zones. It control the intensity and color temperature in all groups


    Standards and Certifications





    Product Specification

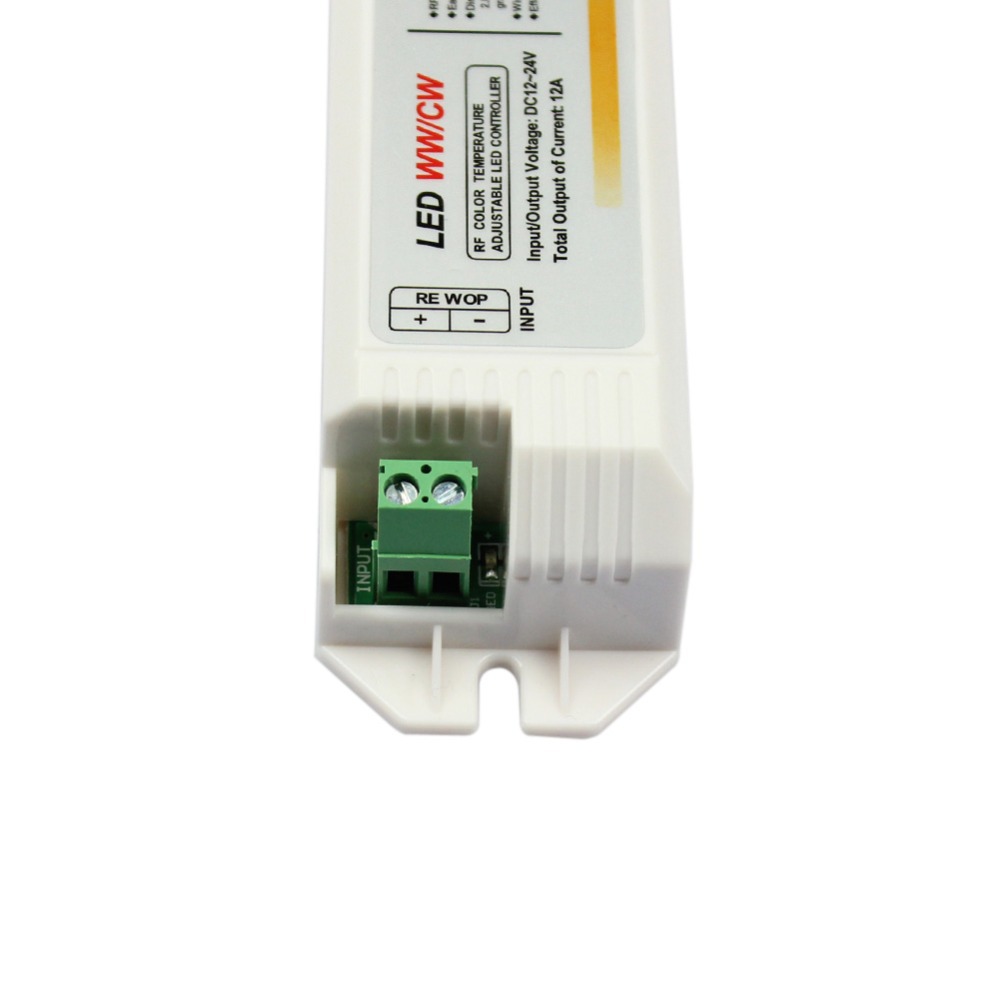

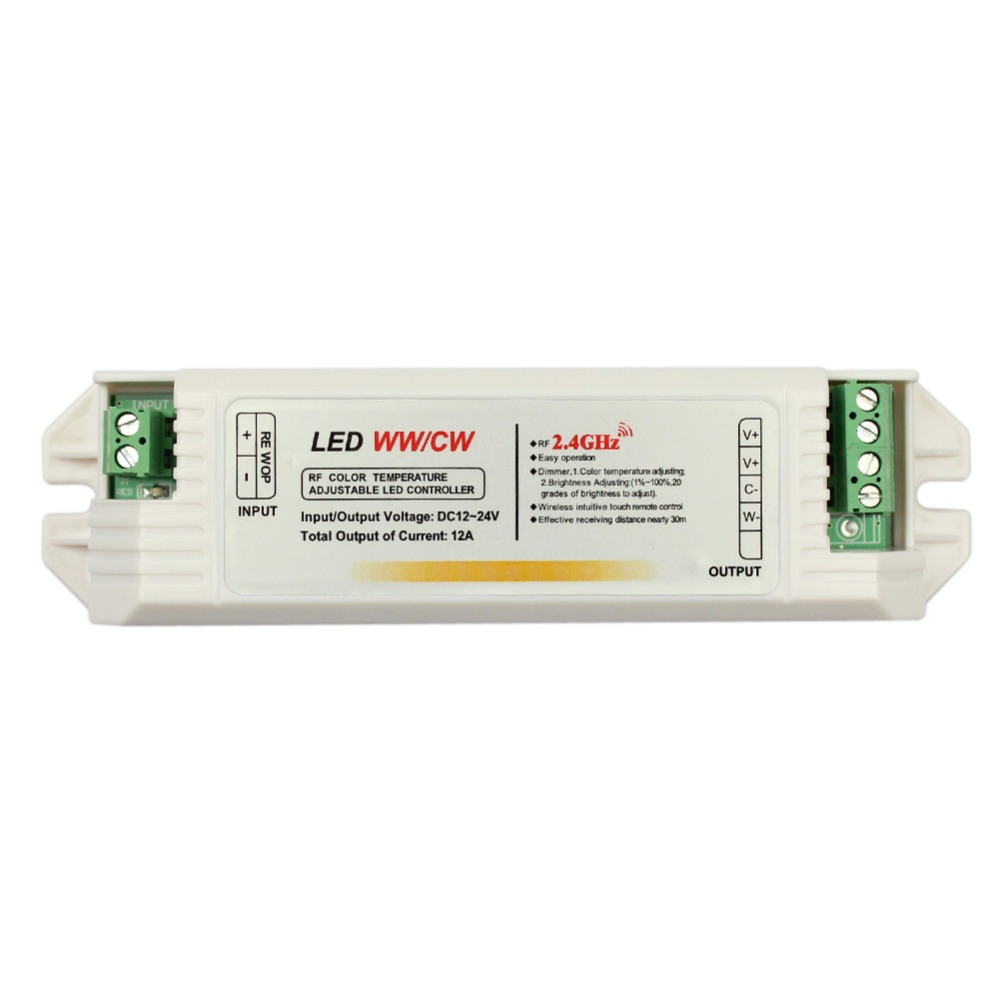

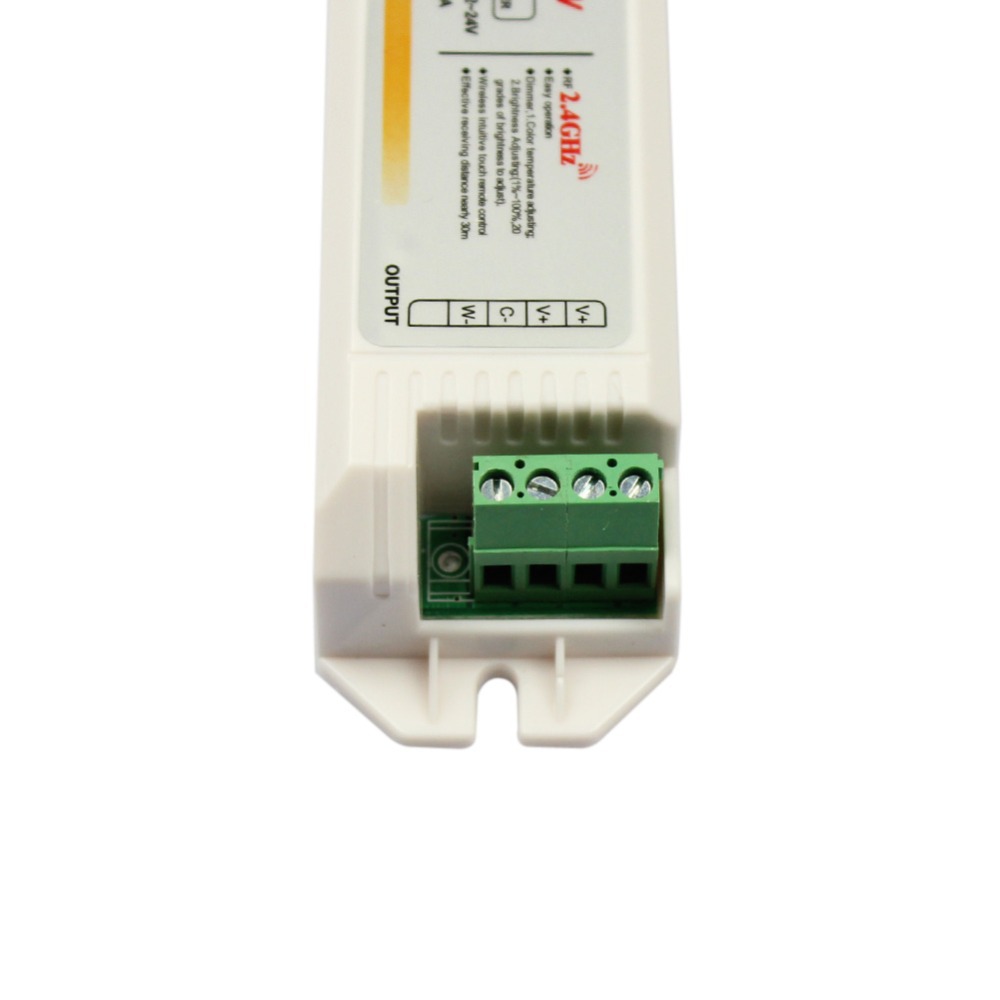

    Controller

    • Size:   85*45*23mm

    • Working voltage:   DC 12V ~ 24V

    • Max Current:   12A

    • Output connection:   Common Anode(+)

    • Control distance:   30 meters

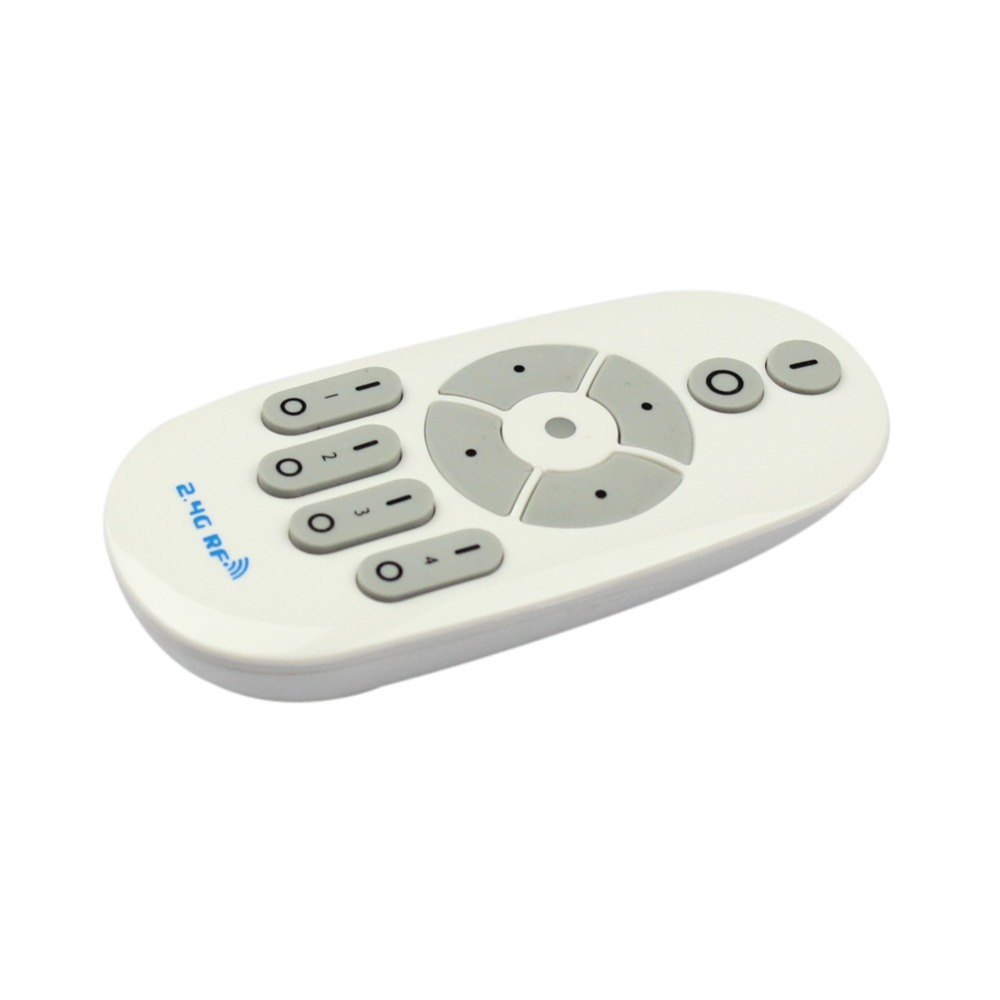

    Remote Control

    • Size:   120*52*20mm

    • Power:   AAA battery*2pcs (not including)

    • Material:   ABS

    • Fabrication processing:   Multicolor printing & UV varnish

    • Functions:   color temperature changing and brightness dimming

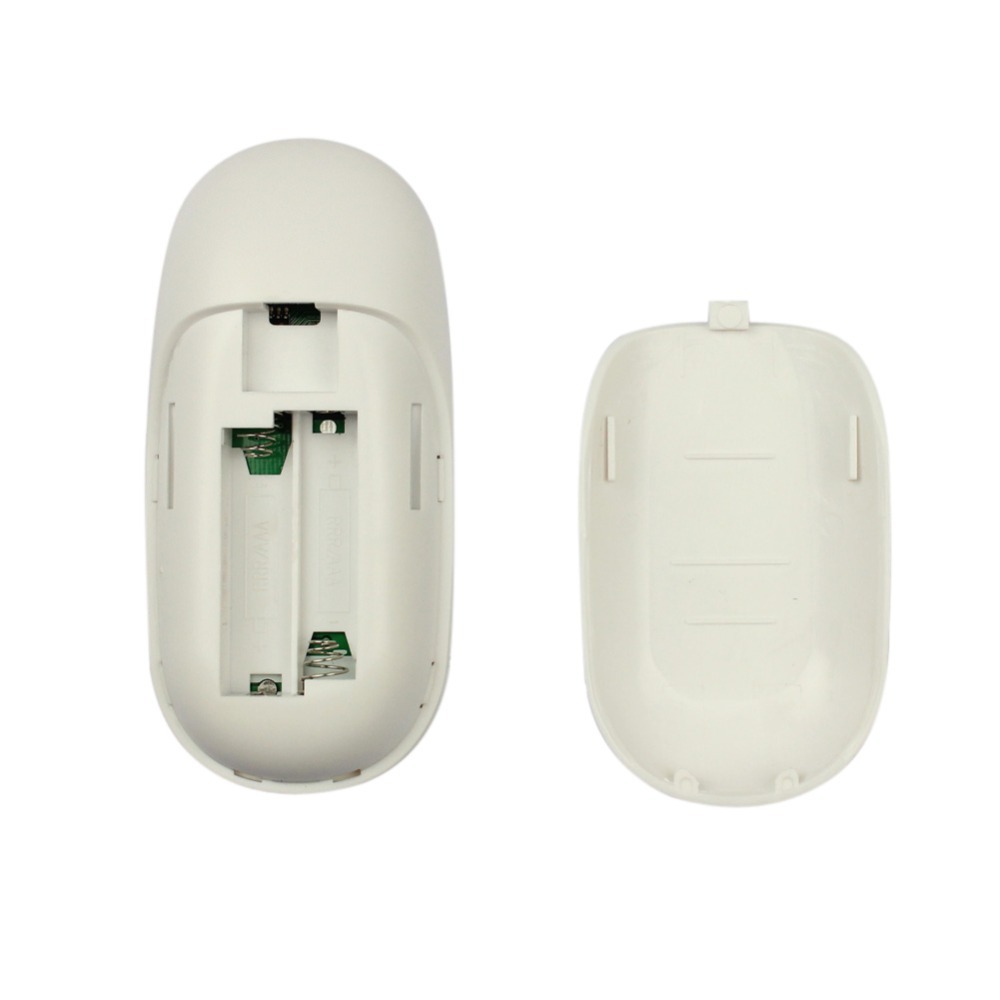

    Installation Battery of The Remoter

    This remoter is used 2pcs AAA batteries ,each voltage is 1.5V.

    Open the cover of the battery;load 2 pcs AAA batteries correctly as per the positive and negative instructions in the battery pack.

    Notice:

    If the indicator lights on the remote controller flash regularly without touch,please note the battery should be changed.



    For occasions

    Interior decoration, hotel, shopping mall and square, restaurant, bar and home. Building decoration, business place, airport, subway station.

    Outdoor decoration: billboards, park, bridge, road transport, tourist attractions.

    Other: sample reveals ark decoration and other places need RGB lamps and lanterns.



    Remarks

    1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

    2. Power supply voltage range is DC12~24V, more than voltage range maybe burn out the controller.

    3. When not use touch remote control for long time, we suggest you to take down the batteries.

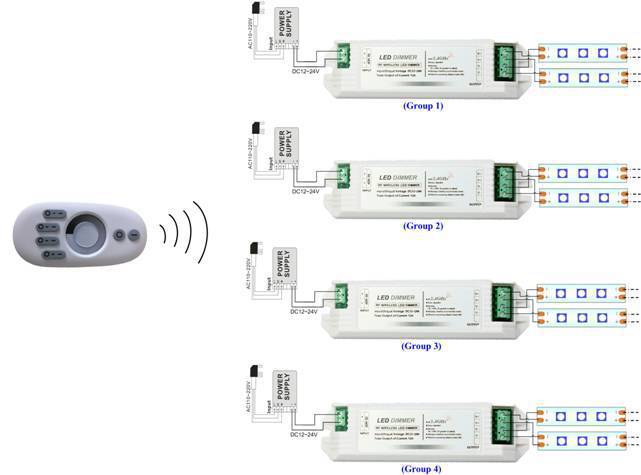

    Connection Diagram





    Package Included

    1 X SUPERNIGHT 4-Zone Remote Controller

    1 X control box

    1x  Piece of User's Manual
