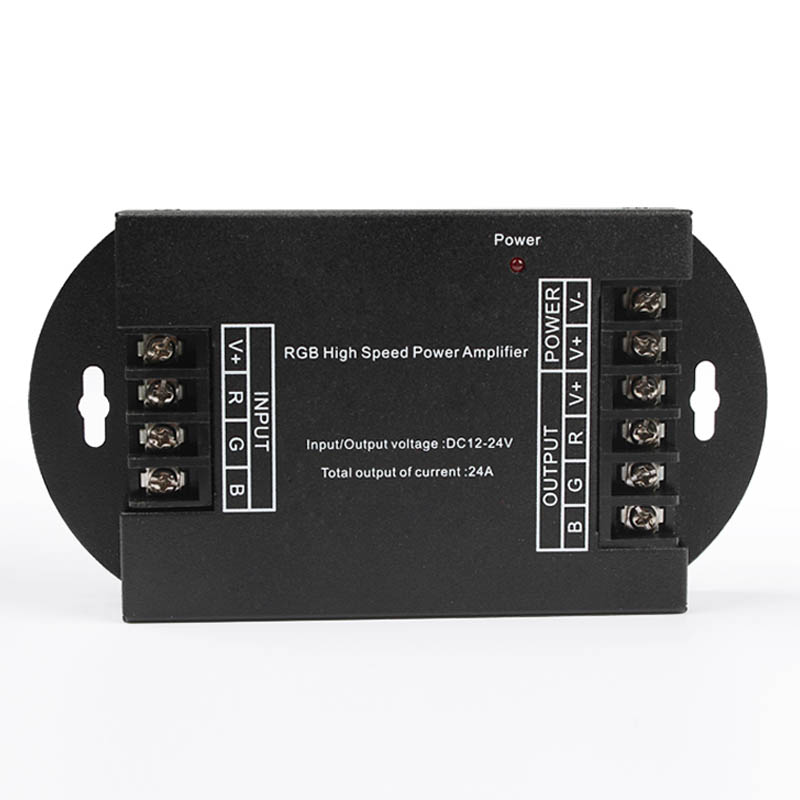

DC12/24V 8Ax3CH Max8A, PWM LED RGB High Speed Power Data Signal Amplifier iron shell For RGB LED Light Strip

DC12/24V 8Ax3CH Max8A, PWM LED RGB High Speed Power Data Signal Amplifier iron shell For RGB LED Light Strip

Model: CONAMP-RGB-5

$17.99

DHL Free Shipping On Order Over $199

Please Choose:

Operating Voltage :



Applies to:



Qty Discounts Off Price
1-4
$17.99
5-9
$17.63
10-14
$17.09
15+
$16.37
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project
    Product Description
    Function
    Amplify the red, green, blue three group signal of 3 channel controller, improve the system with load capacity, and has minimal delay, but can keep synchronism in cascade.
    The outlet should be connected correctly according to the color shown in the wiring diagram.
    Can't be wrong attached, in order to avoid short-circuit.

    Standards and Certifications



    Specification
    Working temperature:-20-60℃
    Input voltage:DC12-24V
    Signal voltage: DC 12V-24V
    Input signal: RGB common anode PWM dimming signal
    Dimension: L145*W76.8*H20.6mm
    Output:3 channel
    Connection mode: Common anode
    Output current: max 8A (each channel) Output power: max 288W(12V), max 576W(24V)
    Delay time: 20NS
    Dimming range: 0.1%-100%
    Net weight: 130g
    Gross weight: 150g
    Packing size: L155Χ W85 Χ H26 mm
    Connect terminal: screw connect mode, terminal caliber 7mm
    Output current: <24A
    Output power: 12V:<288W, 24V:<576W

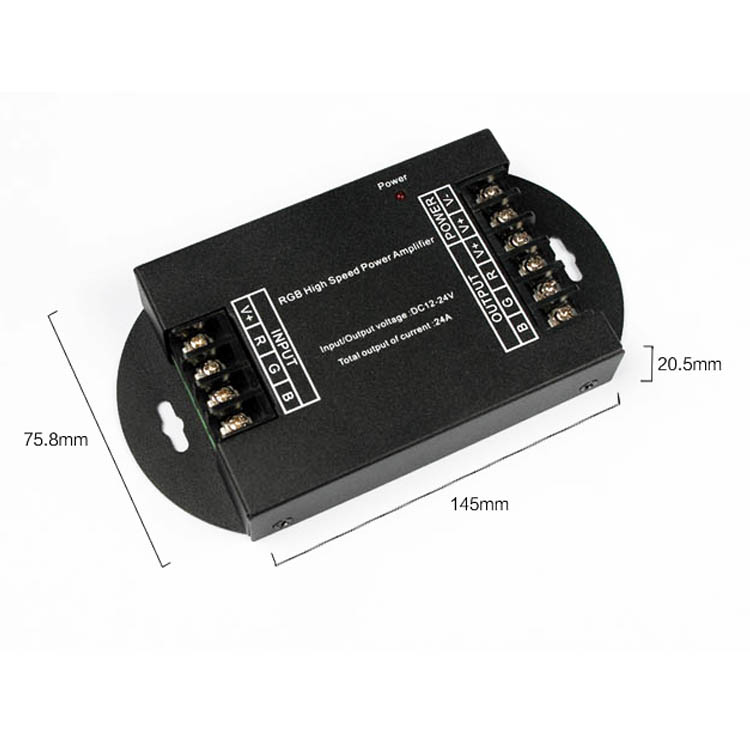

    External size :

    Mode of connection

    Technical Application



    Package included:
    1pc * RGB high speed power Amplifier
    1pc * LEDENET Logo Cleaning Cloth
