DC12/24V Max 18A 6Ax3CH, Universal Control Touch Panel LED Wireless RF Remote Controller For Single Color Led Strips
  • DC12/24V Max 18A 6Ax3CH, Universal Control Touch Panel LED Wireless RF Remote Controller For Single Color Led Strips
  • DC12/24V Max 18A 6Ax3CH, Universal Control Touch Panel LED Wireless RF Remote Controller For Single Color Led Strips
  • DC12/24V Max 18A 6Ax3CH, Universal Control Touch Panel LED Wireless RF Remote Controller For Single Color Led Strips
  • DC12/24V Max 18A 6Ax3CH, Universal Control Touch Panel LED Wireless RF Remote Controller For Single Color Led Strips
  • DC12/24V Max 18A 6Ax3CH, Universal Control Touch Panel LED Wireless RF Remote Controller For Single Color Led Strips

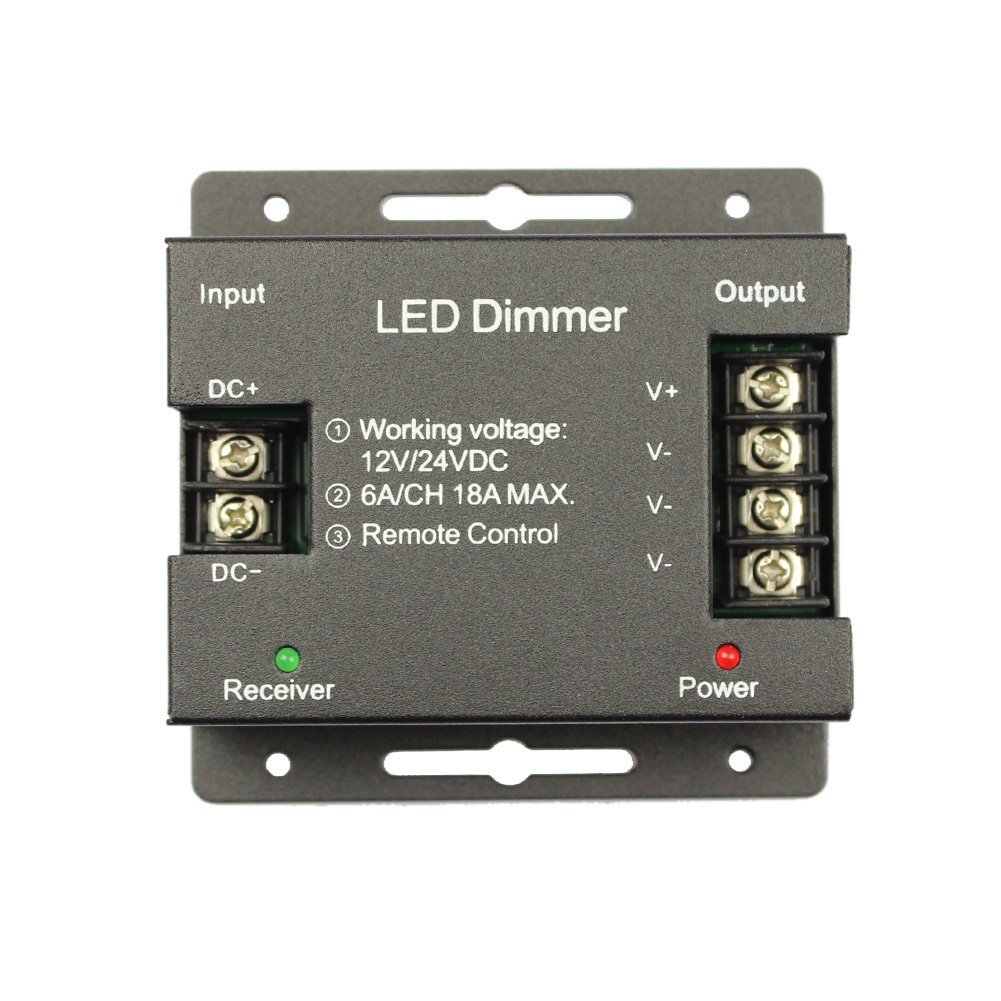

DC12/24V Max 18A 6Ax3CH, Universal Control Touch Panel LED Wireless RF Remote Controller For Single Color Led Strips

Model: CONSC-RF-02

$23.99

DHL Free Shipping On Order Over $199

Please Choose:

Operating Voltage :



Applies to:



Qty Discounts Off Price
1-4
$23.99
5-9
$23.51
10-14
$22.79
15+
$21.83
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

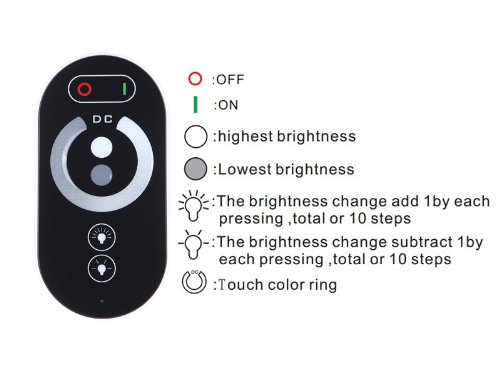

    Universal Touch Panel Screen 12/24V 6A LED Dimmer Wireless RF Remote Controller for Single Color 3528/5050 Led Strip. Auto adaptation of 12-24V DC working voltage and with input polarity protection function. The newest PWM(Pulse Width Modulation) control technology, delicate light performance, no flicker, Wireless RF control, free direction and long distance, more than 20 m. Visible color wheel, touched by finger, then What you see is What you get, Capacitance and wireless touch technology, no mechanical wear, overcoming the lifespan problems caused by Physical buttons. Particularly, there is a sense light in the remote control center. It shows the exactly color which been touched. As the led strip is the same. Further, there are 9 dynamic modes in the mode button, and the speed is adjustable. In order to achieve the synchronization of more lamps, single color Amplifier can be used. High power dimmer control MOS tube with stable and reliable performance, strong. power-drive ability with 18A max. 6A of 3 channels.

    All our products have been carefully selected and they are same as the picture which you see on our store. Smart appearance, standard input and output port, easy installation and high cost performance. CE UL and FCC approved.


    Standards and Certifications





    Product Specification

    Item Type:   LED Strip Dimmer Controler

    Use customized:   Yes

    Features:   Wireless

    Applicable Lights:  3528 / 5050 Single color LED Strip

    Warranty:   3 years

    Working Temperature:   -20 ~ +60°C

    Material:   ABS plastic & SUS304 metal

    Controled Method:   RF Remote

    Remote Distance:   20meter at open area

    Input voltage:   DC12~24V

    Power:   216W/432W

    Radio Frequency:   433MHz

    Controlable distance:   >20m

    Remote controller battery:   AAA battery x 3pcs ( not included )

    Controller Size ( L X W X H ):   about 83 x 82 x 33mm

    Remote controller dimension( L X W X H ):   about 114 x 56x 19mm

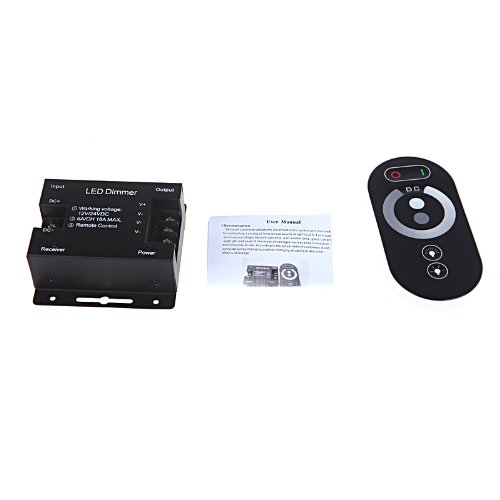

    Package Includes:   1 x LED Controller    1 x IR Remote Control   1 x User Manual

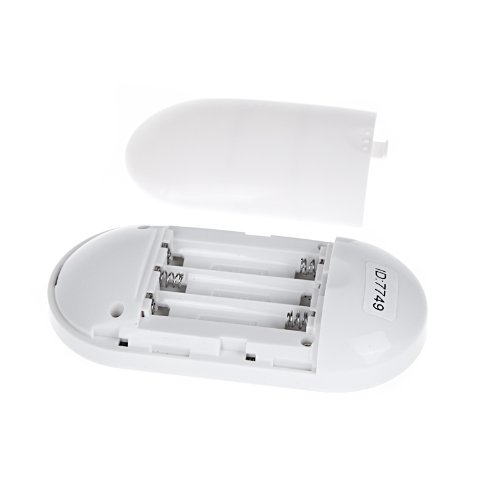

    Installation Battery of The Remoter

    This remoter is used 3pcs AAA batteries ,each voltage is 1.5V.

    Open the cover of the battery;load 3 pcs AAA batteries correctly as per the positive and negative instructions in the battery pack.

    Notice:

    If the indicator lights on the remote controller flash regularly without touch,please onte the battery should be changed.



    For occasions

    Construction decoration: commercial buildings, airports or subways.

    Indoor decoration: hotels, shopping malls, squares, restaurants, bars, houses.

    Outdoor decoration: advertising boards, parks, bridges, roads and overpasses, scenic spots.

    Others: decorating for motor vehicles, the places needing RGB lights.

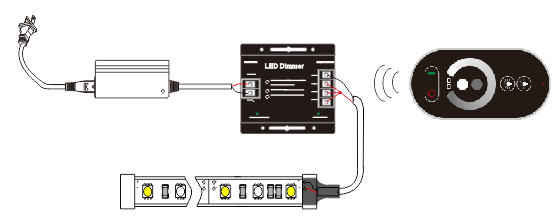

    Installation Instructions

    Touch Panel Screen DC12V-24V 6A LED Controller Dimmer Wireless RF Remote Controller For Single Color Led Strip Installation drawing.png

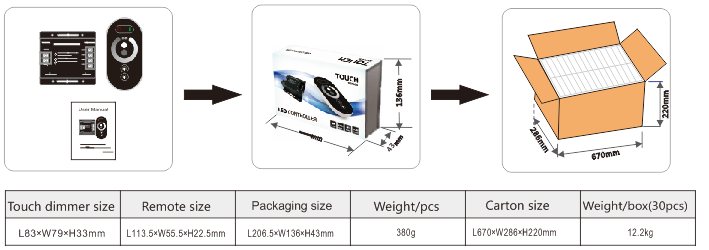

    Packaging
    Touch Panel Screen DC12V-24V 6A LED Controller Dimmer Wireless RF Remote Controller For Single Color Led Strip packaging.png



    DC12/24V Max 18A 6Ax3CH, Universal Control Touch Panel LED Wireless RF Remote Controller For Single Color Led Strips

    DC12/24V Max 18A 6Ax3CH, Universal Control Touch Panel LED Wireless RF Remote Controller For Single Color Led StripsDC12/24V Max 18A 6Ax3CH, Universal Control Touch Panel LED Wireless RF Remote Controller For Single Color Led StripsDC12/24V Max 18A 6Ax3CH, Universal Control Touch Panel LED Wireless RF Remote Controller For Single Color Led StripsDC12/24V Max 18A 6Ax3CH, Universal Control Touch Panel LED Wireless RF Remote Controller For Single Color Led StripsDC12/24V Max 18A 6Ax3CH, Universal Control Touch Panel LED Wireless RF Remote Controller For Single Color Led Strips
