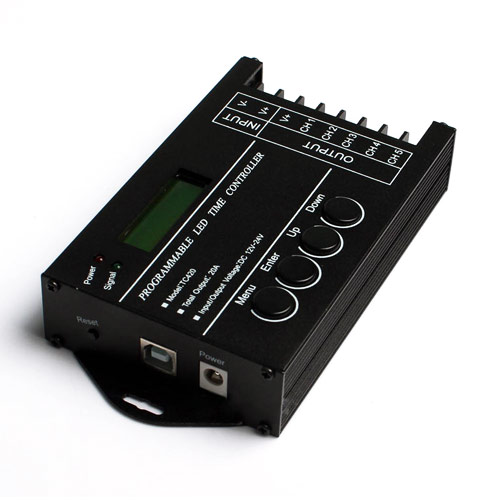

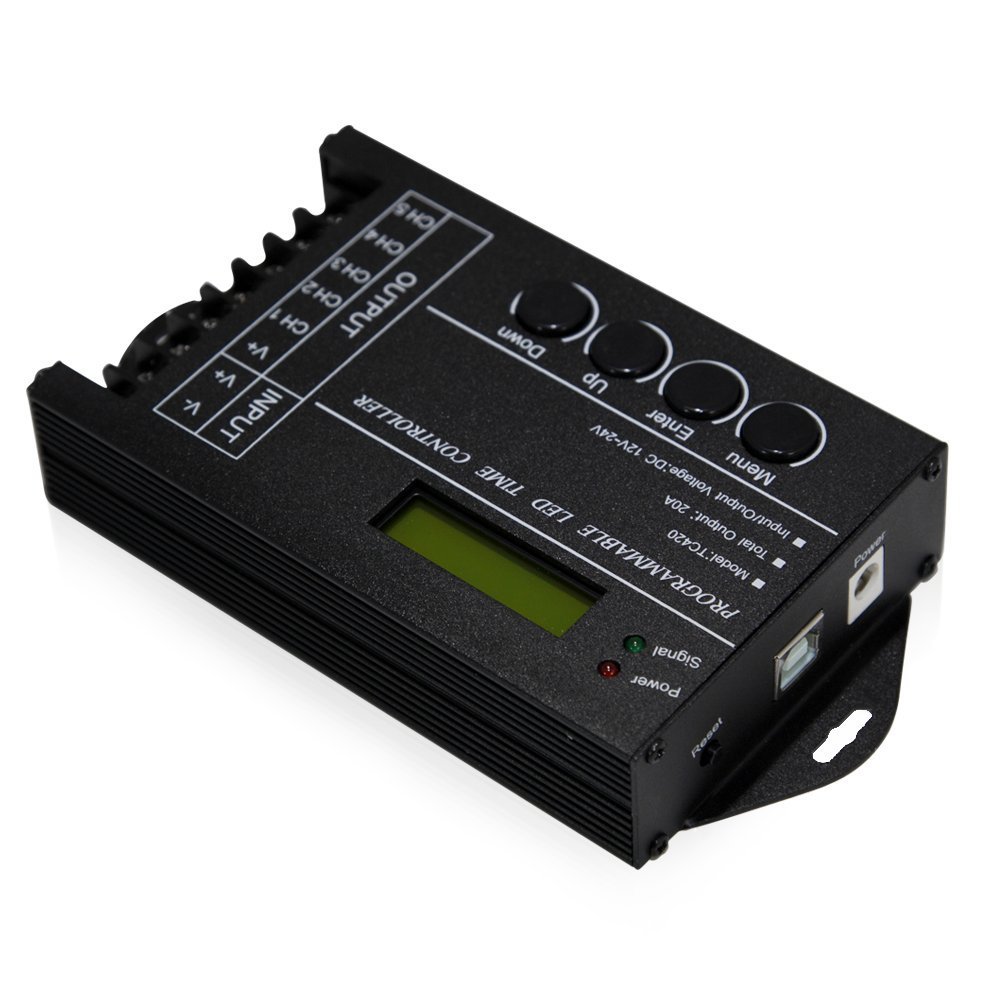

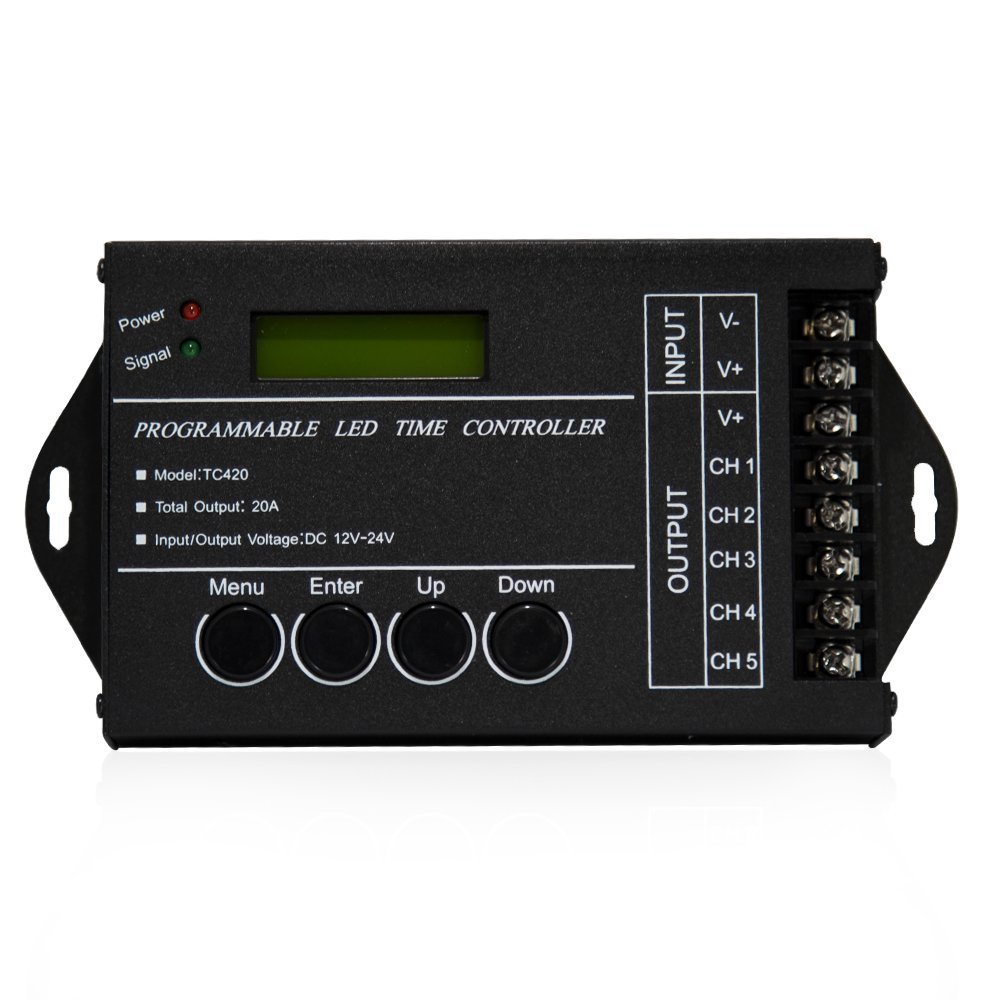

DC12/24V,20A 5 Channel Multi-function programmable LED Time Controller for RGB RGBW Single Color LED Lighting

Model: CONFULL-RF-8

$39.99

DHL Free Shipping On Order Over $199

Please Choose:

Operating Voltage :





Qty Discounts Off Price
1-4
$39.99
5-9
$39.19
10-14
$37.99
15+
$36.39
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Here is an upper computer in the programmable time controller to make the load output change over time, the customer may customize schedule mode they want through the upper PC. Then through the USB port to download required schedule to the controller.The upper PC in addition to the function of editing schedule mode ,it also can be setup time for the controller because of synchronous clock function of upper host. Because there is no delete function of the upper host ,so the mode name display space will come into blank as long as you execute delete. If user want to see the schedule mode effect after editing , they can use fast sowing function of upper. This controller can control load of led changing effect no more than five channels .And it can be used in the occasion of the plant lights, light box advertising, the stage, home decoration, etc.

    Product Specification Download



    Standards and Certifications





    Product Specification

    Controller case material:   Metal (black color)

    Working temperature:   -20-60° C

    Supply voltage:   DC12V-24V

    Static power consumption:   < 0.5W

    Net weight:   200g

    Gross weight:   300g

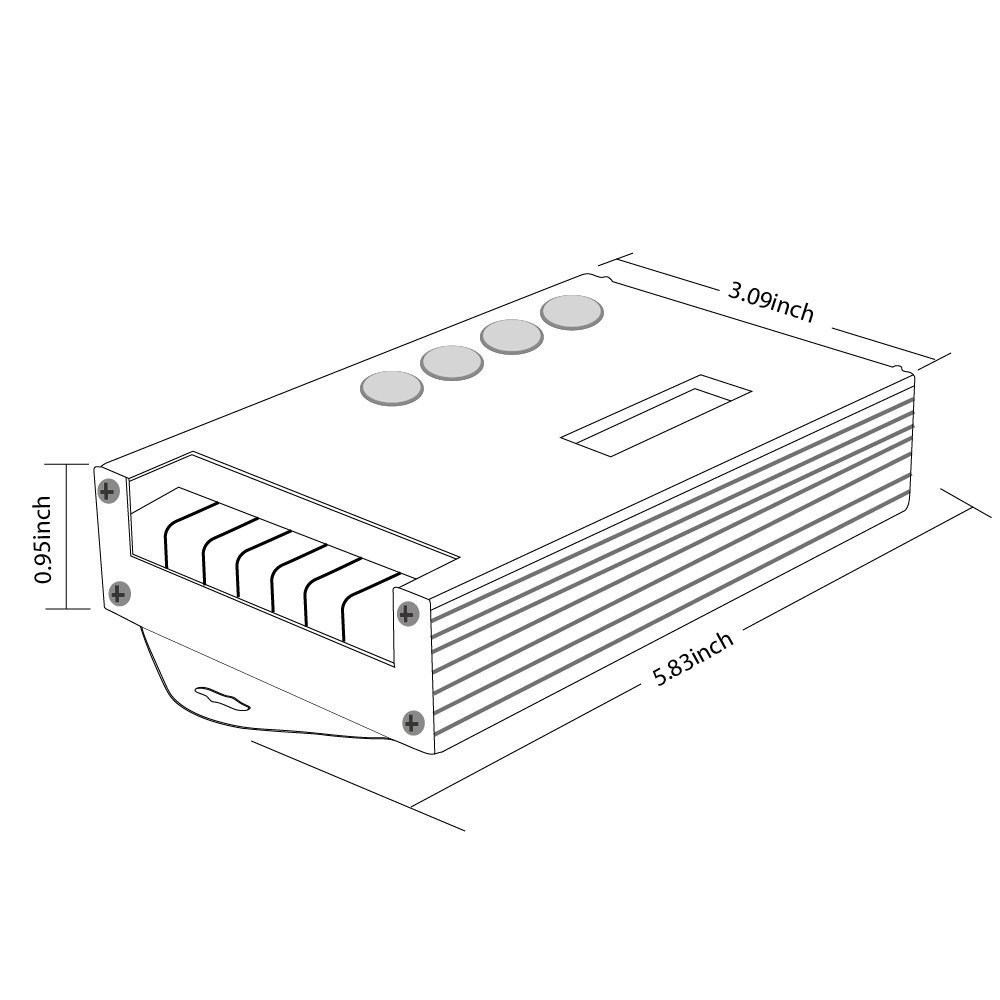

    External dimension:   120MM*69MM*24MM

    Packing size:   169MM*135MM*53MM

    Output:   5 channel

    Maximum output current:   20A



    Applications

    Aquarium LED strip timer

    Terrarium clock lighting

    Sunrise LED timer

    LED timetable for plant lighting

    LED growlight timer

    LED timer for public spaces / hotel lobbies

    LED Timer voor LED billboard lighting

    Shedule timer LED facade lighting



    Function instructions

    TC420 LED Time / Timer LED controller with extensive schedule timer for 5 channels. Through an easy to use smart Windows application (included on CD-ROM) you can set the timers for 5 outputs:

    For each timed channel the brightness of the light intensity. The LED time controller then plays the program with variable timed fade-in and fade-out transitions. You can create multiple programs for all 5 channels and upload it via USB to the LED timer controller.

    The 5-channel TC420 is suitable for both 12 and 24 volt power supplies and LED strips, 4 ampere per channel. Always choose a suitable power supply for this controller, depending on your LED strip configuration and power consumption.

    With 5 LED timer channels, the possibilities are endless. You can connect, for example:

    Five single color LED strips

    An RGB color LED strip + 2 single-color LED strips (eg. Warm white and cool white)

    An RGBW LED strip + a single color strip.

    For example, with the TC420 LED timer / controller LED time you can make a perfect sunrise / sunset program for every season, with custom colors or sunset times per season.




    Direction for use

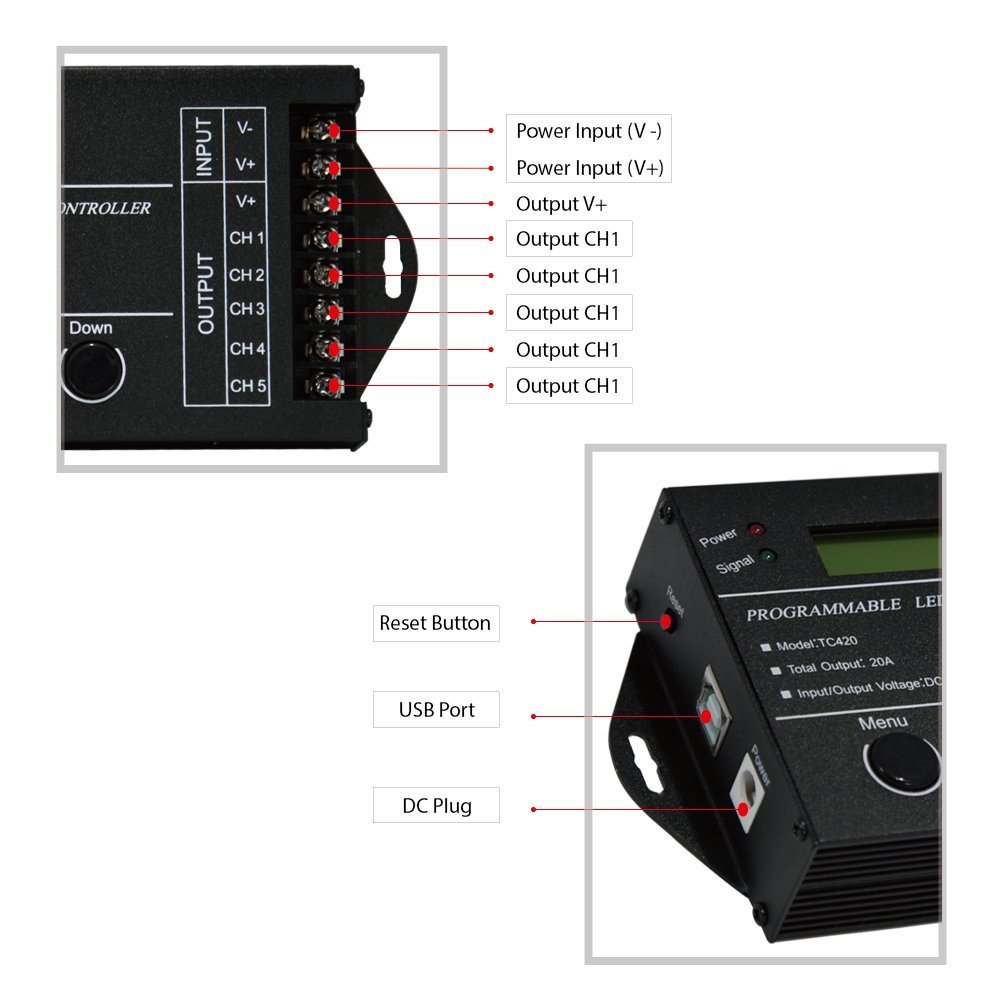

    1. Connect the load lines and power lines, make sure all connection correct before switch on the power.

    2. Insure there is no obstacle between the IR controller and the receiver when operating.

    3. This product should not be used in outdoor and any other humid environment. Do not touch water or any liquid. No impacting and knocking. Should not be used in high temperature and high pressure environment to avoid the product damage, and cause short-circuit, fire disaster and electric shock etc.

    4. The manufacturers will not be responsible for the product damage, property damage, personal injury, and any other losses which are caused by improper use. Direction for use

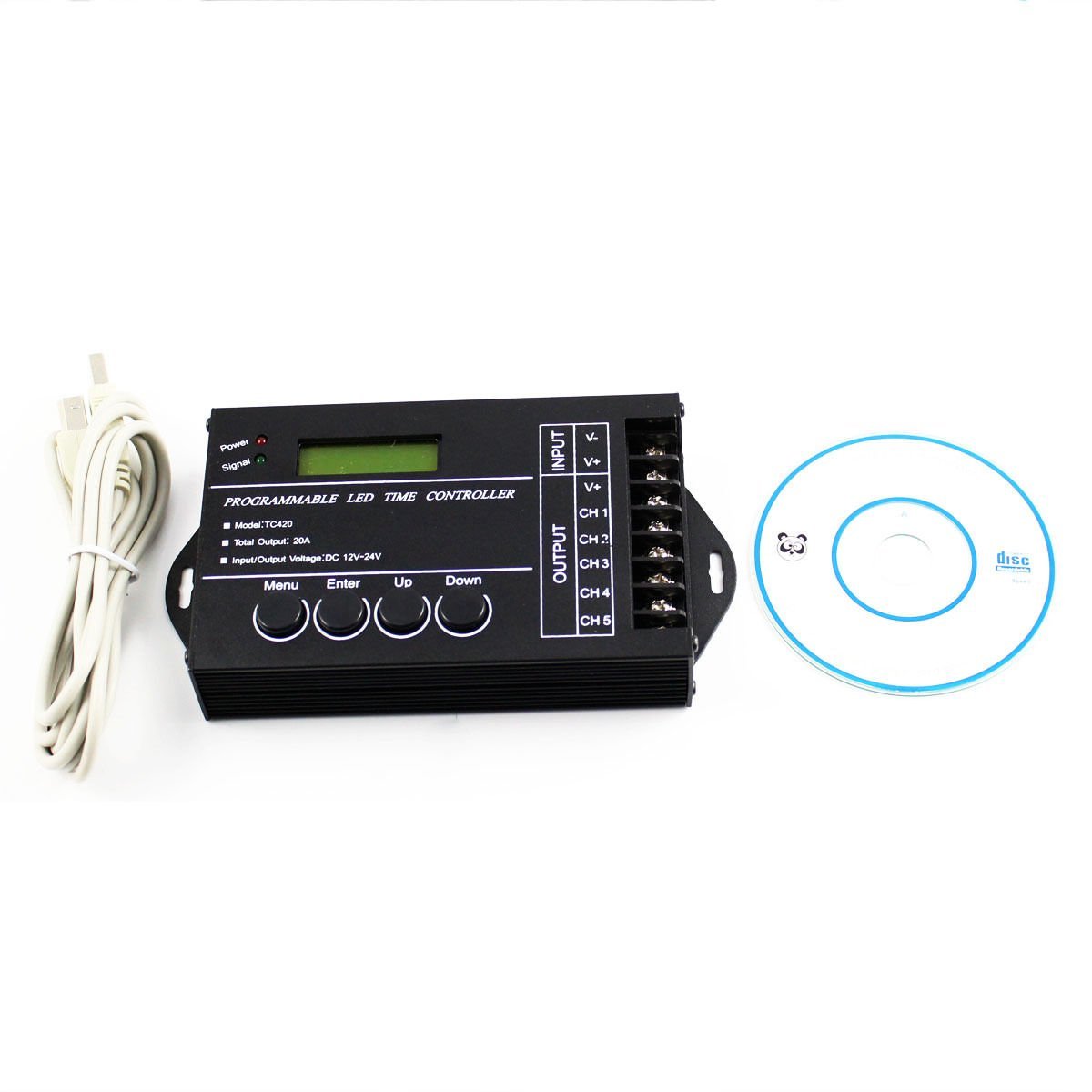

    Package including

    1 X Time Controller

    1 X CD program system

    1 X Mini usb cable

    1 X User Manual
