DC5/12/24V 10Ax3CH PWM LED RGB Signal Amplifier Black Iron shell For RGB SMD 3528 5050 LED Light Strip
  • DC5/12/24V 10Ax3CH PWM LED RGB Signal Amplifier Black Iron shell For RGB SMD 3528 5050 LED Light Strip
  • DC5/12/24V 10Ax3CH PWM LED RGB Signal Amplifier Black Iron shell For RGB SMD 3528 5050 LED Light Strip
  • DC5/12/24V 10Ax3CH PWM LED RGB Signal Amplifier Black Iron shell For RGB SMD 3528 5050 LED Light Strip
  • DC5/12/24V 10Ax3CH PWM LED RGB Signal Amplifier Black Iron shell For RGB SMD 3528 5050 LED Light Strip

DC5/12/24V 10Ax3CH PWM LED RGB Signal Amplifier Black Iron shell For RGB SMD 3528 5050 LED Light Strip

Model: CONAMP-RGB-4

$17.99

DHL Free Shipping On Order Over $199

Please Choose:

Operating Voltage :



Applies to:



Qty Discounts Off Price
1-4
$17.99
5-9
$17.63
10-14
$17.09
15+
$16.37
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Product Description

    This RGB Signal Amplifier rated at 10A per channel. This unit allows an unlimited number of RGB products operating from either 5V 12v or 24v DC to be operated by one source of control and allows much longer runs of RGB flexible strip to be operated by one controller, removing the risk of the RGB strip being damaged by high current draw that can be present when operating long runs of RGB tape. This RGB amplifier applies to all the voltage-controlled LED controller in our company,it can receives PWM(Pulse Width Modulation), each time add one RGB amplifier, the connecting number of led will be more than twice, in theory, numerous RGB amplifiers can be connected.

    Standards and Certifications



    Poduct Specification

    Type:   RGB Amplifier

    Standards And Certifications:   CE/FCC/ROHS Compliant

    Warranty:   3 years

    Color:   Black
    Size:   L110*W90*H25mm
    Shell Type:   Iron housing
    Net Weight :  260g
    Mode of Connection:   common anode
    Power Supply:   DC5/12/24V
    Input Type:   RGB 3 channels
    Output signal:   CV PWM
    Maximum Load Current:   10A X 3 channel (Max 30A)
    Maximum Load Power:   5V/150W,12V/360W,24V/720W
    Great for:   LED 3528 5050 RGB strip or moudle

     Direction for Use

    According to the silk-screen prompts on the panel of RGB amplifier, to connect input and output signal wires in order to ensure short circuit can not occur between wires,and then connect power for RGB amplifier,and RGB amplifier goes hand in hand with LED controller.

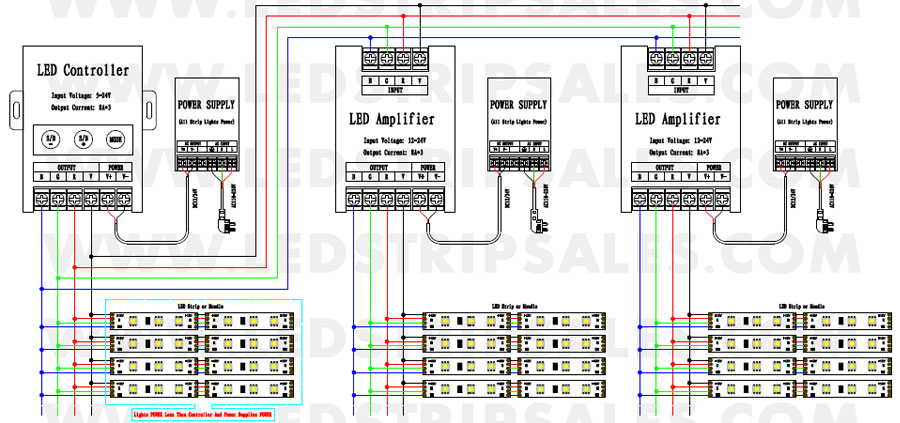

    Mode of connection

    For occasions

    1). All places where RGB light strips need to be extended when connecting.

    2). All places where the quantity of RGB lights need to be increased.

    3). All places where the color effects need to be changed as a whole in small scale.



       Safety Information

    1). Supply voltage of this product is 5~24 Volts DC, do not exceed.

    2). Shorting output wires my cause damage to amplifier.

    3). Always observe proper polarity when connecting power and load.

    4). For indoor use only – this product is not waterproof or weatherproof.
