DC5/12/24V 4Ax3CH, Mini LED RGB Amplifier 3CH Common Anode Fit For Color Change LED Light Strips

DC5/12/24V 4Ax3CH, Mini LED RGB Amplifier 3CH Common Anode Fit For Color Change LED Light Strips

Model: CONAMP-RGB-1

$4.99

Free Shipping Worldwide On Order Over $199

Please Choose:

Operating Voltage :



Applies to:



Qty Discounts Off Price
1-4
$4.99
5-9
$4.89
10-14
$4.74
15+
$4.54
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Product Description

    This DC5~24V small compact Mini series three channel RGB amplifier. Maximum 4 Amps per channel/12 Amps total. Used to increase the load capability and extend the signal of the universal RGB controllers. Required if exceeding the maximum load capability of any universal RGB controller. 12VDC operation. 2 x 4-pin RGB pigtail connectors included. Every add a amplifier, can connect double LED quantities.

    Standards and Certifications



    Product Specification

    Type:   RGB Amplifier
    Standards And Certifications:   CE/FCC/ROHS Compliant
    Warranty:   3 years
    Color:   White
    Craft materials:   PVC
    Operating Temperature:   -30~+75°C
    Working current:   12A
    Voltage:   DC12V
    Working power:   144W
    Cable length:   12cm
    Connection Mode:   4 pin needle
    Weight:   25g
    Dimensions:   L10.43 in x W0.47 in x H0.16 in (26.5 cm x 1.2 cm x 0.4 cm)
    Great for:   LED 3528 5050 RGB strip

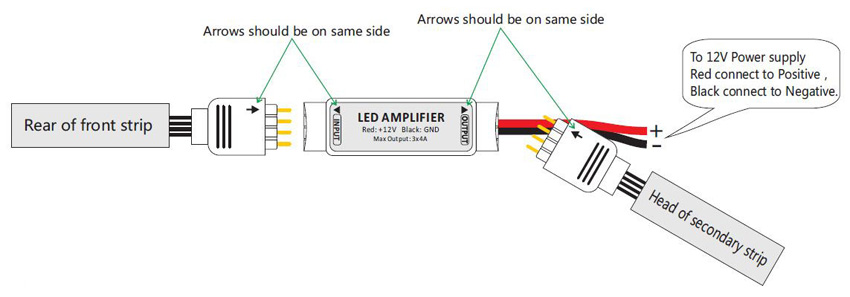

     Mode of connection


    Package Includes

    1 x LED RGB Amplifier

    1 x User manual

    Safety
    Supply voltage of this product is 12 Volts DC, do not exceed

    Shorting output wires my cause damage to amplifier

    Always observe proper polarity when connecting power and load
