DC9/12/24V Max 1x10A, Touch Panel 2.4GHz wireless RF grouping dimmers For Single Color LED Lighting
  • DC9/12/24V Max 1x10A, Touch Panel 2.4GHz wireless RF grouping dimmers For Single Color LED Lighting
  • DC9/12/24V Max 1x10A, Touch Panel 2.4GHz wireless RF grouping dimmers For Single Color LED Lighting

DC9/12/24V Max 1x10A, Touch Panel 2.4GHz wireless RF grouping dimmers For Single Color LED Lighting

Model: CONSC-RF-08

$29.99

Free Shipping Worldwide On Order Over $199

Please Choose:

Operating Voltage :



Applies to:



Qty Discounts Off Price
1-4
$29.99
5-9
$29.39
10-14
$28.49
15+
$27.29
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

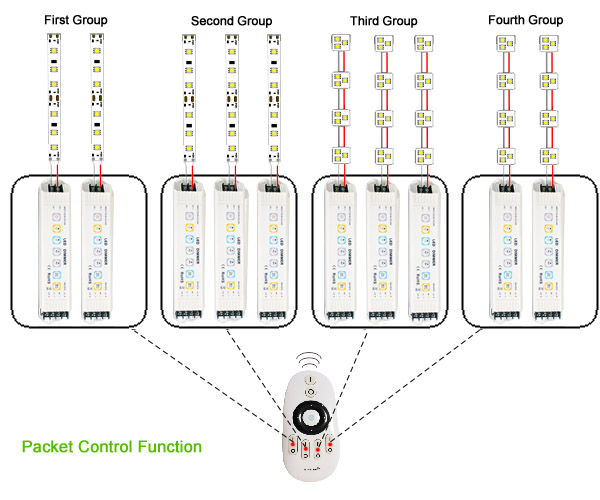

    This is Touch Panel DC9~24V 10A 2.4GHz wireless RF grouping dimmers controller for single color led lighting. Auto adaptation of 9-24V DC working voltage and with input polarity protection function. Adopt advanced PWM ,control technology, dimmer grayscale up to 1024 levels, dimmer effect smooth ,no flick. High power dimmer control MOS tube with stable and reliable performance, strong .power-drive ability with max. 15A of 3 channels. Wireless RF control, free direction and long distance, more than 20 m. Adopt 2.4G wireless remote control technology, support use configuration one-to-one, one-to-many, many-for-one method. Support independent control, uniform control, group control, with buzzer remind function when remote control. with brightness memory function. Novelty and elegant apperance , especially fit for home and commercial occasion.


    Standards and Certifications





    Product Specification

    Item Type:   LED Strip Grouping Dimmer Controler

    Applicable Lights:  Single color LED light strips, Bars, Module

    Warranty:   3 years

    Working Temperature:   -20 ~ +60°C

    Input Voltage:   DC9~24V

    Output power:   DC9V/90W~DC12V/120W~DC24V/240W

    Controled Method:   RF Remote

    Remote Distance:   20meter at open area

    Craft materials:   Plastic

    Remote controller battery:   AAA battery x 2pcs ( not included )



    Installation Battery of The Remoter

    This remoter is used 2pcs AAA batteries ,each voltage is 1.5V.

    Open the cover of the battery;load 2 pcs AAA batteries correctly as per the positive and negative instructions in the battery pack.

    Notice:

    If the indicator lights on the remote controller flash regularly without touch,please note the battery should be changed.



    For occasions

    Building decoration, business place, airport, subway station.

    Outdoor decoration: billboards, park, bridge, road transport, tourist attractions.

    Other: sample reveals ark decoration and other places need RGB lamps and lanterns.

    Interior decoration, hotel, shopping mall and square, restaurant, bar and home. Building decoration, business place, airport, subway station.

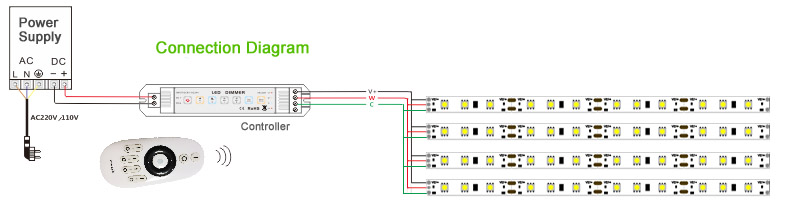

    Installation Instructions



    Packaging

    1 x led dimmers

    1 x RF Remote control
