Dual Row Super Bright Narrow Series DC24V 3014SMD 2400LEDs Flexible LED Strip Lights Industrial Lighting 16.4ft Per Reel By Sale

Dual Row Super Bright Narrow Series DC24V 3014SMD 2400LEDs Flexible LED Strip Lights Industrial Lighting 16.4ft Per Reel By Sale

Model: FSLDR-24V-3014X2400

Starting at: $125.98

DHL Free Shipping On Order Over $199

Please Choose:

PCB Width:





PCB Color :



Operating Voltage :





Qty Discounts Off Price
1-4
$125.98
5-9
$123.46
10-14
$119.68
15+
$114.64
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

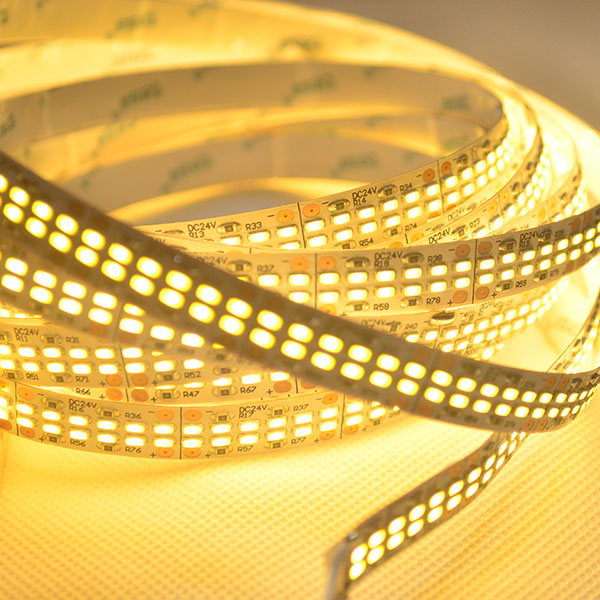

    Super slim dual row high-density single color super bright 3014 SMD(SMD:Surface Mounted Devices) Waterproof optional Flexible LED Tape strips, Epistar chip, 2400LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale.

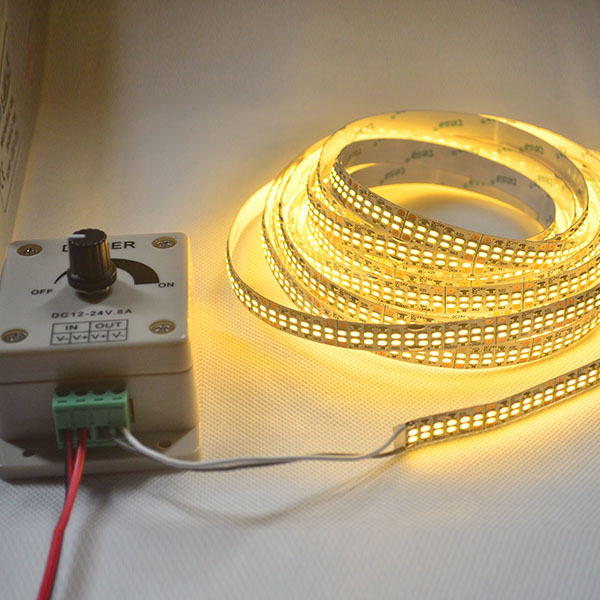

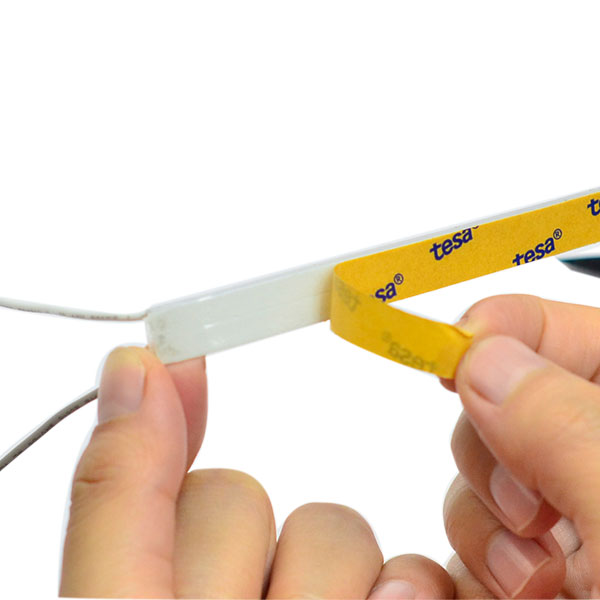

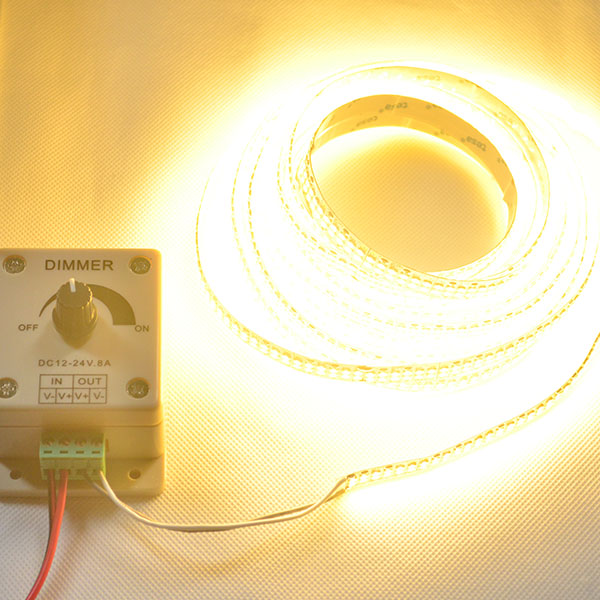

    Our brightest Flexible LED Solid Color light Strips soft and easy bended for installation. Available in 5 meter (197 in) Waterproof optional flexible light strips with adhesive backing and can be stuck just about anywhere(IP67 IP68 type which will come with mounting brackets). can be cut into 12-LED segments, so you could cut a different length for your project and request. The LED strips Suitable for the average home lighting as well as lighting professionals. 24V DC operation. Dimmable - See compatible LED dimmers



    Standards and Certifications




    Product Specification

    LED Strip Type:   SMD 3014  2400PCS/16.4ft

    LED Chip:   Super brights Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    Light Color:   Warm White, Daylight White,Cool White, RedGreen, BlueAmber (optional)

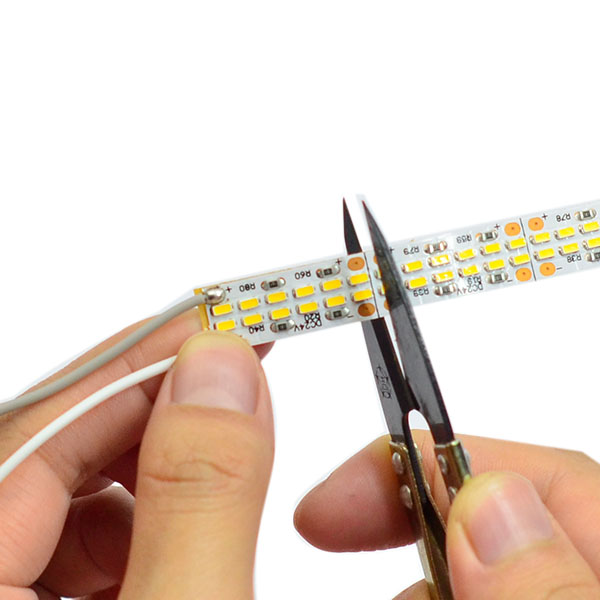

    Dimension:   16.4ft/roll, every 12 PCS LED can be cut

    LED Quantity:   480 LEDs per 1meter (3.28 ft)

    Lifespan:   50,000+hours

    Warantty:   3 years

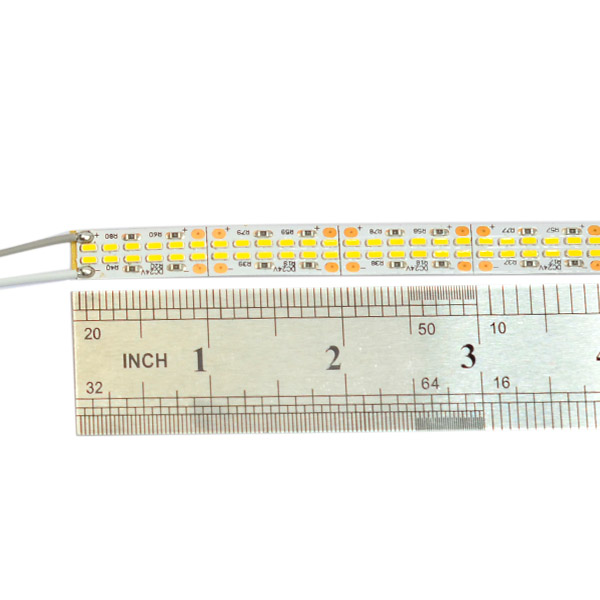

    Dimensions:     L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )

    Input Voltage(V):   24VDC

    Working Power:   7.25A 174/16.4ft  Max

    Lamp Luminous Flux(lm):   10~12lm/LEDs   28800lm/16.4ft

    Color Temperature CCT(White):  Warm White(2800-3500k), Daylight White(5000-7500k), Cool White(8500-11000k)

    Wavelength NM(RGBY):   Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)

    Beam Pattern:   120 degree

    Water Proof:   Non-Waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 optional

    CRI (Ra>):  82



    Color Temperature



    Applications

    1. Back lighting

    2. LED task Lighting

    3. Retail LED lighting

    4. Sign illumination LEDs

    5. Under cabinet lighting

    6. Display case and accent lighting



    Waterproof Level Description

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);

     IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

     IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);

     IP68 Waterproof (Highest level Waterproof, Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);
