Good quality LED-WiFi controller can use Android system or IOS system mobile phone control home led strip lighting , outdoor led lighting

Good quality LED-WiFi controller can use Android system or IOS system mobile phone control home led strip lighting , outdoor led lighting

Model: WIFI100

$36.98

DHL Free Shipping On Order Over $199
Qty Discounts Off Price
1-4
$36.98
5-9
$36.24
10-14
$35.13
15+
$33.65
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Summarization

        LED-WiFi controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest wifi technical in the market. It makes the LED control more convenience, more hommization. We can use an Android system or IOS system mobile phone to install control software, then it can control LED, this is the wishes of every customer.

    Use WiFi technology can make our control range more wider, can get rid of narrow space constraint, in building can control more than 50m, in outdoor can control more than 100m.

    In the condition of not use the mobile software, also can use the remote control to control, very convenience, bring many choices for you.



    Standards and Certifications




    Technical Parameters

    1. Remote control technical parameters

    1:Working temperature:-20-60

    2:Power supply method:AAA*3

    3:Supply voltage:1.5V*3

    4:Standby power:0.015mW

    5:Standby current:3uA

    6:Working current:200uA

    7:Emission current:10mA

    8:Remote control distance:about 20m

    9:Standby time:6 month



    2. Software technical parameters

    1:Name:Dream Color

    2:Runtime platform:Android version support Android system(better one can support

           Samsung, HTC), IOS version support IOS system, equipment must have WiFi function.

    3:Byte: Android version(622K)、IOS version(581K).

    4:Language: English

    5:Category: communications

    6:Free, green, no plug-ins

    3. Controller technical parameters

    1:Working voltage: DC5--24V

    2:Output control: can flexible control 3 channel, 2 channel, 1 channel LED lamps.

    3:Output current: 4A*3

    4:Connect mode: common anode

    5:External dimension: L107*W65*H30(mm)

    6:Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g

       OFDM(-15dBm)


    Specifications Download


    Typical Application
    1. Connect three channels LED instruction

    When connect three channels LED, you should put the Dream Color software switch to CD mode to use,only under this mode,you can control the LED's color,brightness and speed.Color disk adjust the color(Adjust process can be seen in the upper left corner R, G, B numerical with change),speed/brightness item adjust speed and bright("M"set the LED dynamic effect,"M"adjust the LED dynamic change.

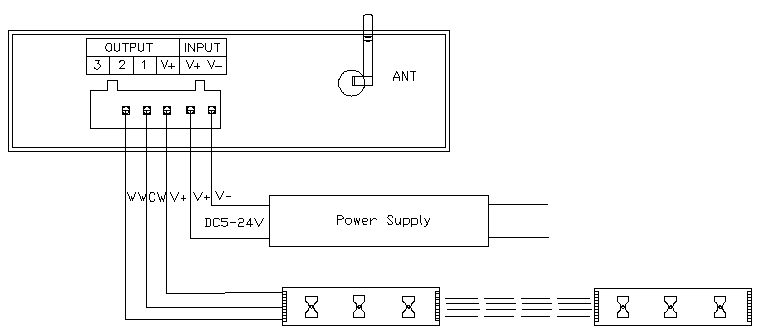

    2. Connect two channels LED instruction



    When connect three channels LED, you should put the Dream Color software switch to CD mode to use,only under this mode,you can control the LED's color temperature,brightness and color temperature shortcut key settings.Color disk adjust the color temperature(meanwhile top left CW,WW numerical with change),brightness item adjust bright,"M"key set the special color temperature state.


    3. Connect one channel LED instruction



    When connect three channels LED, you should put the Dream Color software switch to CD mode to use, under this mode, use color disk control the LED's brightness,Adjust process can be seen in the upper left corner NM numerical with change.


    Good quality LED-WiFi controller can use Android system or IOS system mobile phone control home led strip lighting , outdoor led lighting

    Good quality LED-WiFi controller can use Android system or IOS system mobile phone control home led strip lighting , outdoor led lighting
