Good quality LED-WiFi controller use Android system or IOS system mobile phone long distance control large-scale theater lighting ,song and dance halls lighting

Good quality LED-WiFi controller use Android system or IOS system mobile phone long distance control large-scale theater lighting ,song and dance halls lighting

Model: WIFI101

$36.98

DHL Free Shipping On Order Over $199
Qty Discounts Off Price
1-4
$36.98
5-9
$36.24
10-14
$35.13
15+
$33.65
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Product Summarize

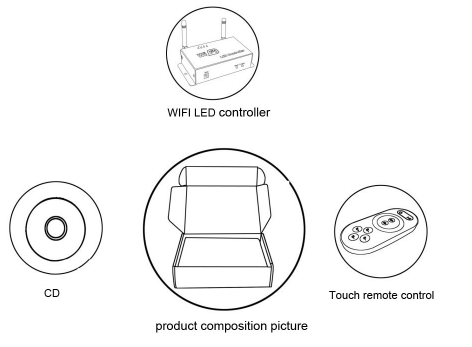

    1. Product constitute

    1. WF101 Controller

    It is the core of product, responsible for receive control signal and control LED equipment.

    2. RF remote control

    In the condition of not use the mobile phone as remote control, you can choose RF remote control to control LED.

    3. A disk

    Include IOS operating system and Android operating system mobile soft.



    2. Product summarize

        LED-WiFi controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest wifi technical in the market. It makes the LED control more convenience, more hommization. We can use an Android system or IOS system mobile phone to install control software, then it can control LED, this is the wishes of every customer.

    Use WiFi technology can make our control range more wider, can get rid of narrow space constraint, in building can control more than 50m, in outdoor can control more than 100m.

    In the condition of not use the mobile software, also can use the remote control to control, very convenience, bring many choices for you.


    Standards and Certifications



    Technical Parameters
    1. Remote control technical parameters
    1:Working temperature:-20-60℃
    2:Power supply method:AAA*3
    3:Supply voltage:1.5V*3
    4:Standby power:0.015mW
    5:Standby current:3uA
    6:Working current:200uA
    7:Emission current:10mA
    8:Remote control distance:about 20m
    9:Standby time:6 month

    2. Software technical parameters
      1:Name:Dream Color
      2:Runtime platform:Android version support Android system(better one can support
           Samsung, HTC), IOS version support IOS system, equipment must have WiFi function.
      3:Byte: Android version(622K)、IOS version(581K).
      4:Language: English
      5:Category: communications
      6:Free, green, no plug-ins

    3. Controller technical parameters

    1:Working voltage: DC5-24V

    2:Output control: can flexible control 3 channel, 2 channel, 1 channel LED lamps.

    3:Output current: 3 Channel  □350mA/CH □700mA/CH  □_____mA/CH

    4:External dimension: L107*W65*H30(mm)

    5:Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g

       OFDM(-15dBm)


    Specifications Download



    LED-WiFi Controller Function Instruction

    1. Working state instruction


    Indicator light

    Function table

    Power

    Power indicator light, long-time bright shows power supply normally

    Wifi

    Free time long-time bright, have wifi data enter flicker, configuration wifi Ssid off

    Link

    Receive the date, become flicker

    RF

    Have correct wifi date enter flicker, free time die out, have remote then control flicker



















    Match Key function

         The first time use the controller and remote control, maybe because the controller address and remote control address is not match, it will cause the remote control can not control, at this time, it need to use this button to make this 2 address matched.

        Use method: first, press the controller "Match" key, at the same time press any key of the remote control, more than 2s, now the remote control indicator light RF will flicker 3 times, release "Match" key, then finished.

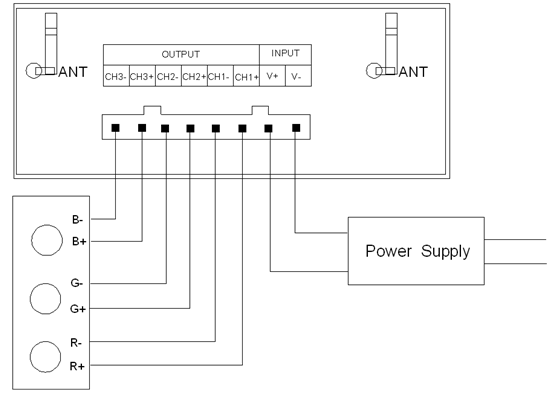

    Install power supply and LED equipment

    This connector structure belong to drawer structure, the device interface of power supply and LED is together, six interface one the left side (CH3-、CH3+、CH2-、CH2+、CH1-、CH1+)is connect led equipment,the fifth interface is connect the anode V+ of power supply, the seventh interface is connect the cathode V_ of power supply. According to the rated voltage of led lamp, we supply power to controller ,and the rated voltage of controller is 24V. As follows:
