Good quality MiNi WiFi controller can control the lights freely ,convenient, simple and humanized control RGB light strip, color temperature light strip, dimming light strip

Good quality MiNi WiFi controller can control the lights freely ,convenient, simple and humanized control RGB light strip, color temperature light strip, dimming light strip

Model: WF102

$35.99

DHL Free Shipping On Order Over $199
Qty Discounts Off Price
1-4
$35.99
5-9
$35.27
10-14
$34.19
15+
$32.75
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Product Summarization

    MiNi WiFi controller is a kind of WiFi controller with small volume developed by our company. We have upgraded its appearance, the volume is more compact and beautiful. All the advantages of WiFi control has been set on it. Collocating with upgraded mobile software, it is more comfortable and novel in style. It makes the LED control more convenient, simple and humanized. User can control the lights freely. The controller can support router mode by allocating upgraded mobile software. Multi-controllers can be added to one router which makes the light control and surfing the Internet work together and can avoid the trouble of switching WiFi.

        Using WiFi technology can make our control range more wider and can get rid of narrow space constraint, in building can control more than 50m, in outdoor can control more than 100m.


    Standards and Certifications



    Technical Parameters

    1. Controller Technical Parameters

    1. Working voltage: DC5-24V

    2. Output control: RGB light strip, color temperature light strip, dimming light strip.

    3. Output current: 4A*3CH

    4. Connect mode: common anode

    5. External dimension: L90*W66*H22 mm

    6. Receiving sensitivity: 802.11b DSSS(-5dBm), 802.11b CCK (-10dBm), 802.11g OFDM(-15dBm)

    2. Software Technical Parameters

    1. Name: Mini control

    2. Runtime platform: Android version support Android system (one must support Android system)

    3. Size: 1.47M

    4. Language: English/Chinese

    5. Category: communications

    6.Free, no plug-ins

    Specifications Download

    Controller Function Instruction
    1. Working state instruction


    Indicator light

    Function table

    PWR

    Power indicator light, long-time bright shows power supply normally

    SYS

    enter flicker when have wifi data, otherwise it will extinguish

    LINK

    Long-time bright shows mobile phone have connected with wifi controller, otherwise it will extinguish















    2. On/off key Function

    Short press this key, you can turn on/off of controller. Long press it until SYS indicator light is long-time bright, you can initialize wifi network.

    3. Mode Key Function

    Short press this key, you can switch the built-in mode. Specific mode refer to the built-in mode form of controller.

    4. Built-in mode form of controller

    1. The mode form of RGB light strip Control:

    No.

    Function

    Remark

    No.

    Function

    Remark

    1

    Static red

    Brightness is adjustable, Speed is unadjustable

    12

    Red stroboflash

    Brightness is unadjustable,  speed is adjustable

    2

    Static blue

    13

    Blue stroboflash

    3

    Static green

    14

    Purple stroboflash

    4

    Static cyan

    15

    Green stroboflash

    5

    Static purple

    16

    Yellow stroboflash

    6

    Static yellow

    17

    Cyan stroboflash

    7

    Static white

    18

    White stroboflash

    8

    Three-color jumpy changing

    Brightness and speed is adjustable



    19

    Red blue gradual changing alternately

    Brightness is unadjustable, speed is adjustable

    9

    Seven color jumpy changing

    20

    Blue green gradual changing alternately

    10

    Three-color gradual changing

    21

    Green red gradual changing alternately

    11

    Seven-color gradual changing

    22

    Self-defined color

















































    2. The mode form of Color temperature light strip control:

    No.

    Brightness

    proportion

    Remark

    No.

    Brightness proportion

    Remark

    1

    C:0% W:100%

    Brightness is adjustable

    12

    C:55% W:45%

    Brightness is adjustable

    2

    C:5% W:95%

    13

    C:60% W:40%

    3

    C:10% W:90%

    14

    C:65% W:35%

    4

    C:15% W:85%

    15

    C:70% W:30%

    5

    C:20% W:80%

    16

    C:75% W:25%

    6

    C:25% W:75%

    17

    C:80% W:20%

    7

    C:30% W:70%

    18

    C:85% W:15%

    8

    C:35% W:65%

    19

    C:90% W:10%

    9

    C:40% W:60%

    20

    C:95% W:5%

    10

    C:45% W:55%

    21

    C:100% W:0%

    11

    C:50% W:50%

















































    3. The mode form of dimming light strip control:


    No.

    Brightness

    Remark

    No.

    Brightness

    Remark

    1

    1%

    Brightness proportion

    12

    55%

    Brightness proportion

    2

    5%

    13

    60%

    3

    10%

    14

    65%

    4

    15%

    15

    70%

    5

    20%

    16

    75%

    6

    25%

    17

    80%

    7

    30%

    18

    85%

    8

    35%

    19

    90%

    9

    40%

    20

    95%

    10

    45%

    21

    100%

    11

    50%













































    Typical application

    1. Wiring instructions of RGB light strip

    2. Wiring instructions of color temperature light strip

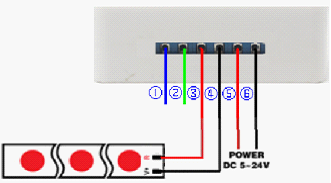

    3. Wiring instructions of dimming light strip
