Hot sell mini wifi controller use Android system or IOS system mobile phone to control more than 100 meter led lamps , led strip strip lighting

Hot sell mini wifi controller use Android system or IOS system mobile phone to control more than 100 meter led lamps , led strip strip lighting

Model: WF103

$45.99

DHL Free Shipping On Order Over $199
Qty Discounts Off Price
1-4
$45.99
5-9
$45.07
10-14
$43.69
15+
$41.85
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project



    Summarization

        This product is a novel high-voltage plastic casing controller developed by our company, plastic casing is safe and beautiful in appearance. It makes the LED control more convenient, more humanized. We can use an Android system or IOS system mobile phone to install control software, then it can control LED, this is the wishes of every customer.
    Use WiFi technology can make our control range more wider, can get rid of narrow space constraint, in building can control more than 50m, in outdoor can control more than 100m.
    In the condition of not use the mobile software, also can use the remote control to control, very convenience, bring many choices for you.


    Standards and Certifications



    Technical parameters

    1. Remote control technical parameters

    Working temperature: -20-60℃

    Power supply method: AAA*3

    Supply voltage: 1.5V*3

    Standby power: 0.015mW

    Standby current: 3uA

    Working current: 200uA

    Emission current: 10mA

    Remote control distance: about 20m

    Standby time: 6 month

    2. Software technical parameters

     Name: Dream Color

     Runtime platform: Android version support Android system(better one can support

     Samsung, HTC), IOS version support IOS system, equipment must have WiFi function.

     Byte: Android version(622K)、IOS version(581K).

     Language: English

     Category: communications

     Free, green, no plug-ins

    3. Controller technical parameters

    Working voltage: AC90-240V

    Output voltage:DC90-240V

    Output current: 1A*3CH

    Output control: can flexible control 3 channel, 2 channel, 1 channel LED lamps.

    Connect mode: common anode

    External dimension: L145*W140*H27(mm)

    Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g

    Specifications Download

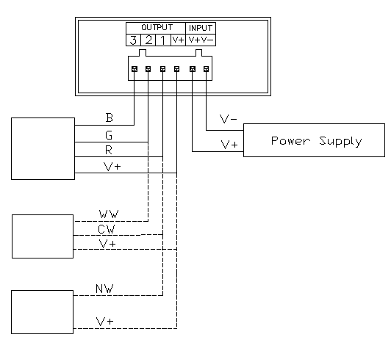

    Interface specification

    Input voltage range is AC90-240V, output voltage is decided by input voltage, range is DC90-240V.


    Typical Application

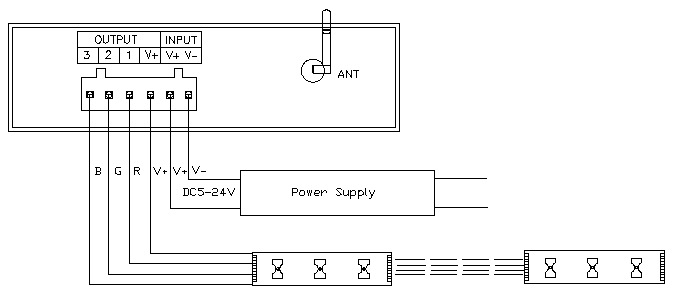

    1.Connect three channels LED instruction

    When connect three channels LED, you should put the Dream Color software switch to CD mode to use, only under this mode, you can control the LED's color, brightness and speed. Color disk adjust the color(Adjust process can be seen in the upper left corner R, G, B numerical with change), speed/brightness item adjust speed and bright("M" set the LED dynamic effect, "M"adjust the LED dynamic change.

    2.Connect two channels LED instruction

    When connect two channels LED, you should put the Dream Color software switch to CT mode to use, only under this mode, you can control the LED's color temperature, brightness and color temperature shortcut key settings.Color disk adjust the color temperature(meanwhile top left CW,WW numerical with change), brightness item adjust bright, "M" key set the special color temperature state.

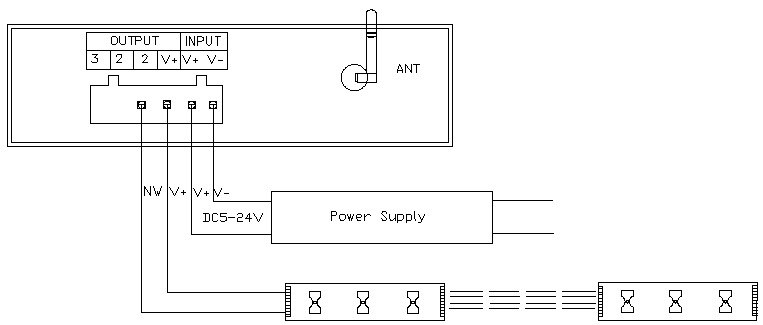

    3. Connect one channel LED instruction



    DIM mode to use, under this mode, use color disk control the LED's brightness, adjust process can be seen in the upper left corner NM numerical with change.
