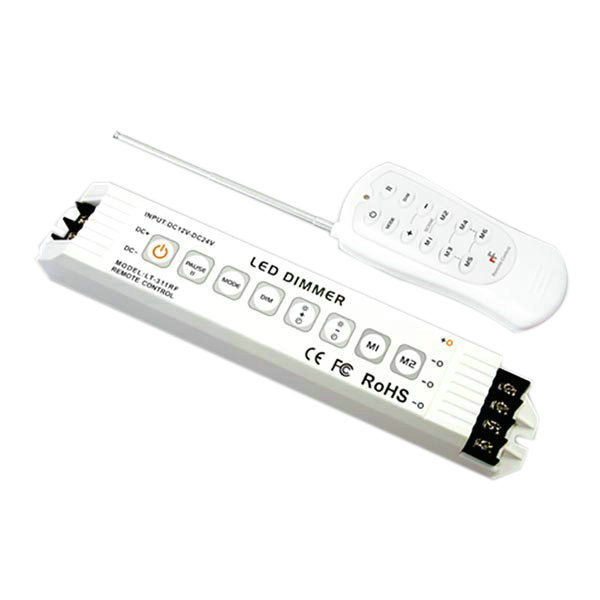

LT-311RF DC12-24 V,100 m remote control distance good quality led dimmer hot applied for led lights

Model: LT-311RF
LT-311RF DC12-24 V,100 m remote control distance good quality led dimmer hot applied for led lights

$45.98

Free worldwide shipping on orders over $199

Various options in stock
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Product description :

    LT-311RF;Multi-function LED Single Color Controlller;DC12-24V input;6A*3channel output

    Multi-function LED Single Color Controlller

    LT-311 multi-function LED controller is a universal dimming controller, which adopted advanced PWM ( Pulse Width Modulation) digital dimming technology, PC engineering plastic, soft button control and exquisite appearance; functional change and brightness adjustment. Automatically adapt to DC 12V- 24V voltage input, which widely used in the resistor current limiting single color LED products.

    Note: LT-311 can be connected to our constant current power repeater to control the hi-power LED lights.

    Performance parameter:

    5~100% brightness adjust, 1024 scale levels.

    Automatically adapt to the single color Led light which works between DC5V-24V.

    3 Channels output control, maximum output 18A total ,sustain to full-load work.

    Color strobe, color skipping and color gradual are available for choice

    25%, 50%75%, 100% brightness easy to select.

    Speed and brightness mode for select

    2 DIY modes



     LT-311RF  PDF



    Product parameter

    Input voltage :  DC12V~DC24V

    Max current load:  6A/CH×3 Max 18A

    Max output power :  216W/432W(12V/24V)

    Remote control distance:   100m

    Grey scale level :   1024 Levels

    Working temperature: -30℃~55℃

    Dimension :L211×W40×H30(mm)

    Package Size : L313×W50×H32(mm)

    Weight (G.W) :230g

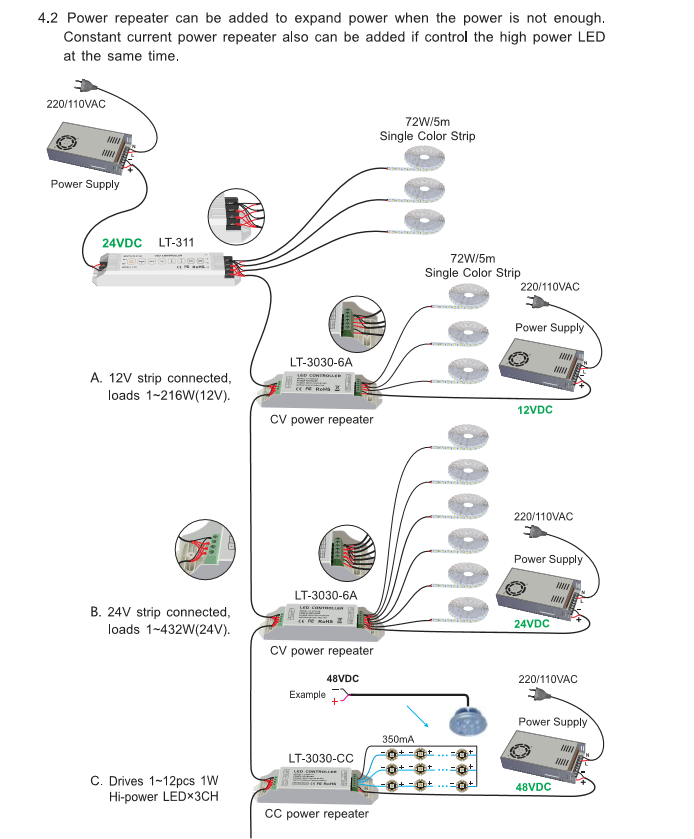

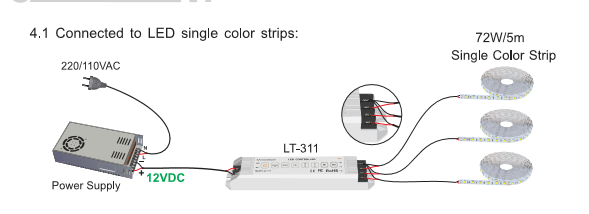

    Connection diagram :



    LT-311RF DC12-24 V,100 m remote control distance good quality led dimmer hot applied for led lights

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
