LT-850-5A, DC CV SMPS DMX512 DMX-PWN Decoder, Realize 0-100% brightness and various changing effect for LED lights, 5 Warranty

LT-850-5A, DC CV SMPS DMX512 DMX-PWN Decoder, Realize 0-100% brightness and various changing effect for LED lights, 5 Warranty

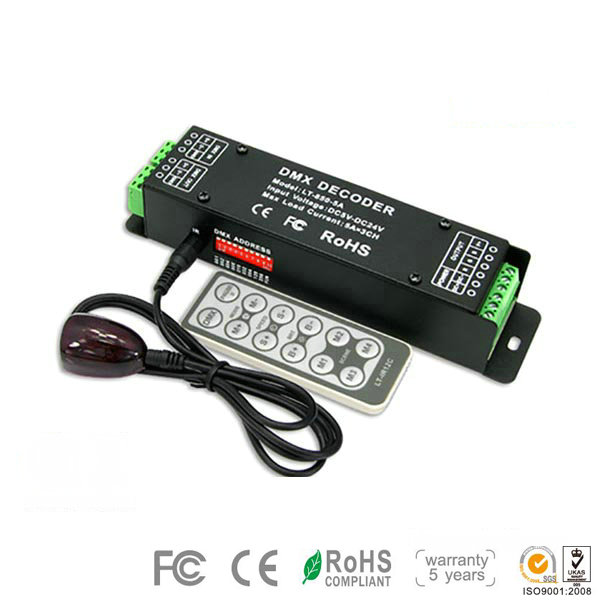

Model: LT-850-5A

$45.98

DHL Free Shipping On Order Over $199
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    LT-850-5A DMX-PWN decoder works to convert universal DMX512 digital signal to PWN signal, which controlled by DMX512 console, with 8 bit gray scale output per channel. Realize 0-100% brightness and various changing effect. And can control single color, RGB LED light.



    Input signal:   DMX512

    Power Supply Chosen:   DC CV SMPS

    Input Voltage:   DC5V~12V

    Max Current Load:   5A/CH*3CH  15A max

    Max Output Power:   75W/180/360W(5V/12V/24V)

    Output Gray Scale:   256 Levels/CH(8bit/CH)

    DMX512 Socket:   Green Terminal

    Working Temperature:   -30℃~65℃

    Dimension:   L175×W42×H33mm

    Package Size:   L178×W46×H58mm

    Weight(G.W.):   310g



    Products Specifications

    DMX LED Controller         LT-850-5A



    LT-850-5A, DC CV SMPS DMX512 DMX-PWN Decoder, Realize 0-100% brightness and various changing effect for LED lights, 5 Warranty

    LT-850-5A, DC CV SMPS DMX512 DMX-PWN Decoder, Realize 0-100% brightness and various changing effect for LED lights, 5 Warranty
