Mean Well LRS-200-24 DC24V 200Watt 8.3A UL Certification AC110-220 Volt Switching Power Supply For LED Strip Lights Lighting

Model: LRS-200-24
Mean Well LRS-200-24 DC24V 200Watt 8.3A UL Certification AC110-220 Volt Switching Power Supply For LED Strip Lights Lighting
  • Mean Well LRS-200-24 DC24V 200Watt 8.3A UL Certification AC110-220 Volt Switching Power Supply For LED Strip Lights Lighting
  • Mean Well LRS-200-24  DC24V 200Watt 8.3A UL Certification AC110-220 Volt Switching Power Supply For LED Strip Lights Lighting
  • Mean Well LRS-200-24  DC24V 200Watt 8.3A UL Certification AC110-220 Volt Switching Power Supply For LED Strip Lights Lighting
  • Mean Well LRS-200-24  DC24V 200Watt 8.3A UL Certification AC110-220 Volt Switching Power Supply For LED Strip Lights Lighting
  • Mean Well LRS-200-24  DC24V 200Watt 8.3A UL Certification AC110-220 Volt Switching Power Supply For LED Strip Lights Lighting

Select Specifications:

Select UL-Listed:

Starting at: $39.00 $36.985% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$36.98
5-19
$36.24
20-49
$35.13
50+
$33.65
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Mean Well LRS-200-24  DC24V 200Watt 8.3A UL Certification AC110-220 Volt Switching Power Supply For LED Strip Lights Lighting

    Automatic Overload cut-off, Over Voltage cut-off, Automatic Thermal cut-off, Short circuit protection. built-in EMI filter, 100% load test ,Full range of input voltage, output voltage accurate and stable, Output over-voltage,  over-current and short-circuit protection, Output low ripple and noise

    NOTE:

    This item is power adapter (transformer) of AC -DC Low Voltage for 24V Parapet lights, Spot Light, Wall Washer, Grow Light, Single colour RGB or dream color LED strip lights and led module string.

    Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage 85% of this Power supply adaptor, Otherwise it will affect the brightness of the LEDs and the service life of the power supply.



    Standards and Certifications

    CE FCC UL RoHS ISA SGS ISO warranty



    Product Specification

    Power Supply Type:   Mean Well Switching Power Supply

    Input Voltage AC:   115/230V

    Output Voltage DC:   24 VDC

    Output Power :   8.3A 200Watts

    Warranty:   3 years

    Average working no trouble:   >50, 000 hours

    Working temperature:   - 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

    Storage temperature:   - 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

    Height above sea level:   ≦2000M

    Connection Type:   Screw Terminals

    Input Frequency Range:   47 ~ 63 Hz

    IP Rating:   Non-Waterproof

    Output Channels:   3 channels

    Built-in PFC Functio3n:   Yes   PF>0.93

    Fixed switching frequency at PFC:67KHz PWM:   134KHz

    Standards And Certifications:   UL Recognized

    UL Compliance Number:   E183223

    Cooling method:   Natural cooling air convection

    Overload protection:   105% - 150% rated power,  automatic recovery

    Over-voltage protection:   105% - 150% of the rated voltage

    Protection type:   Shut off o/p voltage, clamping by zaner diode

    Over Temperature:   U1 Tj 140℃ typically (U1) detect on main control IC

    Protection type:  shut down o/p voltage, recovers automatically after temperature goes down.



    MeanWell Specifications

     AC input range selectable by switch 110V/220V

     Protections: Short circuit / Overload / Over voltage/Over temperature

     Forced air cooling by built-in DC fan

     Withstand 300vac surge input for 5 second

     Built-in cooling Fan ON-OFF control

     Built-in constant current limiting circuit

     100% full load burn-in test

     LED indicator for power on

     Fixed switching frequency at 90KHz

     Low cost,high reliability

     3 years warranty





    How to connect flexible led strip lights

    how to connect meanwell led power supply to led strip

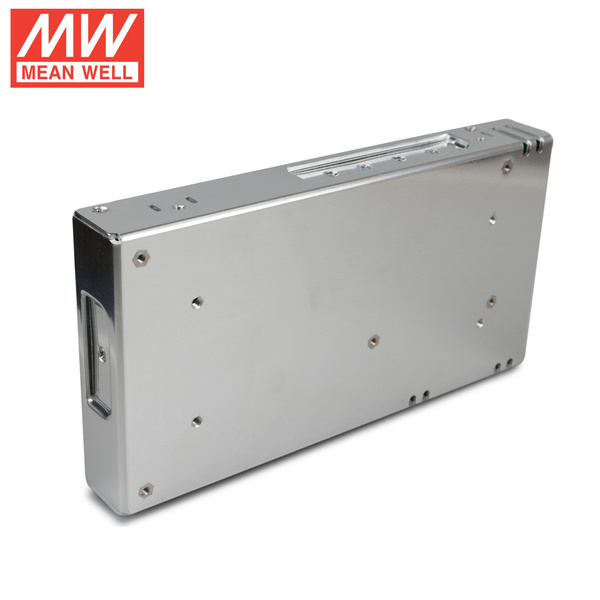

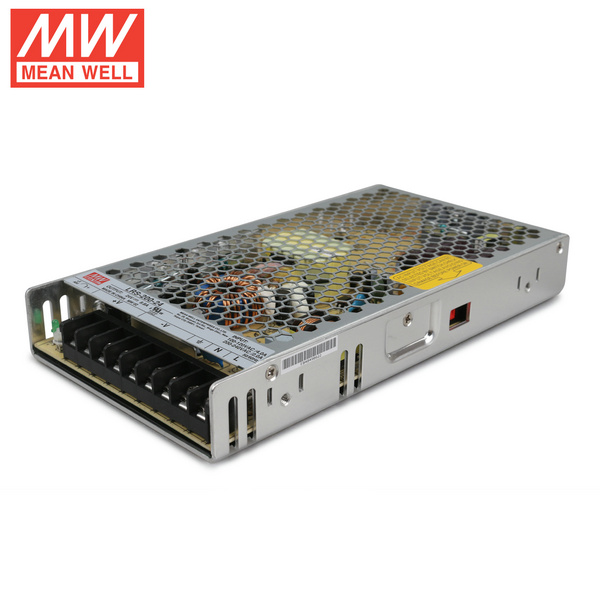

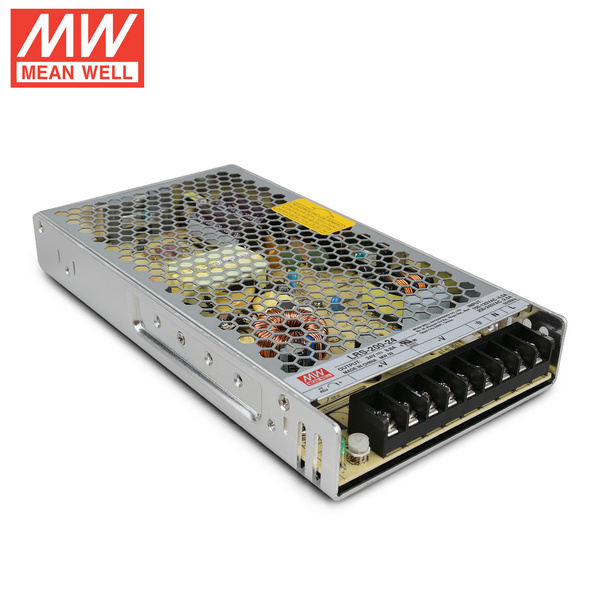

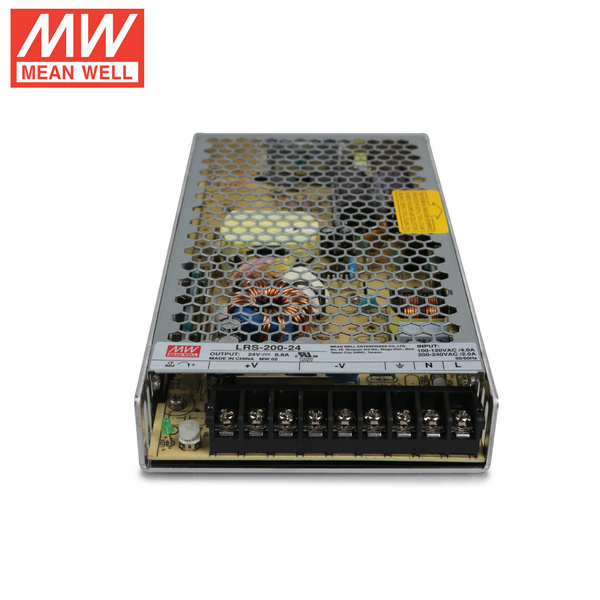

    Mean Well LRS-200-24 DC24V 200Watt 8.3A UL Certification AC110-220 Volt Switching Power Supply For LED Strip Lights Lighting
