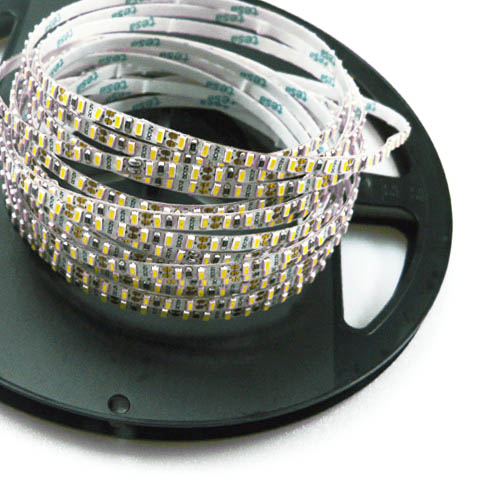

Single Row Narrow Series DC12V 3014SMD 990LEDs Flexible LED Strip Lights Indoor Lighting Width 4mm 16.4ft Per Reel By Sale

Single Row Narrow Series DC12V 3014SMD 990LEDs Flexible LED Strip Lights Indoor Lighting Width 4mm 16.4ft Per Reel By Sale

Model: FSLSR-IP20-3014X990W4

$64.98

DHL Free Shipping On Order Over $199

Please Choose:

PCB Width:





Waterproof Rating:



Qty Discounts Off Price
1-4
$64.98
5-9
$63.68
10-14
$61.73
15+
$59.13
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Super slim super narrow(PCB width:4mm) single color super bright 3014 SMD(SMD:Surface Mounted Devices) Non-Waterproof Flexible LED Tape strips, Epistar chip, 990LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale.

    Our brightest Flexible LED Solid Color light Strips soft and easy bended for installation. Available in 5 meter (197 in) Waterproof IP65 flexible light strips with adhesive backing and can be stuck just about anywhere. can be cut into 3-LED segments, so you could cut a different length for your project and request. The LED strips Suitable for the average home lighting as well as lighting professionals. 12V DC operation. Dimmable - See compatible LED dimmers



    Standards and Certifications




    Product Specification

    LED Strip Type:   SMD 3014  990PCS/16.4ft

    LED Chip:   Super brights Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    Light Color:   Warm White, Daylight White,Cool White, RedGreen, BlueAmber (optional)

    Dimension:   16.4ft/roll, every 3 PCS LED can be cut

    LED Quantity:   198 LEDs per 1meter (3.28 ft)

    Lifespan:   50,000+hours

    Warantty:   3 years

    Dimensions:     L500cm(196.8 in ) x W0.4cm(0.15 in ) x H0.20cm(0.08 in )

    Input Voltage(V):   12VDC

    Working Power:   6.6A 79.2/16.4ft  Max

    Lamp Luminous Flux(lm):   10~12lm/LEDs   11880lm/16.4ft

    Color Temperature CCT(White):  Warm White(2800-3400k), Daylight White(5000-6800k), Cool White(7600-9800k)

    Wavelength NM(RGBY):   Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)

    Beam Pattern:   120 degree

    Water Proof:   Non-Waterproof

    CRI (Ra>):  82



    Color Temperature



    Applications

    1. Back lighting

    2. LED task Lighting

    3. Retail LED lighting

    4. Sign illumination LEDs

    5. Under cabinet lighting

    6. Display case and accent lighting



    Waterproof Level Description

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);

     IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

     IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);

     IP68 Waterproof (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);



    Installation Instruction
