Triple Row TM1812 Series LED Digital Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 720LEDs 16.4ft Per Reel By Sale

Model: DCFLS-12V-TM1812X720
Triple Row TM1812 Series LED Digital Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 720LEDs 16.4ft Per Reel By Sale
  • Triple Row TM1812 Series LED Digital Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 720LEDs 16.4ft Per Reel By Sale
  • Triple Row TM1812 Series LED Digital Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 720LEDs 16.4ft Per Reel By Sale
  • Triple Row TM1812 Series LED Digital Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 720LEDs 16.4ft Per Reel By Sale
  • Triple Row TM1812 Series LED Digital Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 720LEDs 16.4ft Per Reel By Sale
  • Triple Row TM1812 Series LED Digital Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 720LEDs 16.4ft Per Reel By Sale
  • Triple Row TM1812 Series LED Digital Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 720LEDs 16.4ft Per Reel By Sale
  • Triple Row TM1812 Series LED Digital Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 720LEDs 16.4ft Per Reel By Sale

Select Specifications:

Select PCB Color :

Select Operating Voltage:

Starting at: $108.98 $99.998% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$99.99
5-9
$94.99
10-19
$89.99
20-49
$79.99
50+
$69.99
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Features

    1. Universal triple row TM1812 720 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. individually addressable LEDs allow for sequencing modes. Silicone Encased waterproof optional flexible LED light strip with 720 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. TM1812 IC chip control. 5meter(16.45ft) Per Reel By Sale.

    2. This programmable led strips is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 12V voltage programmable constant curre-nt control part, effectively ensuring the pixel point light color height consistent. The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel,the signal to reduce 24bit. pixel adopt auto resha-ping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission. You can get the required program and colors use with LED Edit2014 software together. - Connect led DMX Digital Display Controllers

    3. This strips soft and easy bended for installation. Available in 5 meter (197 in) Waterproof optional flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 12-LED segments, so you could cut a different length for your project and request. The led strip has low light decline and long lifespan,LED with low driving voltage, environmental protection and energy saving, high brightness,scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation. 12VDC operation,Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration. Color Program Controllable - Connect LED Smart Full Color Controllers

    TM1812 Chips Specifications Download   PDF



    Standards and Certifications

    12VDC CE FCC UL RoHS ISA SGS ISO LIFETIME warranty waterproof


    Product Specification

    LED Strip Type:   SMD 5050   DreamColor 720LEDs/16.4ft

    LED Chip:   TM1812 IC super brights Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    Dimension:   16.4ft/roll, every 12 PCS LED can be cut

    LED Quantity:   144 LEDs per 1meter (3.28 ft)

    Lifespan:   50,000+hours

    Warantty:   3 years

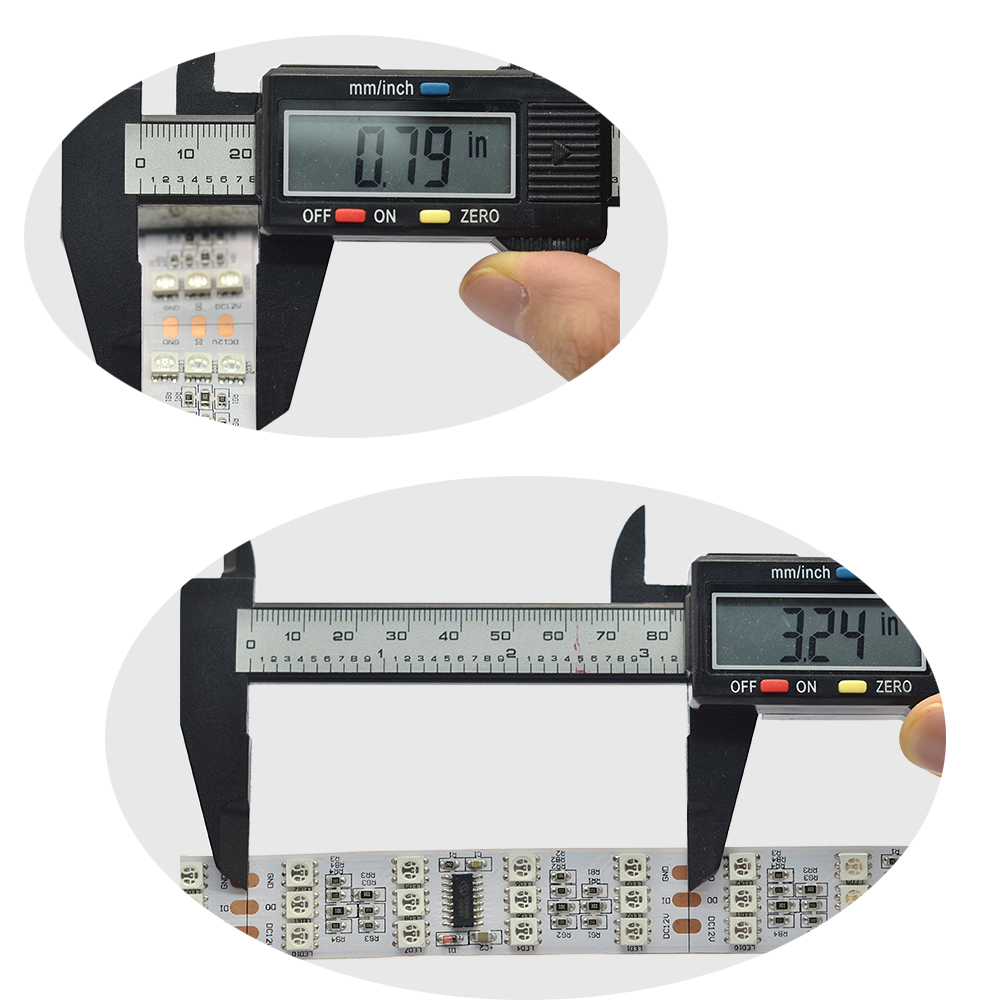

    Dimensions:     L500cm(196.8 in ) x W2.0cm(0.79 in ) x H0.25cm(0.10 in )

    Input Voltage(V):   12VDC

    Working Power:   172W/16.4ft  Max

    Lumen Per LED:   24~26Lumen   3744lm Max /3.28ft

    Wavelength NM(RGBY):   2000-2500mcd

    Beam Pattern:   120 degree

    Water Proof:   Non-Waterproof; waterproof IP67 optional



    Applications

    1. LED programmable digital display

    2. Hotels decoration use

    3. Backlighting decoration

    4. Concealed lighting, Cove decoration

    5. Theaters, clubs, shopping malls lighting

    6. Architectural decorative lighting

    7. Boutique atmosphere lighting

    8. Auditorium walk stairway lighting

    9. Hidden groove, Wine cabinet decoration

    10. Show exhibition decoration

    digital rgb addressable led strip applications

    Waterproof Level Description

    IP20 IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

    IP65 IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);

    IP67 IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

    IP68 IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

    led strip waterproof level



    Installation Instruction

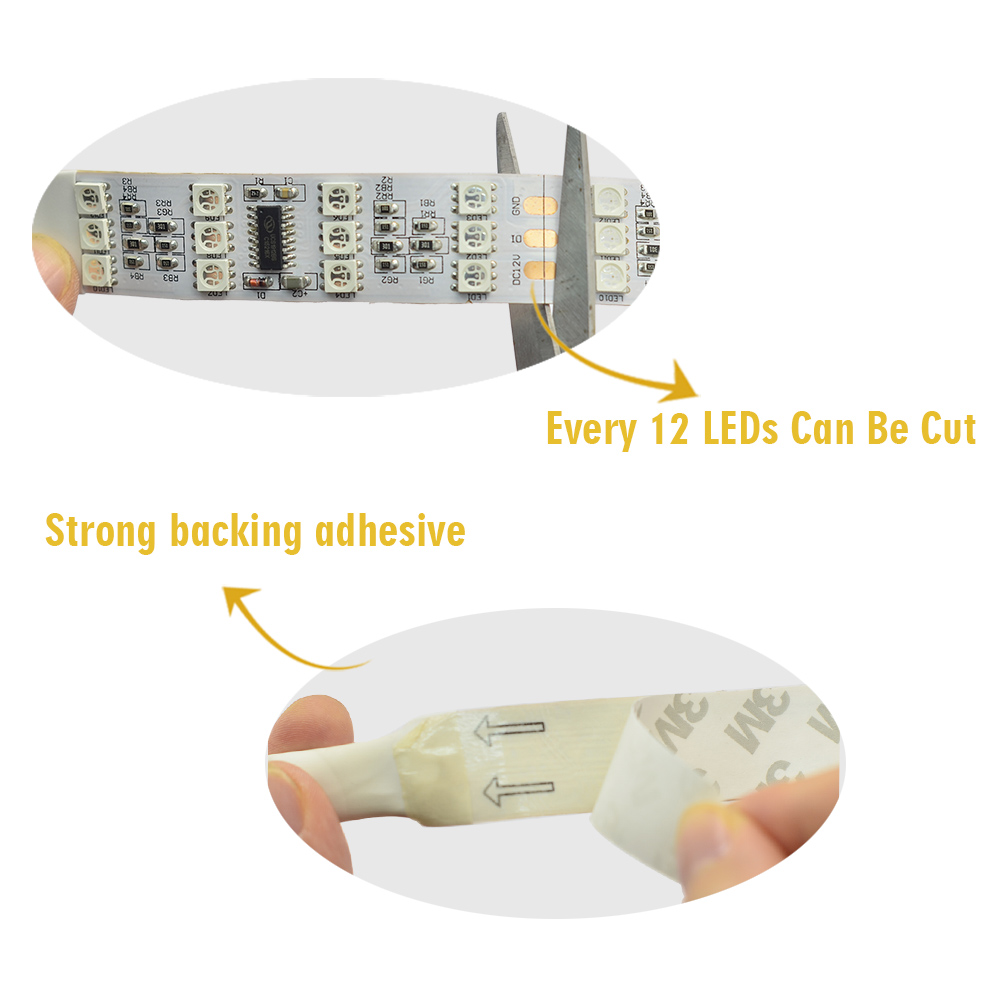

    how to cut led strip                       led strip adhesive tape                       led strip light mounting brackets

    arrow You can cut the strip every few inches,                     arrow The back of the strip is fitted with a strong                   arrow IP67/IP68 type which will come with

    allowing you to freely design your project                    3M tape, allowing you to peel and stick lights                 mounting brackets

    without worrying about space requirements

    to many different surfaces.



    Less than 32.8ft(<10 meter) led strip lights connection diagram

    how to connect digital led strip to spi led controller

    50ft ~ 164ft(15~50 meter) led strip lights connection diagram

    how to connect addressable led strip to led controller

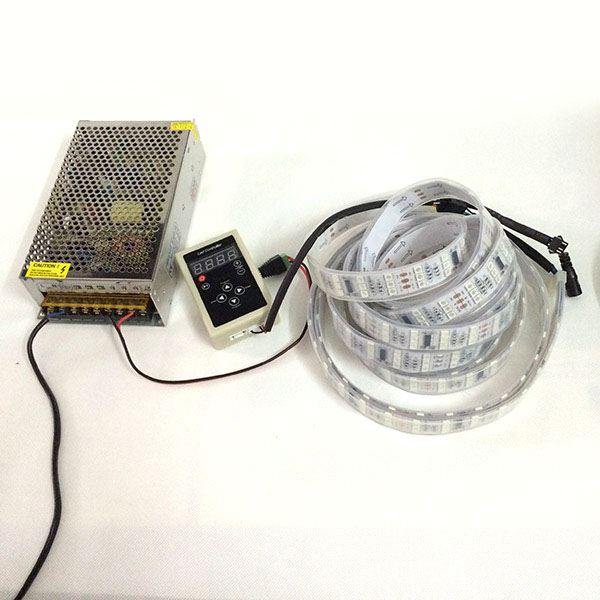

    T-1000S programmable controller connection diagram
    how to connect t-1000s led controller

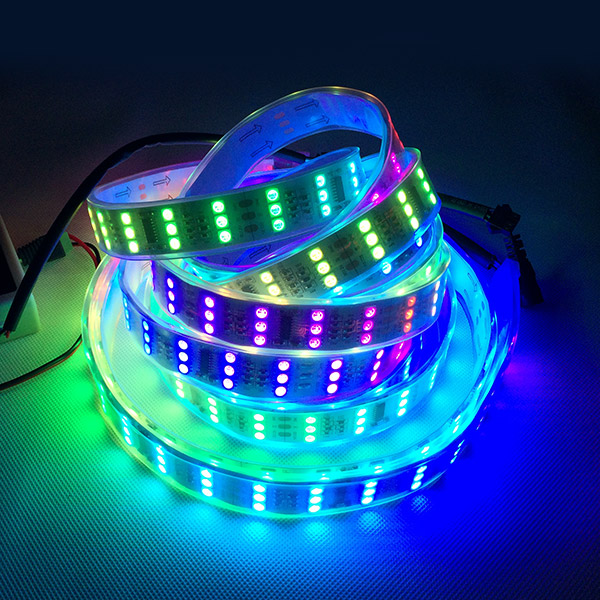

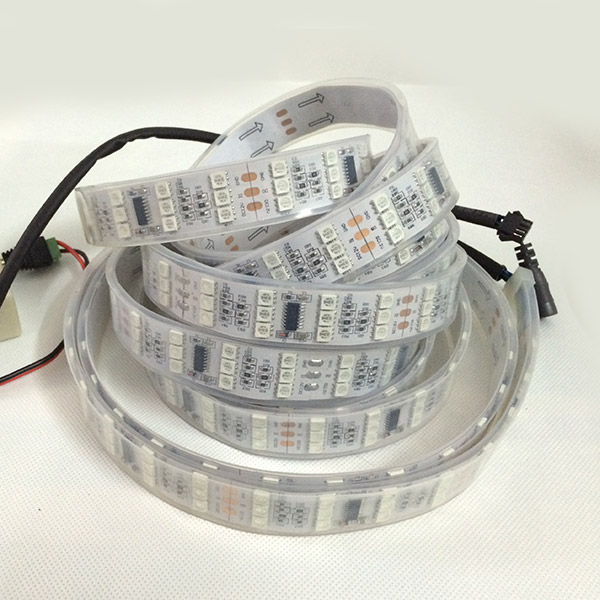

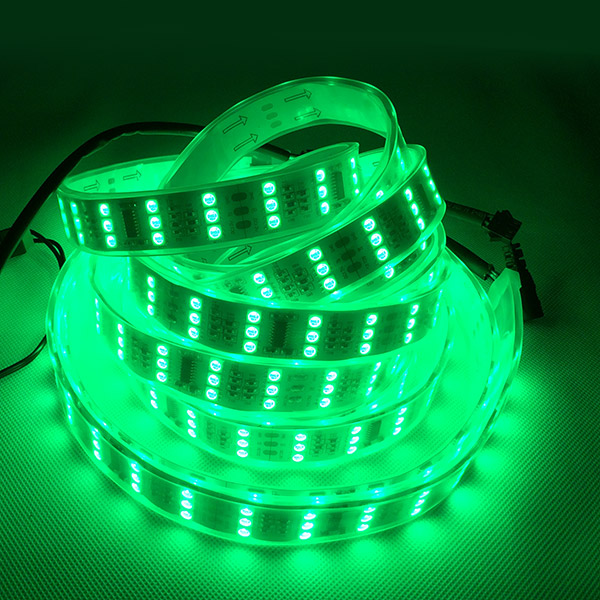

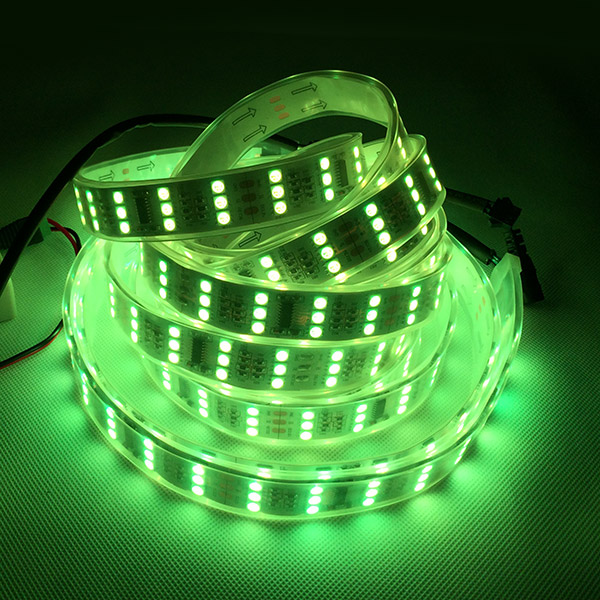

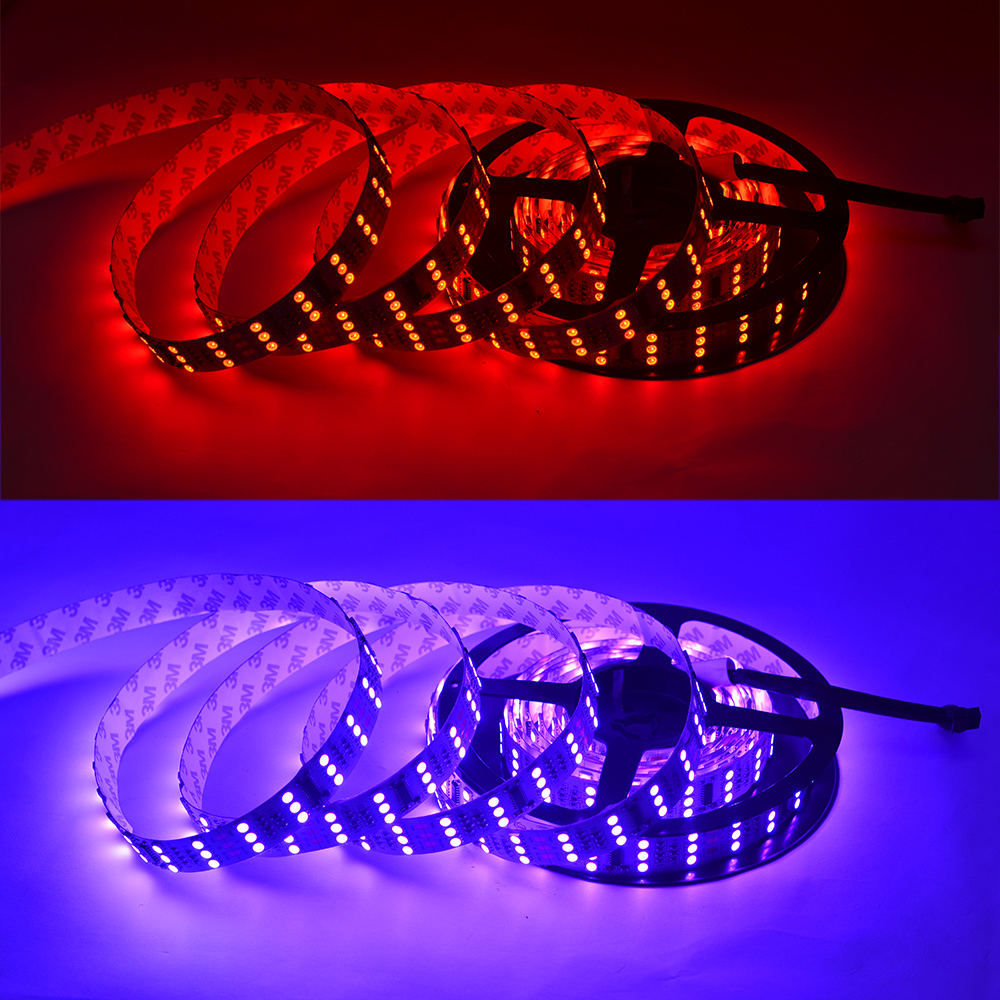

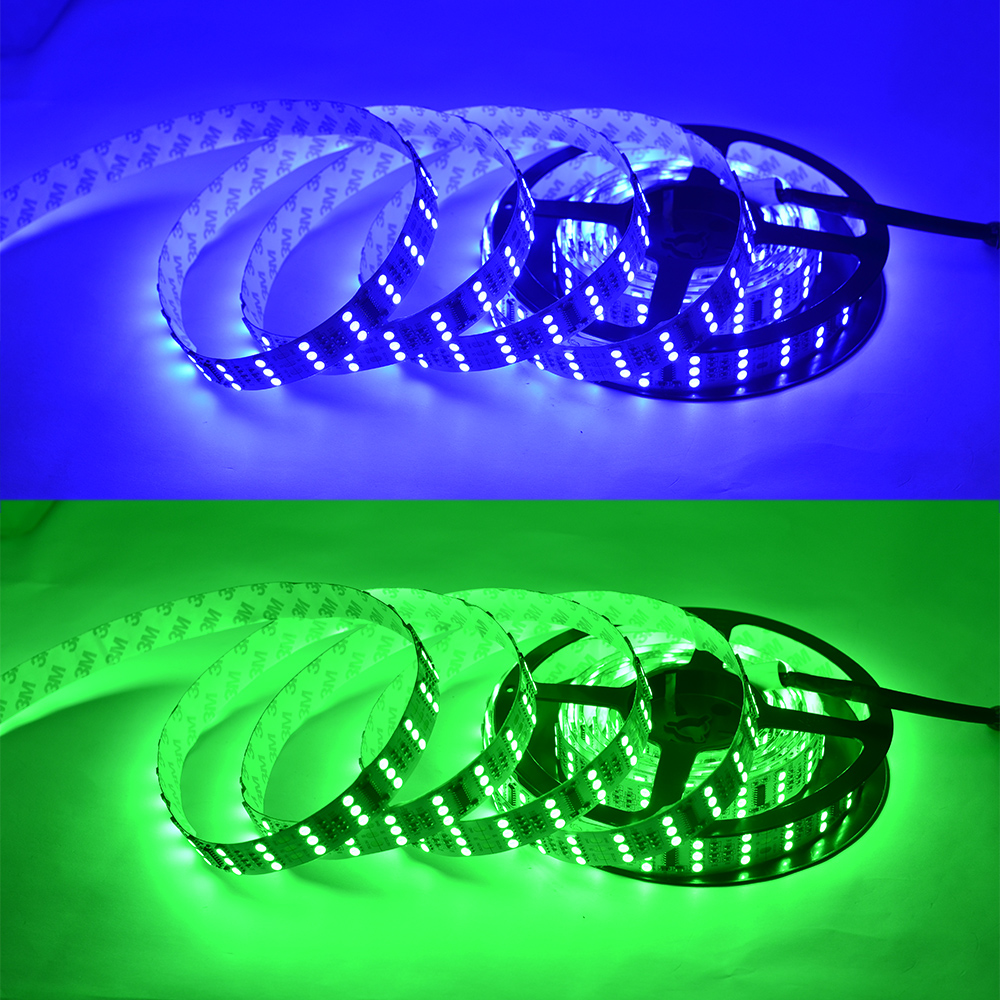

    Triple Row TM1812 Series LED Digital Strip Lights, Programmable Pixel Full Color Chasing, Waterproof Optional, 720LEDs 16.4ft Per Reel By Sale
