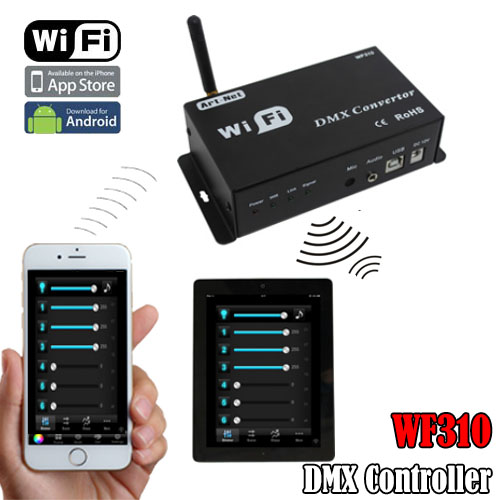

Widely used WF310 more powerful WIFI controller no need to switch wireless networks easy and smart to control led lighting , outdoor led strip lamps

Widely used WF310 more powerful WIFI controller no need to switch wireless networks easy and smart to control led lighting , outdoor led strip lamps

Model: WF310

$81.99

Free Shipping Worldwide On Order Over $199
Qty Discounts Off Price
1-4
$81.99
5-9
$80.35
10-14
$77.89
15+
$74.61
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project
     Product summarization

          WF310 is another WIFI controller independently developed by our company, following our WF100, WF400, when using WF310, you do not need to switch wireless networks, it is more convenient for user go on internet, you can choose encryption network, also can choose open network. Coordinate with WiFiManager network management software, WF310 network configuration is more convenient, can autonomous choose wireless network. Can choose our company autonomous developed mobile phone control software EasyDmx or widely used the Art - Net protocol software to use, make WF310 more strong on the function

       Trough the use of WIFI technology, it provides more comfortable, safer and convenient intelligent lighting control than traditional lighting control, optimizes the lighting control methods, bring a new, comfortable lighting environment to users.


    Standards and Certifications



    Technical Parameters

    1. Software technical parameters

    1.1 Control software:

    1. Name: Easy Dmx

    2. Runtime platform: Android system (iphone, ipad), equipment must have WIFI function

    3. Language: English

    4. Category: communications

    5. Other: Free, no plug-ins

    1.2 Configuration software

    1. Name: WifiManager

    2. Runtime platform: Win 7/Windows Vista/Win2003/WinXP/Win2000

    3. Language: English

    4. Category: communications

    5. Other: Free, no plug-ins

    2. Controller technical parameters

    1. Working voltage: DC12V

    2. Working temperature: -20-60

    3. Working Power consumption: less than 2W

    4. Output: DMX Signal

    5. Receiving sensitivity: 802.11b/g DSSS(-5dBm),802.11b CCK (-10dBm),802.11g OFDM(-15dBm)



    Instruction for use

    Correct use of controller mainly includes the following steps:

      Step1: Recognize and identify the controller interfaces

    Understand the function of each interface on the controller, basic usage and connect way. Refer to

    the controller interface instructions.

      Step 2: Configure the controller

           Through WiFiManager, you can configure various parameters of the controller, including the name, location, network, protocol,IP address and so on, facilitate user to recognize and control. Refer to WiFiManager instructions.

      Step 3: Install controller

             Understand specific connect way of controller and installation requirements. Refer to hardware installation instructions of controller.

      Step 4: Mobile phone control

    Brief description control method of mobile phone. Refer to Easy Dmx instructions.



    Specifications Download


    Typical connect diagram




    Notice

    1. Please don't install controller in a seal off , high magnetic field or high pressure area;

    2. In order to reduce the risk of fire disaster and device damage caused by short circuit , please make sure

      correct connection;.

    3. Please do install controller in a well-ventilated area to insure appropriate temperature .

    4. Installation position of controller should be as near as possible to the router so as to ensure controller normal

      working ;

    5. Check out whether the supply voltage and power is in the range of controller required or not .

    6. Before power on , please inspect the line is correct connection, and test it whether there is a short circuit ;

    7. Any problem , please do not open the shell of controller .

    8. This manual is only applicable to this model of controller, if there is an update without notice.
