WS2811 DC5V Series Flexible LED Strip Lights, Programmable Pixel Full Color Chasing, Outdoor Waterproof IP67, 288LEDs 6.56ft Per Reel By Sale

WS2811 DC5V Series Flexible LED Strip Lights, Programmable Pixel Full Color Chasing, Outdoor Waterproof IP67, 288LEDs 6.56ft Per Reel By Sale

Model: DCFLS-IP67-WS2811X288

Starting at: $69.98

DHL Free Shipping On Order Over $199

Please Choose:





Operating Voltage :



Length:



Qty Discounts Off Price
1-4
$69.98
5-9
$68.58
10-14
$66.48
15+
$63.68
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

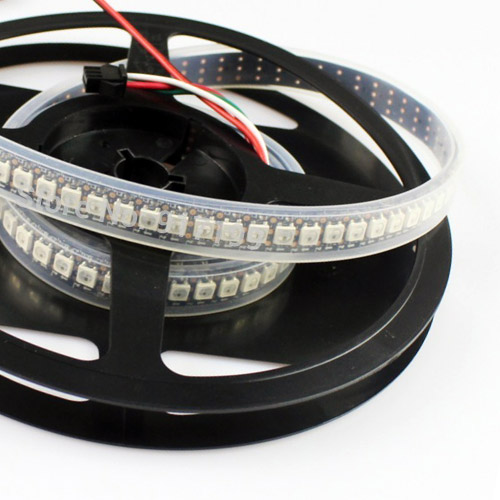

    Universal WS2811 288xIP67 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. individually addressable LEDs allow for sequencing modes. Silicone Encased waterproof flexible LED light strip with 288 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. WS2811 IC chip control. 2meter(6.56ft) Per Reel By Sale.

    This programmable led strips is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC5V voltage programmable constant curre-nt control part, effectively ensuring the pixel point light color height consistent. The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel,the signal to reduce 24bit. pixel adopt auto resha-ping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission. You can get the required program and colors use with LED Edit2014 software together. - Connect led DMX Digital Display Controllers

    This strips soft and easy bended for installation. Available in 2 meter (79 in) Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 1-LED segments, so you could cut a different length for your project and request. The led strip has low light decline and long lifespan,LED with low driving voltage, environmental protection and energy saving, high brightness,scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation. 5VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration. Color Program Controllable - Connect LED Smart Full Color Controllers



    Standards and Certifications




    Product Specification

    LED Strip Type:   SMD 5050   DreamColor 288LEDs/16.4ft

    LED Chip:   WS2811 IC super brights Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    Dimension:   16.4ft/roll, every 1 PCS LED can be cut

    LED Quantity:   144 LEDs per 1meter (3.28 ft)

    Lifespan:   50,000+hours

    Warantty:   3 years

    Dimensions:     L200cm(78.8 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in )

    Input Voltage(V):   5VDC

    Working Power:   86.4W/16.4ft  Max

    Lumen Per LED:   24~26Lumen   3744lm Max /3.28ft

    Wavelength NM(RGBY):   2000-2500mcd

    Beam Pattern:   120 degree

    Water Proof:   Waterproof IP67 (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);



    Applications

    1. LED programmable digital display

    2. Hotels decoration use

    3. Backlighting decoration

    4. Concealed lighting, Cove decoration

    5. Theaters, clubs, shopping malls lighting

    6. Architectural decorative lighting

    7. Boutique atmosphere lighting

    8. Auditorium walk stairway lighting

    9. Hidden groove, Wine cabinet decoration

    10. Show exhibition decoration



    Waterproof Level Description

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);

     IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

     IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);

     IP68 Waterproof (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);



    Installation Instruction




    16.4ft(5 meter) led strip lights connection diagram


    50ft ~ 164ft(15~50 meter) led strip lights connection diagram


    T-1000S programmable controller connection diagram
