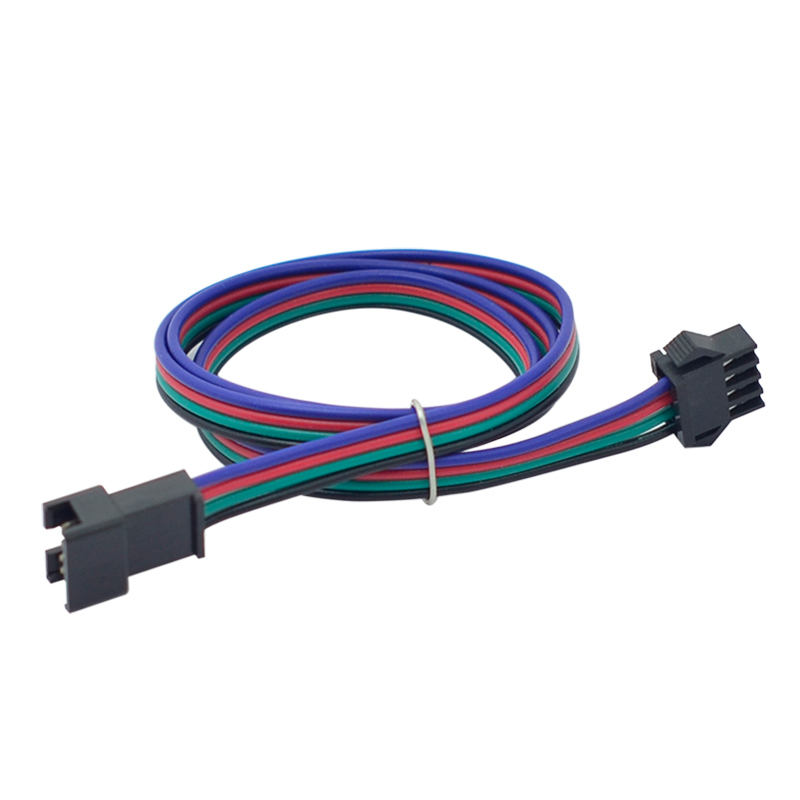

0.5m/1m/2m/5m 4PIN JST LED Terminal Extension Cable Male to Female Connector For 12V Double Signal LPD6803/WS2801/APA102 Full Color Digital LED Strip Lights
4pin JST male and female extension cords are made of absolutely pure copper, and we will do tensile, conductive, and pin position tests for each cable. The solderless LED connector can easily connect two addressable LED strips or monochromatic strips without soldering, which can solve many problems. For those without welding experience, it is simple and convenient, saving time and money. The power cord of the connector adopts imported high-strength plastic with good flexibility, not easy to break, and stable transmission.
Product use: suitable for addressable led strip lights, LED light bar connection, speakers, speakers, displays, household appliances, photocopiers, fax machines, medical equipment, computers, electronic toys, etc.
Cable wire type: 22 AWG
Connector type: JST SM 4 pin plug male and female connector, they are matched, easy and convenient to install
Plug connector material: plastic and metal
Material: Silicone material, easy to peel off
Material: Silicone material, easy to peel off.
Use: Can be used on mini RC helicopter, indoor 3D planes, LED strips, LED wall-washers.
Note: Before connecting to your device, check the colour of the wires and their respective polarities.
