AC 220V LED controller,full color programmable,DMX512 controller,8 ports drive 8192 pixels,can connect DMX console,support many chips. For LED Strip light

Model: CONFULL-H803SA

$229.98

Free Shipping Worldwide On Order Over $199

Please Choose:

Operating Voltage :



Applied to:



Qty Discounts Off Price
1-4
$229.98
5-9
$218.48
10-19
$206.98
20+
$183.98
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Item Type:RGB Controler

    Applicable Lights:lights with full color pixels

    Model Number:H803SA

    Voltage:220V

    Certification:CE,RoHS,CCC

    Connection Mode:GND-GND, CLK(D-)-CLK(D-), DAT(D+)-DAT(D+)

    Power Source:AC

    Controled Method:SD card

    Remote Distance:none

    Warranty:1 year

    Max. Load Power:10W

    Material:metal

    Wattage:1

    Features:easy wiring and operation

    output ports number:8

    drive pixels number:8192

    Button Number:3




    1. Features

     (1). Eight port control maximum 8192 pixels, each port controls maximum 1024 pixels.

     (2). SD card supports FAT32, FAT16 format.

     (3). H803SA can be connected to DMX console, you can switch file, adjust speed and brightness by DMX console.

     2. Supported Chips

     LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, APA104, P9813, P9823, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, DZ2809, SM16716,  TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.

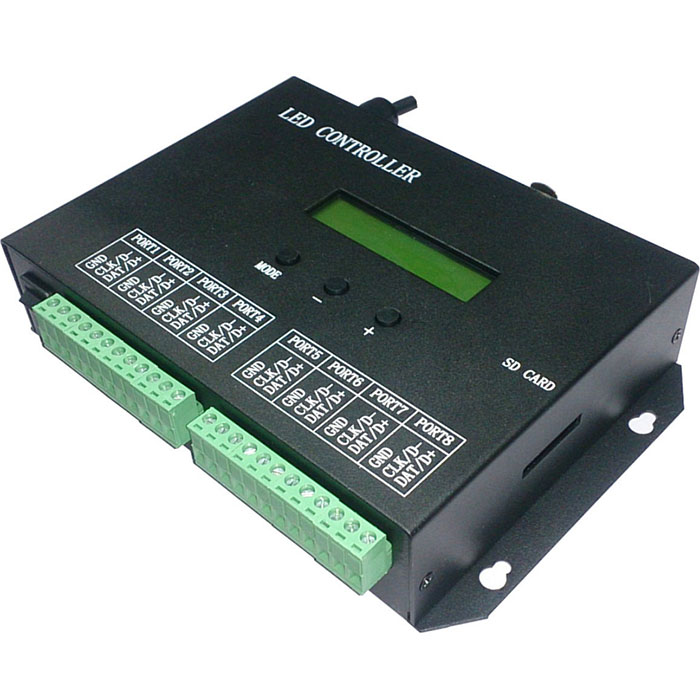

    3. Product Display

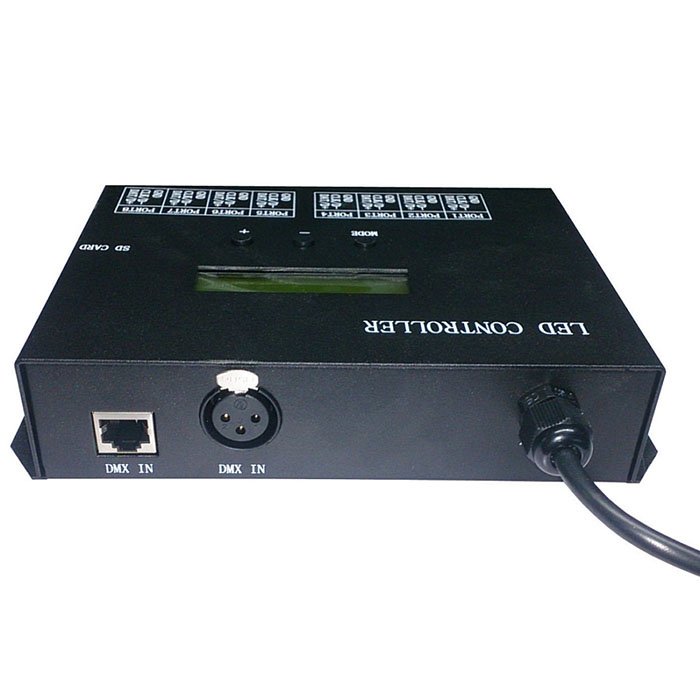

    Product Display





    For example:

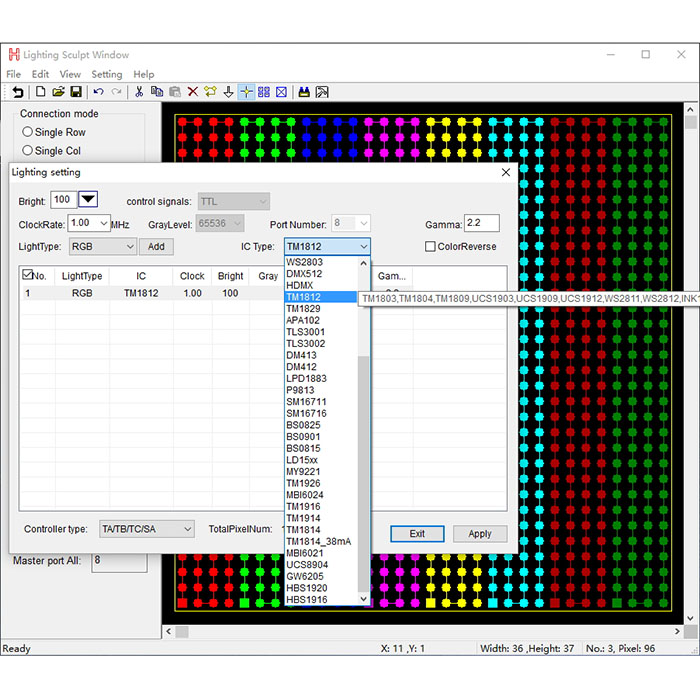

    If you choose WS2812 in software.




    just connect GND, DAT

    If you choose TM512


     just connect GND, D-, D+.

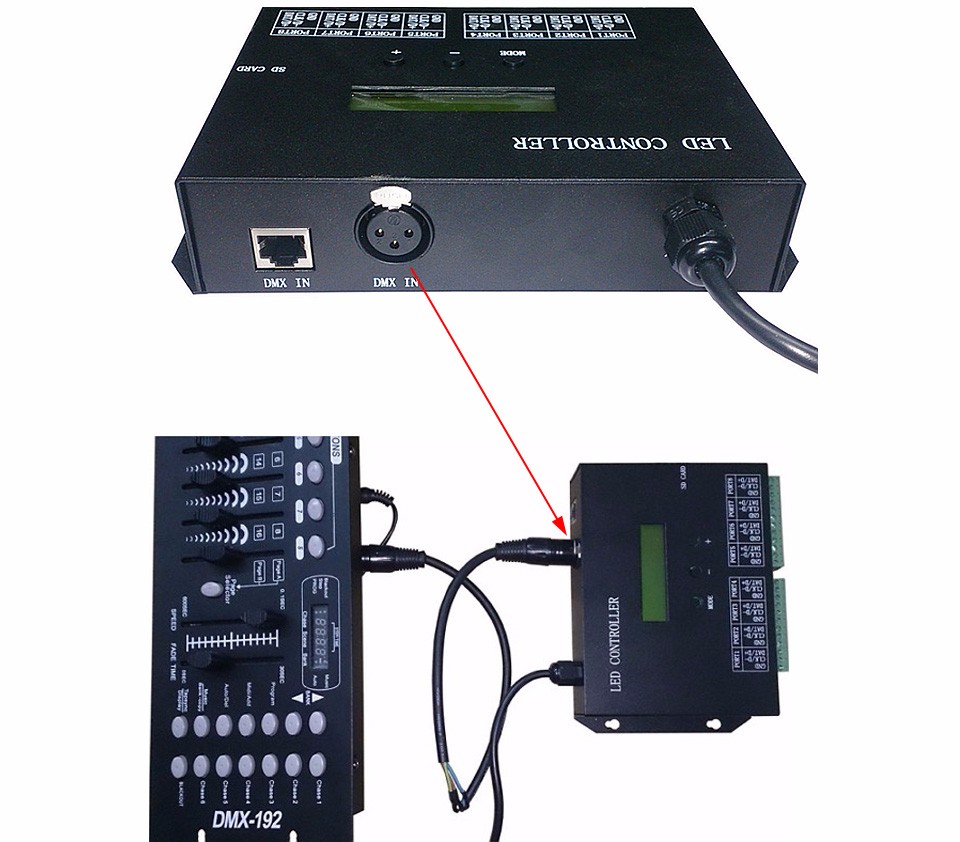

     Connected to DMX console:


    4. Basic Workflow

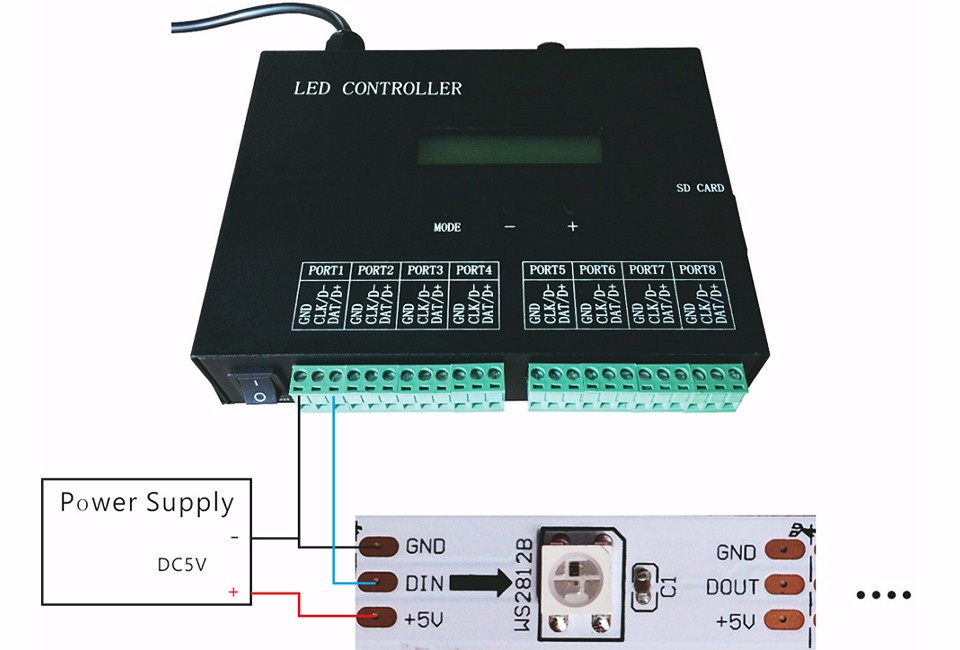

     Step 1. Connect your strips to controller(take WS2812B for example)

    SD card is used to store files programmed by LED Build.


    H803SA has 8 ports, each port control maximum 1024 pixels.

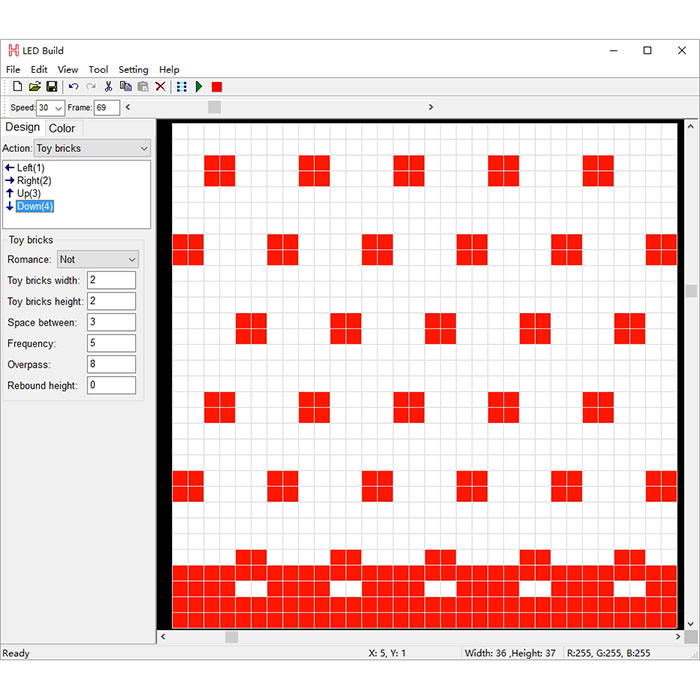

    Step 2. Program with LED Build

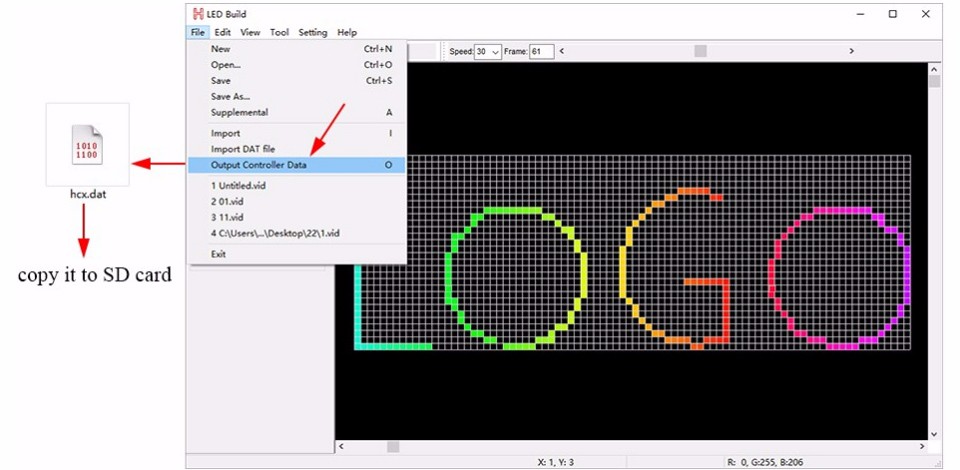

    Step 3. Store programs with SD card
    Then insert SD card, power controller on.

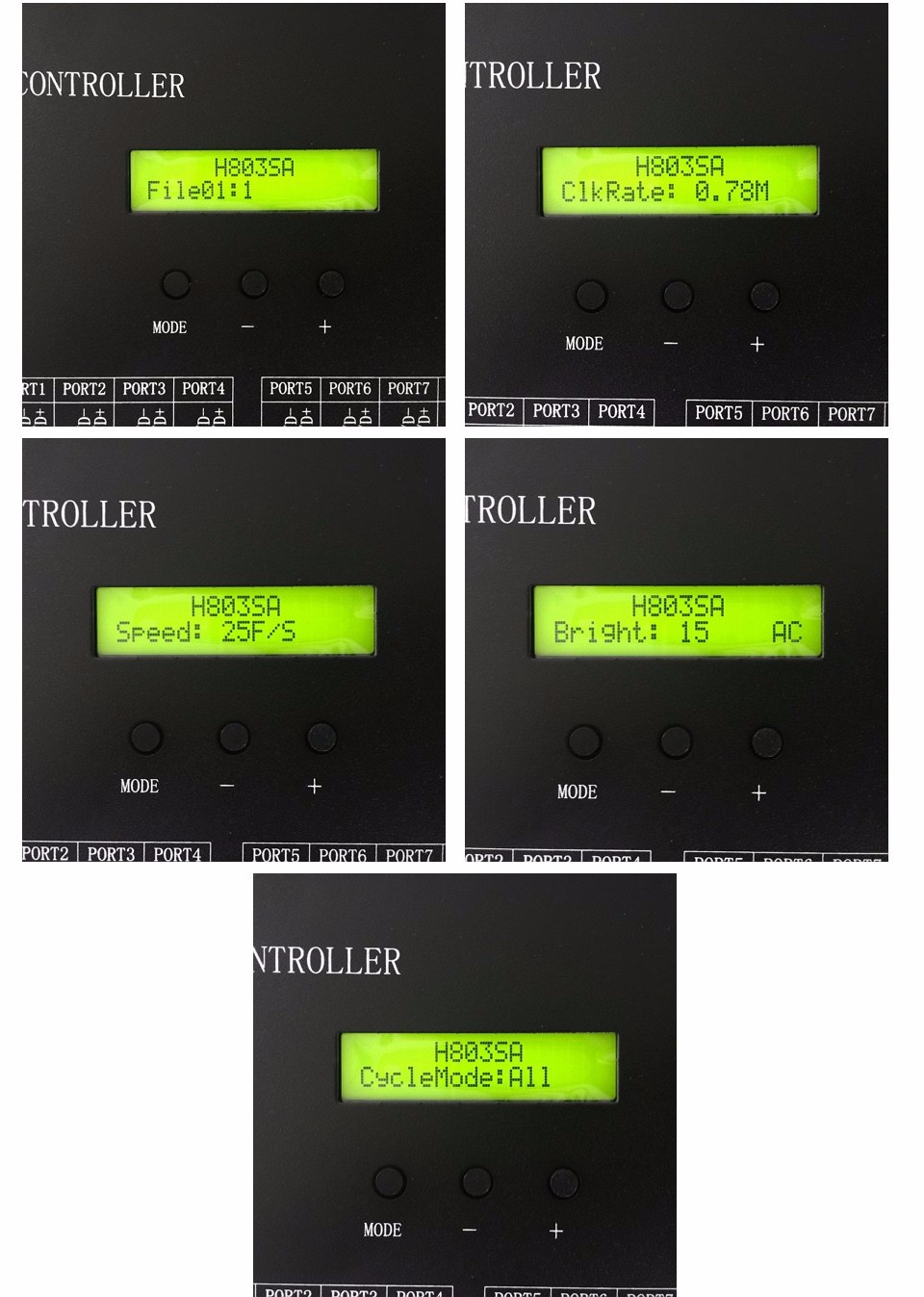

    Step 4. Use three buttons to set lighting

    5. Work with DMX Console(programs stored in SD card)

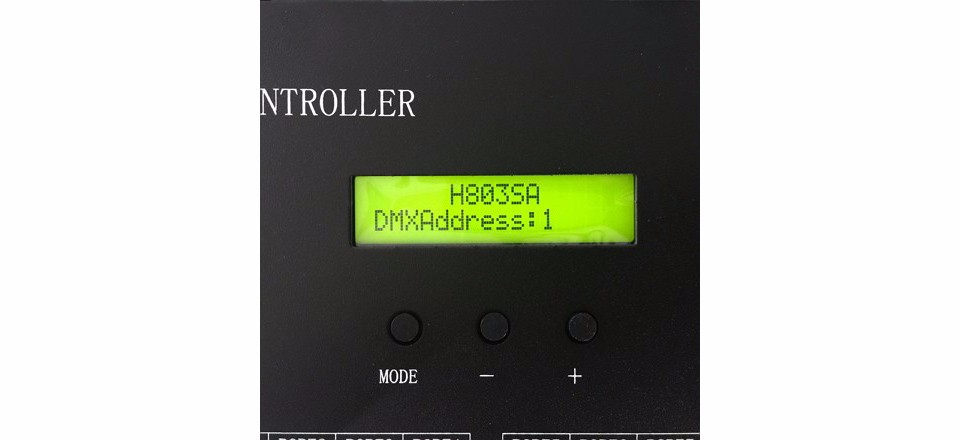

    Set DMX Address


    If DMX Address is 1, use channel 1, 2, 3 on console to switch files, adjust speed and brightness.


    If DMX Address is 2, use channel 4, 5, 6 on console to switch files, adjust speed and brightness.
    6. Specifications

    Input Voltage:   Customized

     Power Consumption:   1W

     Drive Pixels Number:   8192

     Weight:   1KG

     Dimension:   L189 x W123 x H40

     Carton Size:   L205 x W168 x H69
