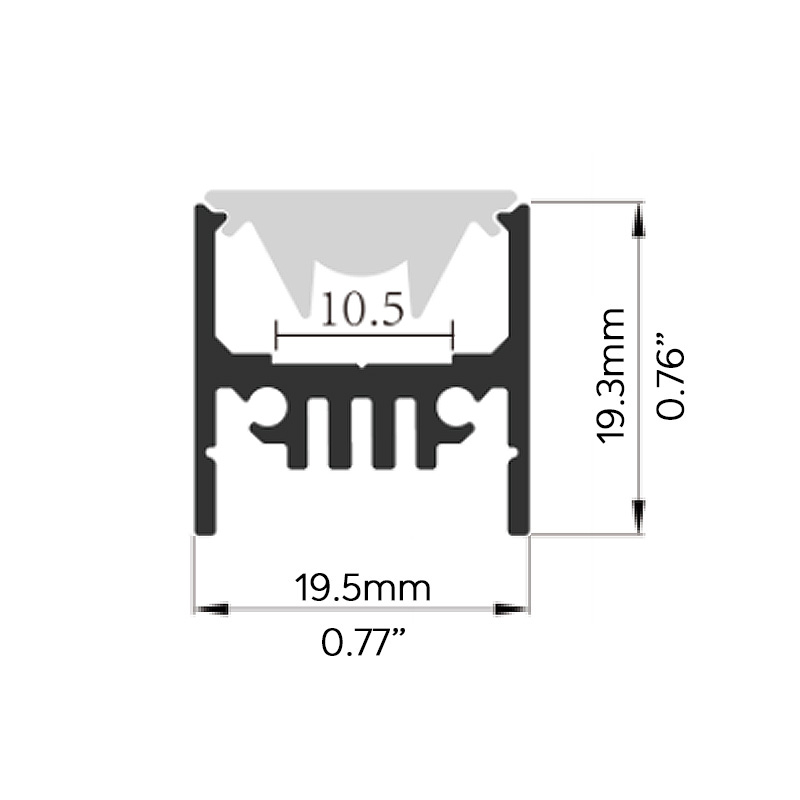

Aluminum LED Strip Diffuser Channel With 30° Lens For 12mm LED Lights Strip
This 12.2mm/0.48in inner width led channel supports surface mounting with 30 degrees lens beam angle, perfect for wall-grazing lighting and accent lighting appalications, suitable for 2116 white led lighting strips. LED aluminum channels as a linear lighting fixture play a role in the led light distribution, led heat management, and led strip protection.
We provide 6 kinds of led diffusers, different light diffuser has different lighting effect, clear, semi-clear, or opal matte PC/PMMA diffuser. Choose the right led light strip diffuser, channel color, and led strip channel length for your LED project. The aluminum channel length can be cut into any length to meet your needs. Endcap without hole to protect the led tape light from dust and external damage. End cap with wire hole to let the led lighting strip connect the led dc power supply or the led controller to power or control the led strip lighting. The led aluminum profiles can be mounted in walls, furniture, or other indoor led linear lighting projects with mounting clips.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required.
The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PMMA opal matte diffuser /PMMA semi-clear matte diffuser /PMMA clear diffuser /PC opal microprism diffuser /PC clear microprism diffuser / PC semi-clear difuser|
|Accessory||End cap without hole, end cap with wire hole, mounting clips, swivel brackets(optional)|
|Apply to||8mm/10mm/12mm 5050/2216/2110/5630/5730/COB/CCT flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
Residential lighting: wardrobe, cabinet, kitchen, furniture, etc.
Commercial lighting: office/supermarket/shopping Mall
Stores shelf LED lighting
Heat sink and physical protection to the LEDs
Interior light design (stairs / storage / floor)
Exhibition boot LED lighting
Backlight or supplementary lighting
