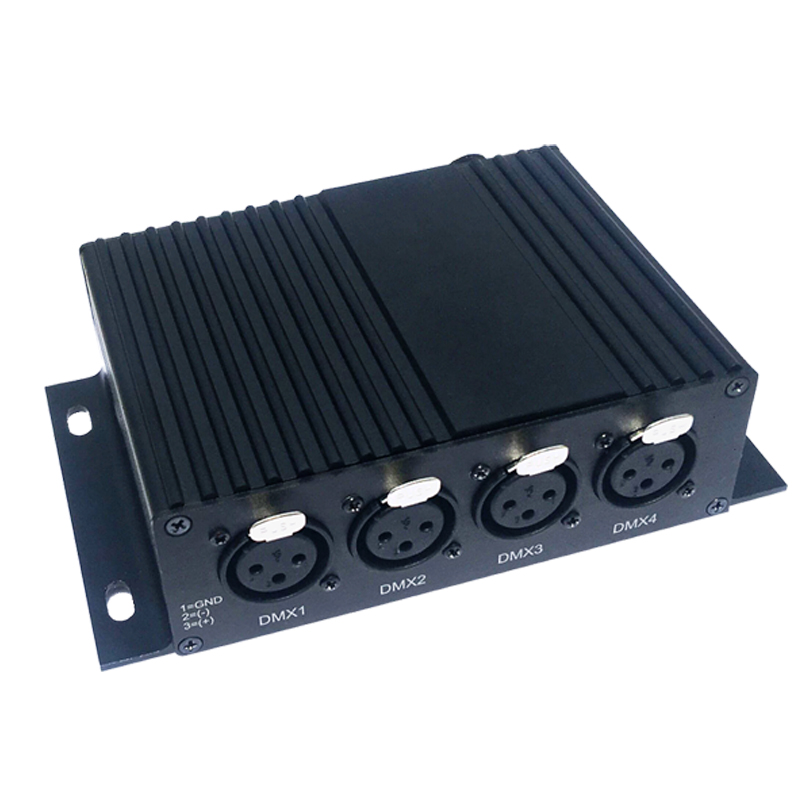

ArtNet 2048 4CH DMX512 Signal Distributor

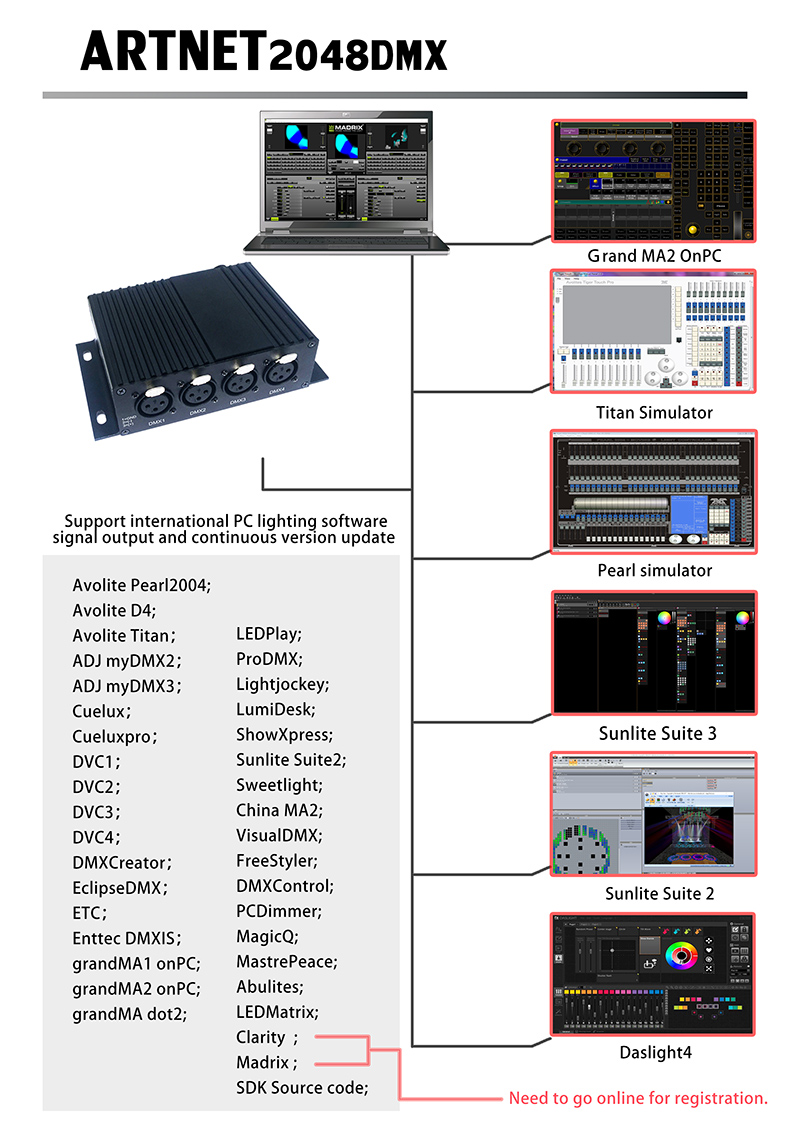

ArtNet2048 Signal Distributor 4 Channels For DMX512 lighting controller, analog lighting, or console extender.
The signal distributor is one of the DMX signal distributor series, which is specially used for shaping and amplifying the DMX512 digital lighting control signal. The input and output interface adopts high-voltage isolation technology, which is suitable for the shaping and amplifying processing of DMX512 signal after distance transmission attenuation. And in the occasions where complete electrical isolation is required between the input and output interfaces since the input and output interfaces are independently isolated, it is possible to avoid burning the precise digital lighting console due to problems such as control lines, decoders, computer lights, silicon boxes, etc., To ensure the safe operation of the digital lighting console, but also to ensure that the DMX signal can be normally transmitted to various lighting equipment, thereby improving the reliability of the entire digital lighting control system.
Standards and Certifications
Input signal: DMX512
Output signal: DMX512
Decoding channels: 512 channels / unit
Total channels: 2048 channels, 4 channels DMX 512
DMX512 Connection: Single or Parallel
Built-in standard: DMX512 protocol
The product shall be installed and serviced by a qualified person.
This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure.
Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.
Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.
