Round LED Light Channel Dome Top Diffuser for Double Row LED Strip Lights

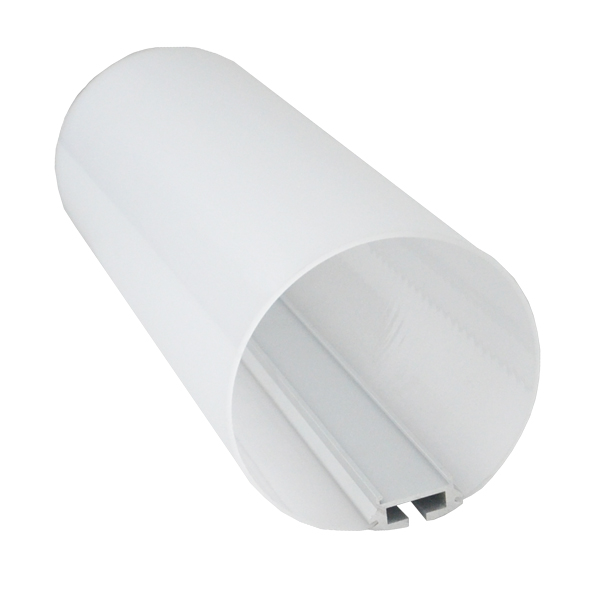

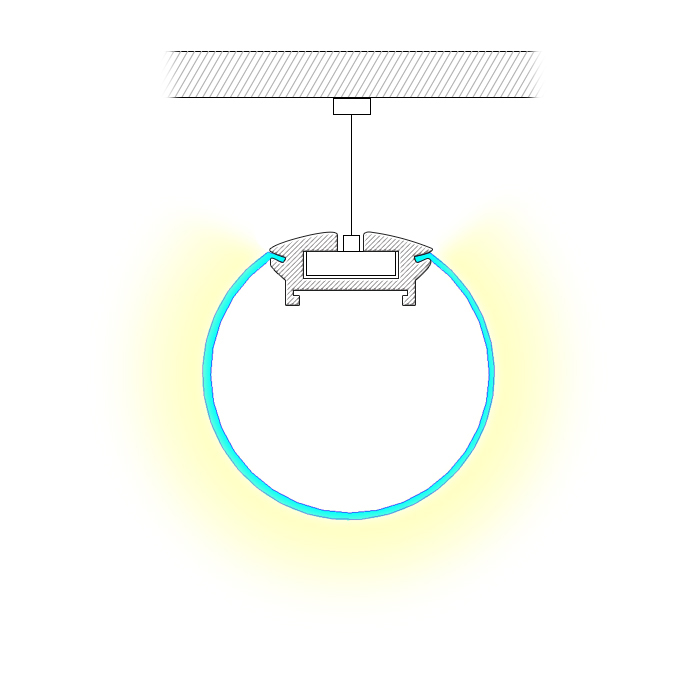

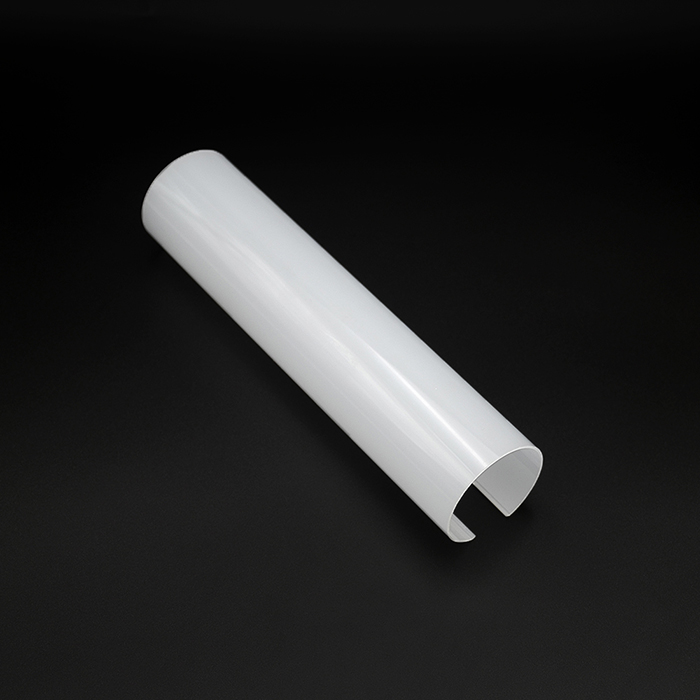

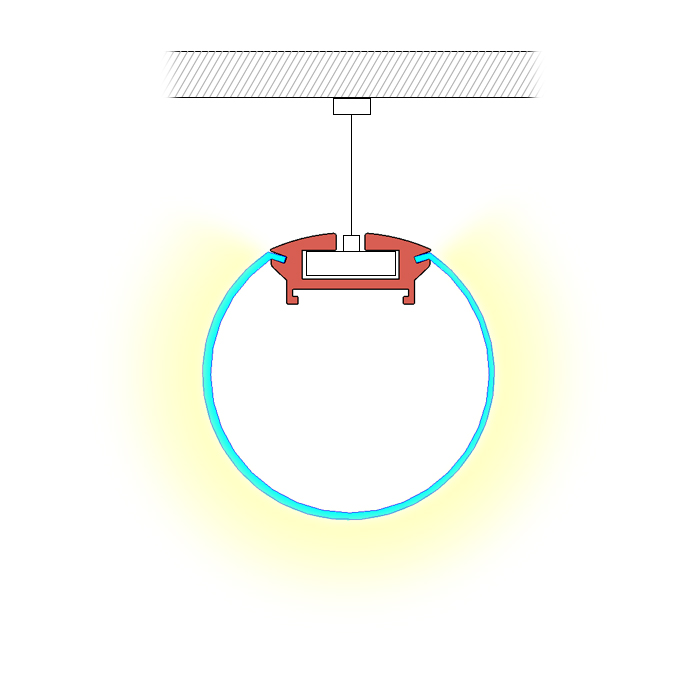

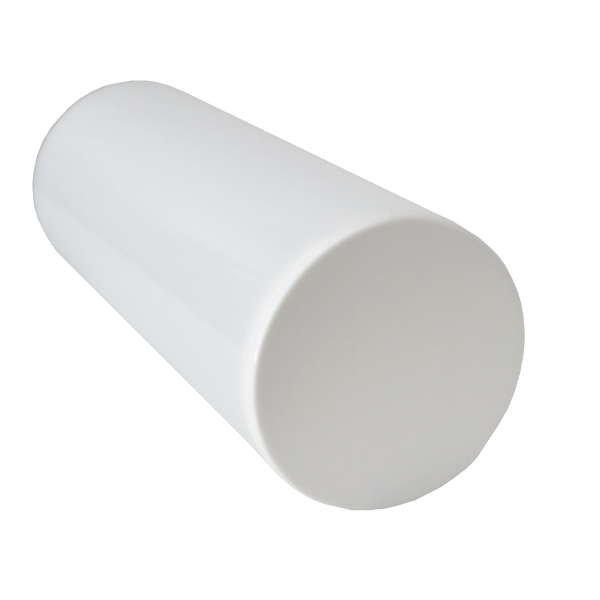

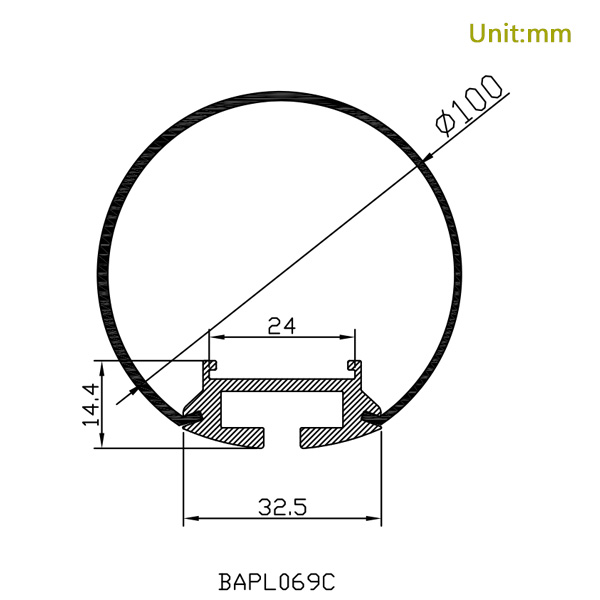

Round led channel for hanging lighting or ceiling lighting, 32.5mm wide, 100mm height, the dome top PC opal matte led strip diffuser cover has a 360-degree large lighting angle, large diffusion area and diffused lighting uniformly, this ceiling led channel is 24mm inner iwdth, suitable for 15mm/20mm double row led strip lights.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material:||6063-T5 Aluminum Alloy|
|LED Diffuser:||PC opal microprism diffuser|
|Accessory:||End cap without hole, end cap with wire hole, suspended kit|
|Apply to:||15mm/20mm double row led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
1. Ceiling lighting
2. Home decor
3. Wall decor
4. Commerial lighting
