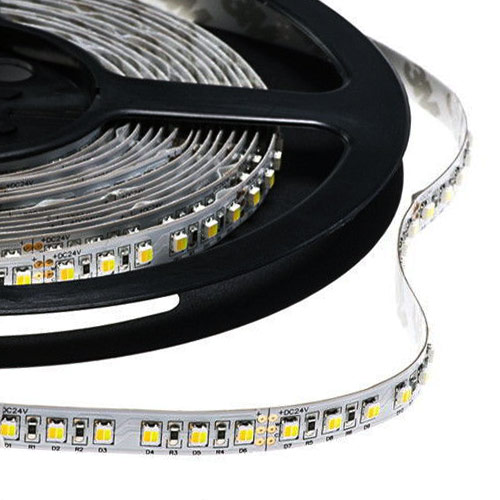

Universal dual white color super bright Waterproof optional Dual Chip LED Variable Color Temperature high power LED flexible light strip. 5 meters (197 inches) long with 600 2-chip / dual phosphor 3528 SMD(SMD:Surface Mounted Devices) LEDs per unit, 16.4ft(5 meters) Per Reel By Sale.
Our brightest super flexible LED dual white color light Strips soft and easy bended for installation. Available in 5 meter (197 in) flexible light strips with adhesive backing and can be stuck just about anywhere. can be cut into 14-LED segments, so you could cut a different length for your project and request. This LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance and depth of color are critical, Suitable for the average home lighting as well as lighting professionals. High color rendering index (+95 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents. 12/24V DC operation. Color temperature can be adjusted with Dual white CCT dimmers (sold separately) from 2500K to 6800K. - Connect LED Dual white CCT Dimmers.
Standards and Certifications
LED Strip Type: SMD 3528
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White+Daylight White
Dimension: 16.4ft/roll, every 14 PCS LED can be cut
LED Quantity: 1200 LEDs per 5meter (16.4 ft) [600 daylight white leds + 600 warm white leds]
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12/24V DC
Working Power: 96W /16.4ft Max 19.2W/M
Lamp Luminous Flux(lm): 7~8lm/LEDs 4800lm/16.4ft
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
CRI (Ra>): 95
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);
16.4/32.8 feet (5/10meter) Connection diagram
65 feet (50meter) Connection diagram
