Color Temperature Pure White+Warm White Series DC24V 3014SMD 1120LEDs Flexible LED Strip Lights 16.4ft Per Reel By Sale

Color Temperature Pure White+Warm White Series DC24V 3014SMD 1120LEDs Flexible LED Strip Lights 16.4ft Per Reel By Sale

Model: FSLSR-CCT-3014X1120

Starting at: $34.98

Free Shipping Worldwide On Order Over $199

Please Choose:

Qty Discounts Off Price
* Discounts may vary based on options above
Qty: -+

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Universal dual white color super bright Waterproof optional Dual Chip LED Variable Color Temperature high power LED flexible light strip. 5 meters (197 inches) long with 1120 2-chip / dual phosphor 3014 SMD(SMD:Surface Mounted Devices) LEDs per unit, 16.4ft(5 meters) Per Reel By Sale.

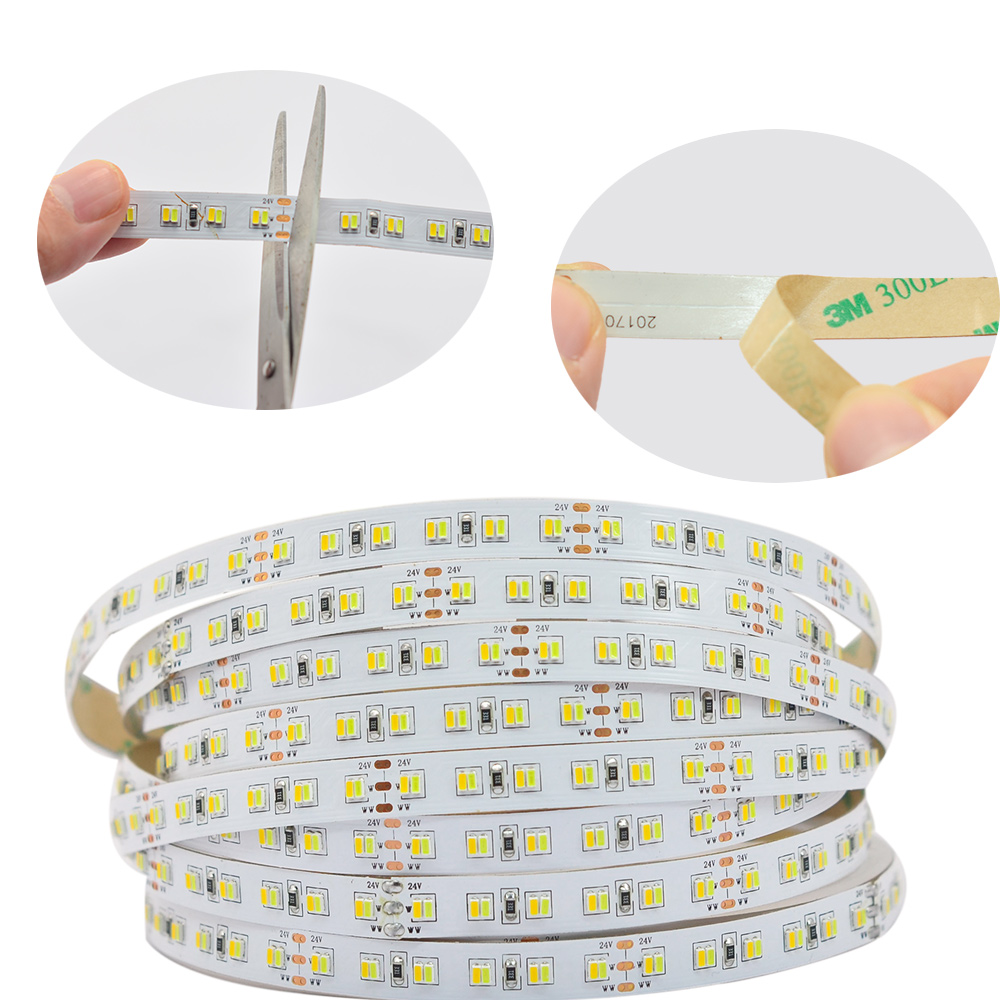

    Our brightest super flexible LED dual white color light Strips soft and easy bended for installation. Available in 5 meter (197 in) flexible light strips with adhesive backing and can be stuck just about anywhere. can be cut into 14-LED segments, so you could cut a different length for your project and request. This LED Light strip is perfect for retail shops, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance and depth of color are critical, Suitable for the average home lighting as well as lighting professionals. High color rendering index (+82 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents. 24V DC operation. Color temperature can be adjusted with Dual white CCT dimmers (sold separately) from 2500K to 6800K. - Connect LED Dual white CCT Dimmers


    Standards and Certifications


    Product Specification

    LED Strip Type:   SMD 3014

    LED Chip:   Super bright Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    Light Color:   Warm White+Daylight White

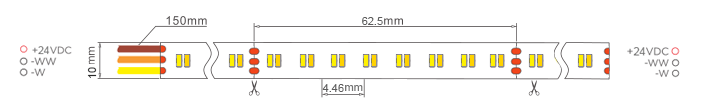

    Dimension:   16.4ft/roll, every 14 PCS LED can be cut

    LED Quantity:   1120 LEDs per 5meter (16.4 ft) [560 daylight white leds + 560 warm white leds]

    Lifespan:   50,000+hours

    Warantty:   3 years

    Dimensions:     L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )

    Input Voltage(V):   24V DC

    Working Power:   5.2amp 125W(High Bright)    2.8amp 68watt(Normal Bright)

    Lamp Luminous Flux(lm):   10~12lm/LEDs(High Bright)   7~8lm (Normal Bright)

    Color Temperature CCT(White):  Warm White(2800-3500k), Daylight White(5000-6500k)

    Beam Pattern:   120 degree

    Water Proof:   Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional

    CRI (Ra>):  82


    Color Temperature



    1. Back/task lighting

    2. Cove LED lighting

    3. Retail LED lighting

    4. Display case LED lighting

    5. Accent LED lights

    6. Under cabinet lighting


    Waterproof Level Description

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);

     IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

     IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);

     IP68 Waterproof (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);


    Installation Instruction



    16.4/32.8 feet (5/10meter) Connection diagram



    65 feet (50meter) Connection diagram
