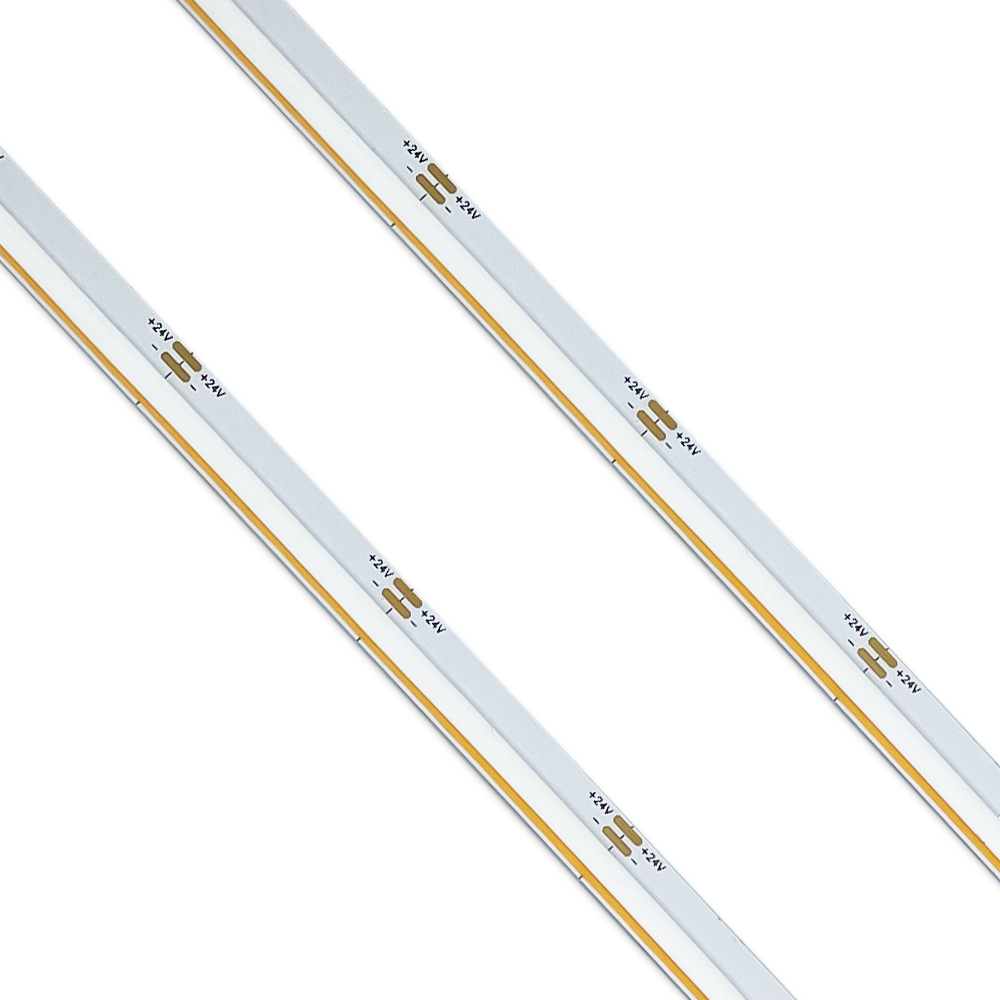

DC12/24V 0.31in Wide 16.4Ft 2400Chips White Side Emitting Flexible COB LED Tape Light

Model: FSLCOB-8MM-480SE
DC12/24V 0.31in Wide 16.4Ft 2400Chips White Side Emitting Flexible COB LED Tape Light
  • DC12/24V 0.31in Wide 16.4Ft 2400Chips White Side Emitting Flexible COB LED Tape Light
  • DC12/24V 0.31in Wide 16.4Ft 2400Chips White Side Emitting Flexible COB LED Tape Light
  • DC12/24V 0.31in Wide 16.4Ft 2400Chips White Side Emitting Flexible COB LED Tape Light
  • DC12/24V 0.31in Wide 16.4Ft 2400Chips White Side Emitting Flexible COB LED Tape Light
  • DC12/24V 0.31in Wide 16.4Ft 2400Chips White Side Emitting Flexible COB LED Tape Light
  • DC12/24V 0.31in Wide 16.4Ft 2400Chips White Side Emitting Flexible COB LED Tape Light
  • DC12/24V 0.31in Wide 16.4Ft 2400Chips White Side Emitting Flexible COB LED Tape Light
  • DC12/24V 0.31in Wide 16.4Ft 2400Chips White Side Emitting Flexible COB LED Tape Light
  • DC12/24V 0.31in Wide 16.4Ft 2400Chips White Side Emitting Flexible COB LED Tape Light
  • DC12/24V 0.31in Wide 16.4Ft 2400Chips White Side Emitting Flexible COB LED Tape Light
  • DC12/24V 0.31in Wide 16.4Ft 2400Chips White Side Emitting Flexible COB LED Tape Light

Select Specifications:

Starting at: $79.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-9
$79.98
10-19
$78.38
20-49
$75.18
50+
$71.98
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Features

    Structure of the chip on board adopts high-quality SMD1021 chips to achieve 8mm/0.31in, and the LED strip has a long service life

    Unique side-emitting ensures the light perception of the LED light strip and has a wider applicability

    Uniform luminous colour, 480Chips/m ultra-dense SMD LED with high brightness, almost no spot on the LED strip

    3000K/4000K/6500K colour temperature optional, single white light and high CRI, light up the environment

    Plastic surface of the light strip is smooth and beautiful, which is conducive to the effective diffusion of light, colour consistency and high luminous efficiency

    DC12 or 24V low voltage input, safe, energy-saving and environmentally friendly, suitable for local lighting, ambient lighting, and mood lighting



    Product Feature

    High quality LED chips, long lifespan

    3000K/4000K/6500K white color optional

    Super dense 480Chips/m high brightness, no spot

    8mm/0.31in ultra-narrow

    DC12V or 24V low voltage input

    SMD1021 side-emitting LED chip

    No flicker, no radiation

    90 CRI high restore and energy saving

    Customize length and waterproof rating

    COB Flexible led strip light specification

    FSLCOB-8MM-480SE





    Standards and Certifications




    Product Specification

    Model:   COB light strip

    LED Chip:   Epistar Chip

    Working temperature:   -40°C - +60°C

    Storage temperature:   -25°C - +40°C

    Product size:   L5000*W8*H2 (mm)

    Light source:   SMD1021 LED chips

    LED quantity:   480Chips/m, 2400Chips/Roll

    Beam angle:   120°

    Colour rendering index:   90

    Input voltage:   DC12/24V

    Power consumption:   12W/m, 60W/Roll

    Luminous colour:   3000K/4000K/6500K optional

    Substrate material:   FPC

    Luminous Efficiency:   80/90/100/110 lm/W

    Working temperature:   -20℃~45℃

    Service life:   50,000 hours

    Certification:   CE ROHS

    IP Rating:   IP20(non-waterproof )/IP67(waterproof heat shrink tube)



    Product list:

    1* 5m/16.4Ft COB led strip light

    If you choose the LED controller in the kit, we will send you V1 + RT1

    If you choose the LED power adapter in the kit, we will send you a 12V or 24V power adapter PSPS-24V-72W



    Product Description

    1. Please choose correct power supply for led strips. The total power of the led strip is about 80% of the power supply, and it cannot be fully loaded to ensure that the power supply works at the correct and stable voltage.

    2. We suggest 5 meters/roll for the led strip. If it is over 5 meters length, the brightness of LED will vary greatly. If the customer can accept the case, length can be made over 5 meters / roll.

    3. Adhesive tape on the back side of the strip, with its superior adhesive and weather resistance, and can be connected to any transparent glass, metal and plastic surface.

    But on some certain surfaces, such as cloth, wood, will affect its function and durability. Please test the adhesion of the led strip before installation.

    4. Please pay special attention to the minimum bending diameter of the led strip is 60mm, so as to avoid direct or indirect damage to FPC and components on FPC, which may lead to damages of the strip.

    5. In order to ensure waterproof and anti-corrosive function , after the power line is screwed into the connector,

    it is recommended to inject the connector with a single component of silica gel (or neutral glass glue, or waterproof grease) and cover the exposed copper wire of the power line for protection

    6. The non-waterproof led strip shall not be completely exposed for outdoor use. Do not touch or install the strip when it is charged.

    7. It is recommended to use switch power supply that has passed relevant safety regulations (with short circuit protection, over voltage protection and over current protection



    Color Temperature

    Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.

    Consider the look and feel you want your project to have.

    What other color lights will be present? What material and color are the materials you wish to light?



    CRI

    CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.



    Waterproof Level Description

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

     IP67 Waterproof heat shrink tube waterproof, PCB is encapsulated with heat shrink tube, with a plastic fastener, better waterproof, For Outdoor);



    Installation Diagram:

    single color led strip light wiring diagram



    Installation Note

    1. Pay attention to handling with care.

    2. Don’t install the product in corrosion, flammable and explosive places.

    3. It is strictly prohibited to use any acidic or alkaline adhesives to fix the product. Neutral adhesives are required.

    4. In order to avoid the danger of electric shock, please cut off the power supply during process of installation, debugging and moving.

    5. Ensure correct and reliable connection of all joints.

    6. The product need anti-corrosion environment, such as, avoiding damp, water drop or other adverse elements.

    7. The LED strip and accessories can't be squeezed or folded.

    8. PCB conductive parts can't be damaged when installation.

    9. Installation must conform to electrical safety standard. The LED strip can only be installed by Professionals.

    10. Ensure power supply transform operating load with transformer

    11. When install on metal or conductor surface, insulation protection need to be provided to the contact area

    12. Observe positive and negative polarity, ensure correct connection to avoid damaging LED strip.

    13. When installation, please prevent static electricity.

    14. If you have any questions about this product, please consult our salesman.



    Application

     Trademark lighting                              Logo lighting

     Channel letters lighting                       Lightboxes lighting

     Landscape layout lighting                    Stage decoration lighting

     Sign cabinets                                       Channel lights

     Cove LED lighting                                Edge lit signs

     Canopy illumination                            Off-grid lighting
