DC12/24V 95CRI 16.4Ft 20*16mm Top Lighting Dimmable Flex LED Neon Tube Light
Here is the 20*16mm top-emitting led neon light strip with various solid colors and dynamic light colors (white, red, gree, blue, pink, yellow, CCT, RGB, RGBW), low power consumption than traditonal glass neon lights. This led neon lights adapt LED light source, energy-saving, using food grade silicone material, with soft linear light and no light spot. And the white silicone tube is flexible and IP67 waterproof, suitable for advertising lighting, decorative lighting, and outdoor lighting. IP20 non-waterproof and IP67 waterproof neon light kit are available.
LED Neon Light Kit:
If you choose the LED power supply in the kit, we will send you PSPS-12V-96W and PSPS-24V-96W (the power and input voltage of the LED power supply depending on the power and input voltage of the strip light)
If you choose the LED strip + IP67(controller+power supply), we will send you a WL5-WP led controller for single color/CCT/RGB/RGBW/RGBCCT led strip lights and PSWP-12V-100W or PSWP-24V-100W (including an AC plug) waterproof led power supply.
Standards and Certifications
|LED Product Type:||Neon Signs Lights 16.4ft Top Emitting|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Colors:||2700K/3000K warm white, 4000K natural white, 6000K daylight white, red, green, blue, pink, yellow, CCT, multi color RGB, RGBW|
|LED Quantity:||96/120 LEDs per meter, 37LEDs/Ft(single color and CCT, RGB); 29LEDs/Ft(RGBW)|
|Luminous Way:||Top emitting|
|Input Voltage(V):||12/24 VDC|
|Working Power:||80W /16.4ft Max → Informations About LED Power Supply|
|Material:||Food grade silicone|
|Waterproof Rating:||Waterproof IP67|
|CRI(Ra>):||95 (single color/CCT)|
|Beam Pattern:||120 degree|
How To Install LED Neon Lights?

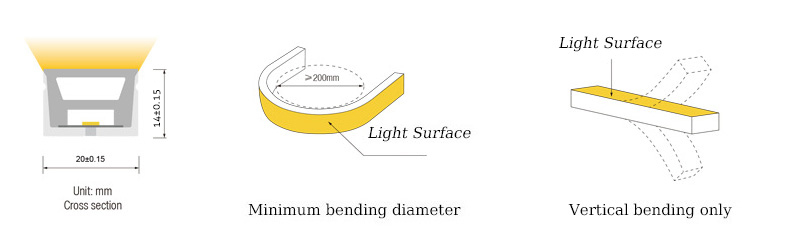

1. Cut and install led neon sign light:

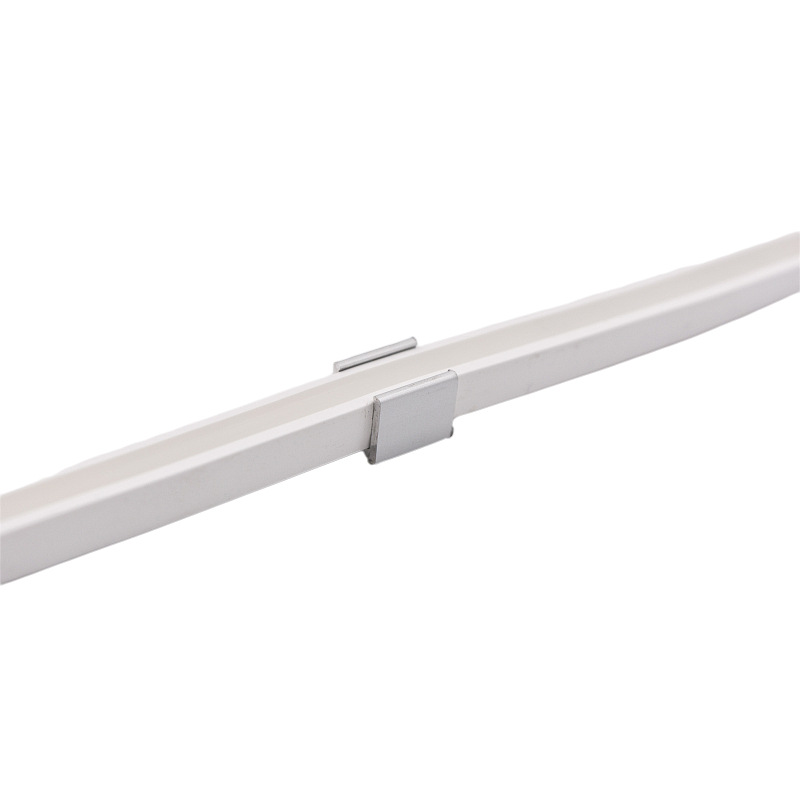

There are three installation methods for the led neon strip lights. One is to install with mounting clips, per meter 2 PCS. The second is to put the flex led neon tube light into the aluminum channel for linear lighting projects. And the third is to use flexible profiles for curved path lighting, which has great bending freedom.
3. How to Repair LED Neon Strip Lights?
a. Single color LED neon light signs wiring diagram:
b. CCT adjustable white neon light signs wiring diagram:
c. Multi-color RGB neon lights wiring diagram:
d. Color changing RGBW neon light wiring diagram:
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
