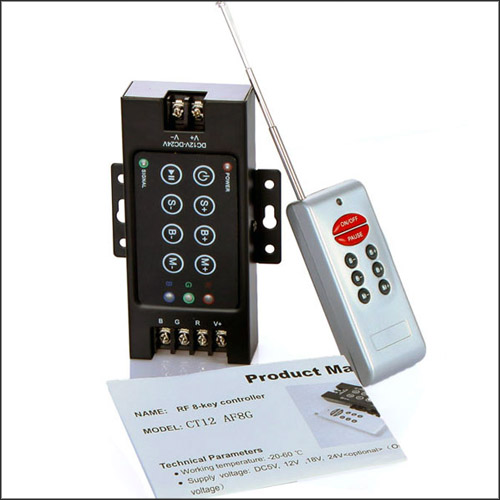

This 8-key controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible strip light, wall washer lamp, glass curtain wall light and so on;It has power-fail memory, synchronized indicator light show and other functions. At the same time,it has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
Operating temperature: -20-60 ° C
Supply voltage: DC5V, 12V ,18V, 24V
Output current: ≤10A(each channel)
Output power: 12V:<288W, 24V:<576W
Static power: 1W
Connection method: common anode
Control distance: 30 meters
External dimension: L121ΧW53ΧH25 mm
Packing size: L150ΧW76ΧH51mm
IR Remote Control:
Power supply mode: AAA * 3
Supply voltage: 1.5V * 3
Transmission frequency: 2.4Ghz
Standby power consumption: 0.015mW
Standby current: 60uA
Working current: 200uA
Emission current: 10mA
Remote distance: about 30m
Standby time: 6 months
Remote control weight: 94g
Direction for use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;

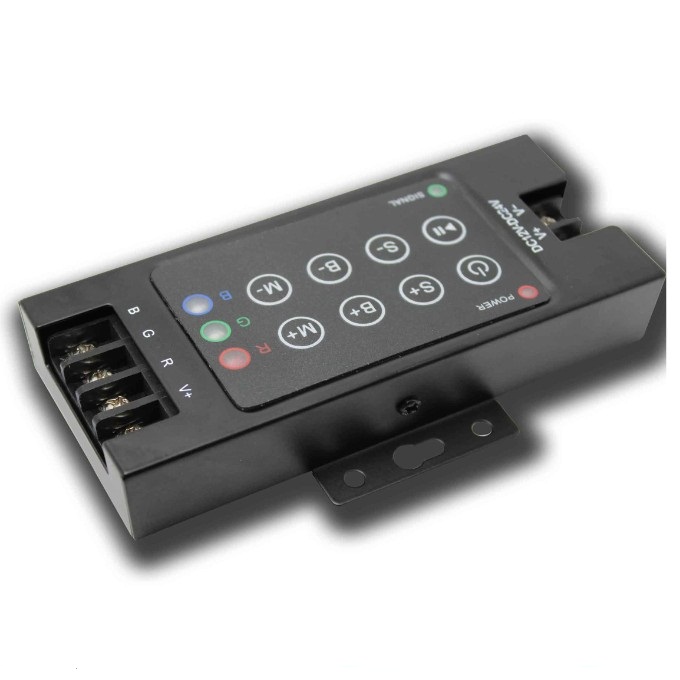

2. Adopt film button for controlling,there are 8 buttons in all, the funtion of each key as follows:
(1): you could turn on/off controller at any time;
(2): Play/pause button,it is convenient for you to see the static effection of led; S
(3)+: The step of the speed change add 1 by each pressing; S-
(4): The step of the speed change subtract 1 by each pressing; B+
(5): A brightness control button,the step of the brightness add 1 by each pressing; B-
(6): The step of the brightness subtract 1 by each pressing; M+
(7): The NO. of patterns add 1 by each pressing;(refer to the following form) M-
(8): The NO. of patterns subtract 1 by each pressing;
Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Supply voltage of this product is 12/24 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.
Connect according to the Wiring Schematic drawing
Controller can control a maximum of 30 meters of our Flexible RGB LED Strip. Over 30 meters, the strips have to connect with an amplifier to reinforce the transmission of signal. Use one RGB Amplifier for every 15 meters of additional LED Strips.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Not suitable for automobile applications

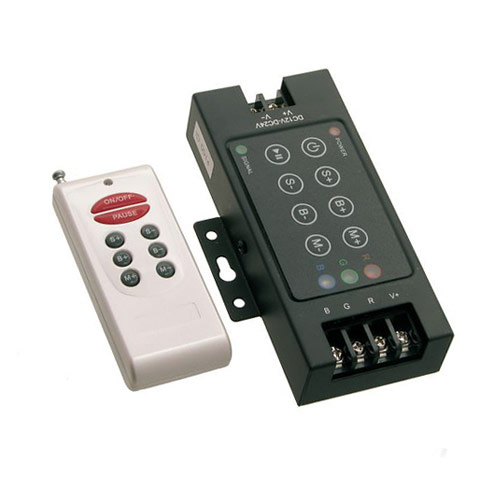

1 x 12A RGB LED Remote Controller

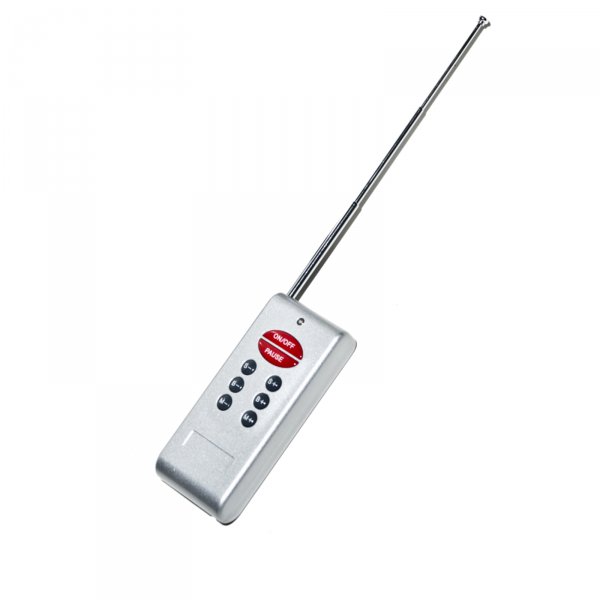

1 x RF Touch Remote Control
