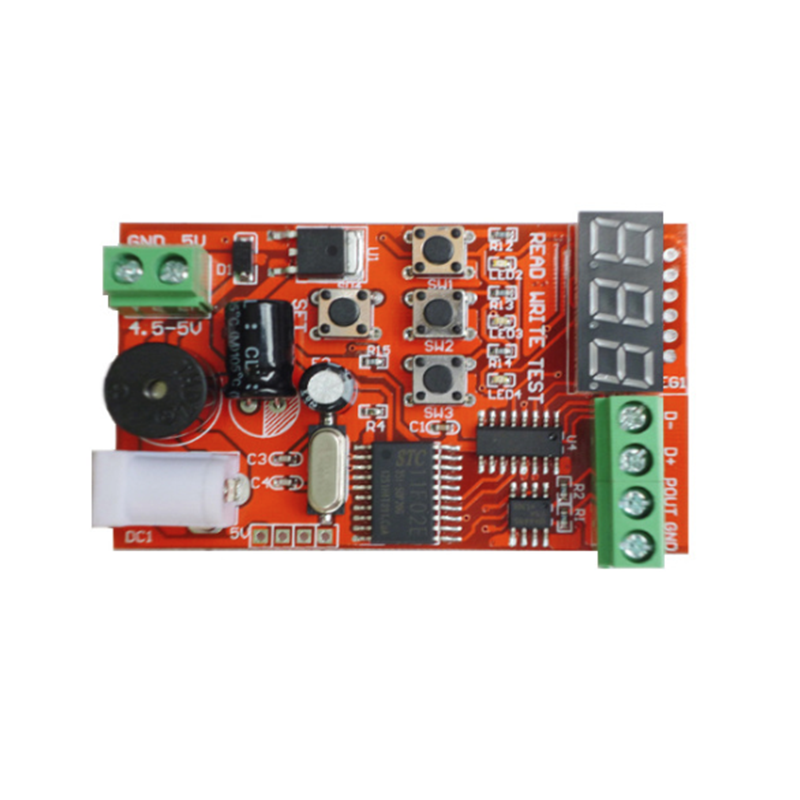

DMX512 Auto-Write Address Coder, Power Via DC9-24V/ 5V Lithium Battery, DMX512 Encoder Apply For DMX512 Decoder and DMX512 Programmable IC LED Lights Projects
1. Press SET key, add 1 to the value of digital tube (long press SET key, the address displayed by digital tube will be quickly added 1, select the address to be written.
2. Press the WRITE key and write the address to the driver. After 1 second or so, the buzzer will ring and the code will be written successfully.
Drive an address to occupy 3 channels, so the corresponding address is 1-170, parallel auto-write address time is longer.
3. When the "READ" button is pressed, the buzzer rings and the code is READ successfully, and the corresponding address is displayed on the digital tube.
4. When the TEST button is pressed, the LED light of the corresponding address will be the change of gradually brightened or dimmed.
* support writing DMX512 driver address code,1-170 addresses
* support to read DMX512 driver address
* support DMX512 driver detection
Standards and Certifications
Input voltage: 9V - 24V DC ( depending on the LED used) or 5V Lithium Battery
Input signal: DMX512
Output signal: DMX512
Decoding channels: 512 channels / unit
LED brightness levels: 256 (8bit / CH)
DMX512 Connection: Single or Parallel
Size: 68mm x 42mm x 14mm
Built-in standard: DMX512 protocol
The product shall be installed and serviced by a qualified person.
This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof enclosure.
Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.
Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.
Single Write Coder Wiring Diagram
Parallel Auto Write Coder Wiring Diagram
How to use the DMX512 Write-address coder? Please look at the following.
1. Please connect the A&B output interfaces of the write-address coder to the input interface of the LED strips. Then please turn on the power supply of LED strips and write-address coder. The LED strips will flash, on&off.
2. Please short press the key of "UP", the screen will display "001", if this is the address you want to write for the first LED, please turn to step 7 directly.
3. Please short press the key of "FUNCTION", the display will flash.
4. Please short press the key of "UP", the value of flashing display will add 1.
5. Please short press the key of "FUNCTION", then the display will flash and value shifts, then please repeat steps 4 and 5, until you get the correct address value.
6. After you input the DMX address value, please wait for about 3 seconds till the display stops flash.
7. Please long-press the key of "UP" for more than 3 seconds, and the display will show flashing "- - -", then release the key.
8. Please wait for 2-3 seconds, when the LED strips show Green color, it means that you write DMX Address successfully.
9. After you finished, about 2 seconds, the display will show the DMX address add 3 automatically( default is 3 channels).
And then, you can press the key of "UP"( repeat steps 7-9) to write the address for another LED strips.
Please note: When you long-press the key of "FUNCTION", the display will show 3CH, you can short press "UP" key, and then you can change the default channel quantities.
