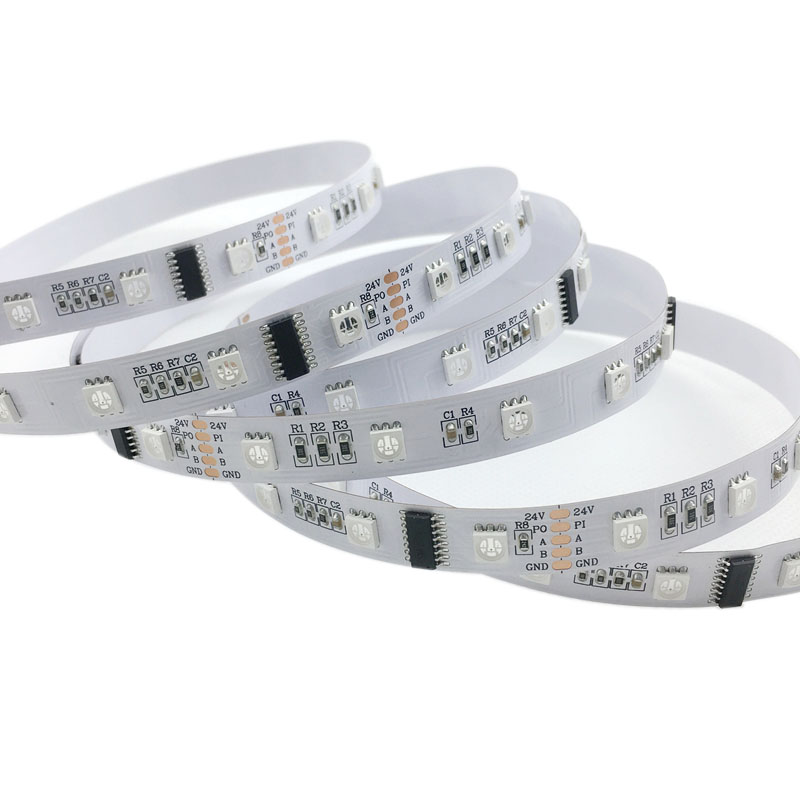

Our light strip useFPC as the base which has good flexibility ,good conductivity, good heat dissipation, bending resistance, can be bent into any shape .

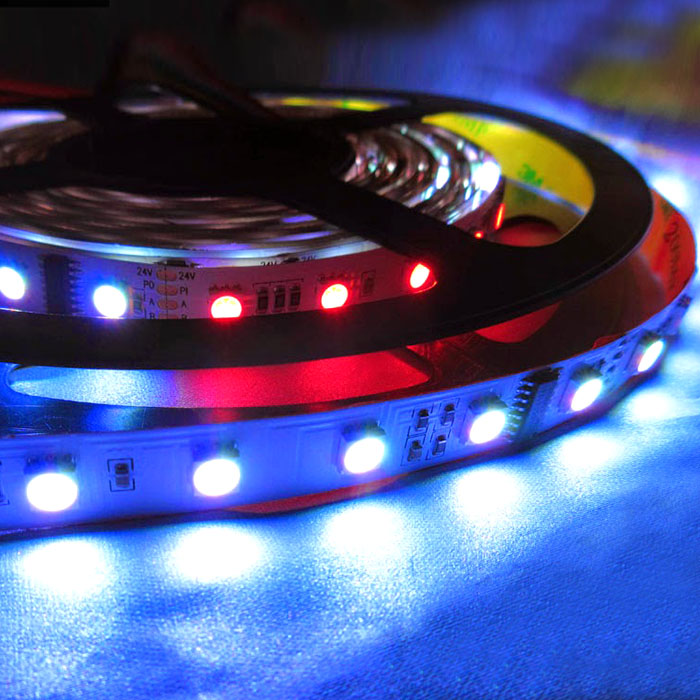

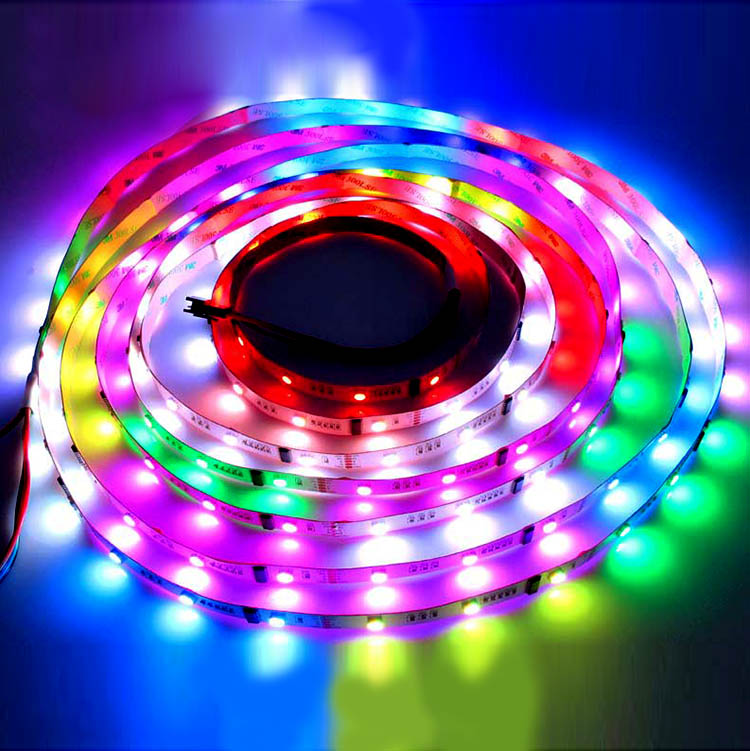

Using SMD5050RGB lamp beads, external driver chip DMX512. It is addressable, programmable digital light strip
Compatibility and expansion DMX512 (1990) signal protocol, the control method is differential parallel, made by 485 decoding module, has very good anti-interference ability.
Can edit the program after installation and can design the lighting effect as you like .
Using low-voltage DC24V power supply, users use more secure
Can be made into a waterproof level of diversification, Epoxy waterproof (IP65), All inclusive casing waterproof (IP67), Casting injection (IP68), And the latest technology extrusion (IP68)
In order to ensure that you use this light strips in the process of the front and behind light of the same brightness, pls supply power at both ends of the led strip lights or every 5 meters need to supply power seperately.
This is our recommended T-1000S Programmable controller link. We are professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Standards and Certifications
LED Strip Type: SMD 5050 DreamColor 240LEDs/16.4ft
LED Chip: DMX512 IC super brights Chip
Board material : FPCB
Packing : 5 meters (16.4ft)/roll
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

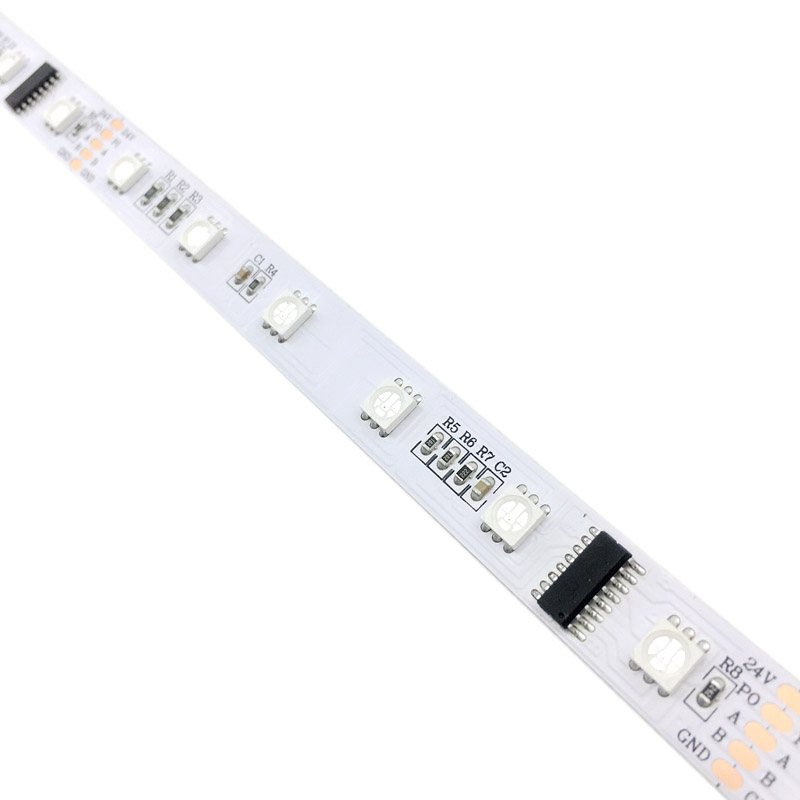

Dimension: 16.4ft/roll, every 6 PCS LED can be cut
LED Quantity: 48 LEDs per 1meter (3.28 ft)
IC Quantity: 8 IC per 1meter (3.28 ft)
Warantty: 3 years
Grey level : 256
Dimensions: L500cm(127 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in )
Input Voltage(V): 24VDC
Working Power: 57.6W/16.4ft Max
Lumen Per LED: 20-22Lumen 292lm Max /Ft
Beam Pattern: 120 degree
Water Proof: Waterproof IP68 ，IP67 ,IP65 and NON-waterproof

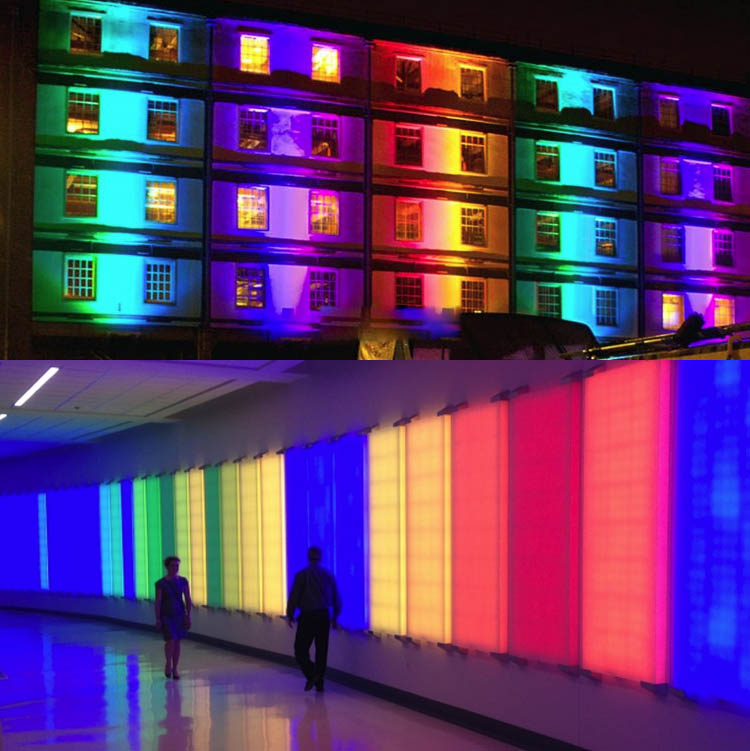

This product is suitable for advertising signs, hotels, bars, KTV, nightclubs, bridges and other exterior lighting and interior lighting project.
Waterproof Level Description
Flexible lighting strip connection diagram
DMX512 Console Connection diagram:
