DMX512 RGB DC24V 50IC 300LEDs Dream Color Programmable Parallel signal - HTTP Breakpoint Resume Transmission Madrix Control Flex LED Strip Lights, 16.4feet/roll

Model: DCFLS-DMX512-300X

Starting at: $100.00 $74.9825% off

Free Shipping Worldwide On Order Over $199

Please Choose:

Operating Voltage :



Length:





Qty Discounts Off Price
1-4
$74.98
5-19
$73.48
20-49
$71.23
50+
$67.48
* Discounts may vary based on options above
Qty: -+
ContactUs

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

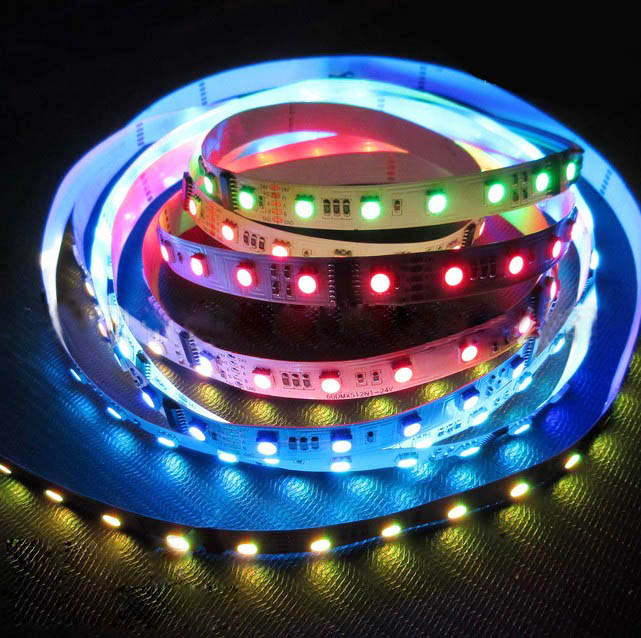

     256 brightness display and 24-bit color display. Each pixel can have its own color and brightness. You can control them individually and set them to any color or animation you want.

     Work great with Arduino or SPI controller or programmable led controller, ready-to-go library, Fast LED library and Raspberry Pi, etc. It’s very easy to program.

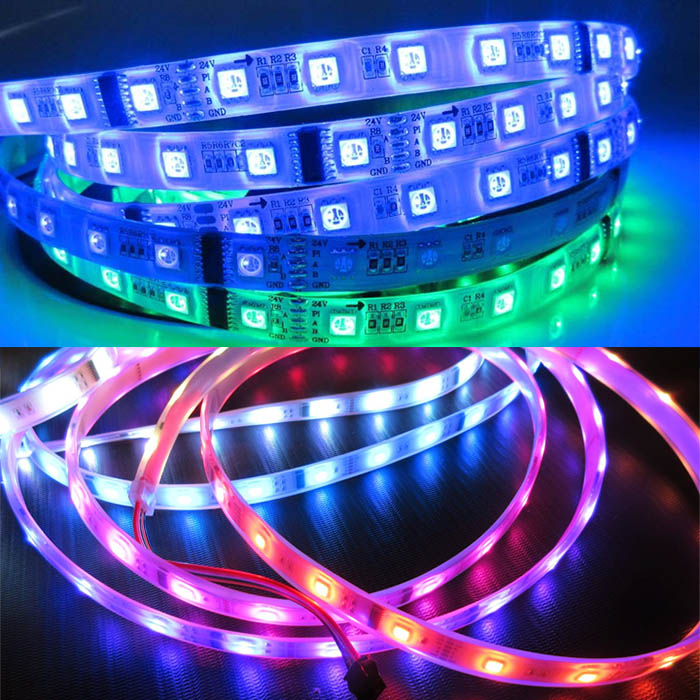

     The strip is made of flexible PCB material, and comes with a adhesive backing and can be stuck just about anywhere, IP67 waterproof Covered with clear silicone weatherproof sheathing, which protects it very well and makes it easy to clean. It comes with silicone clips and screws. You can fix it on some place you want.

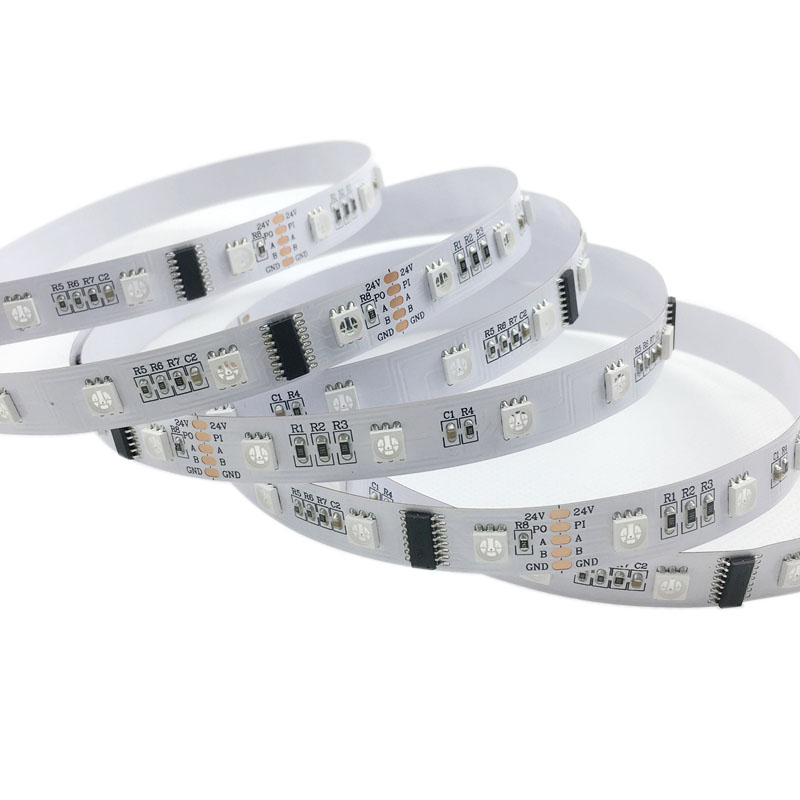

     It comes with 5-PIN connectors and separated power/ground wires on both ends. Each 6LEDs can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.

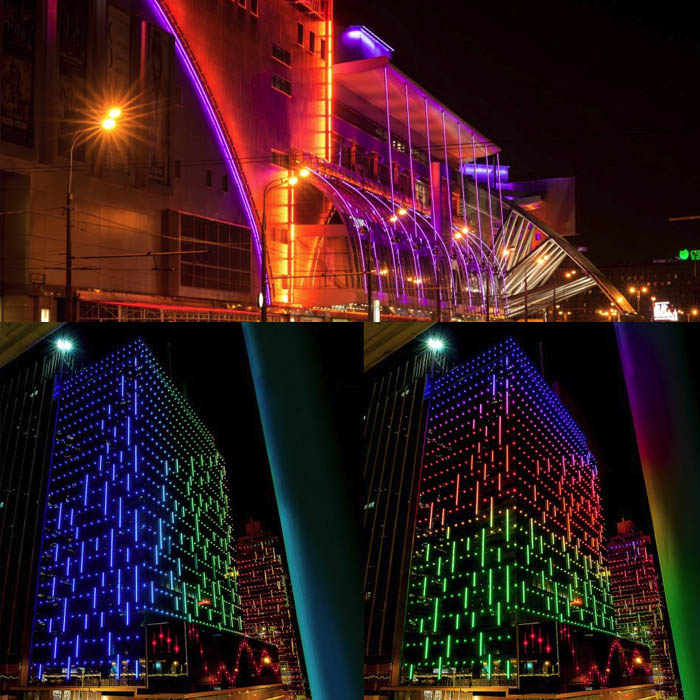

     It can be used to make led screen, led wall, advertising board and widely applied to Outdoor advertising signs, hotel, KTV, bars, wedding party lighting, and so on.

     These DMX512 LED strips are fun and glowy. There are 144 RGB LEDs per meter, and you can control each LED individually! Yes, that's right, this is the digitally-addressable SPI type of LED strips. Only 2 digital output pins are required to send data down (A and B). The PWM is built into each chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you. Pls note, we try hard to get consistent wiring between batch of strip but we can't guarantee it, please double check which side is the input and which is the output by looking at the strip itself for the directional arrows and pin labelling. Red is power, blue or black is ground, green is data pin. If you are getting a less than 2 meter strips, you'll probably also want one plug and receptacle set to make it easy to connect and disconnect.

     The DMX512 chip has built in 1.2 MHz high speed 7-bit PWM for each channel - that means it can do 21-bit color per LED (way more than the eye can easily discern). Once you set the brightness level for the LEDs, your microcontroller can go off and do other things, no need to continuously update it,

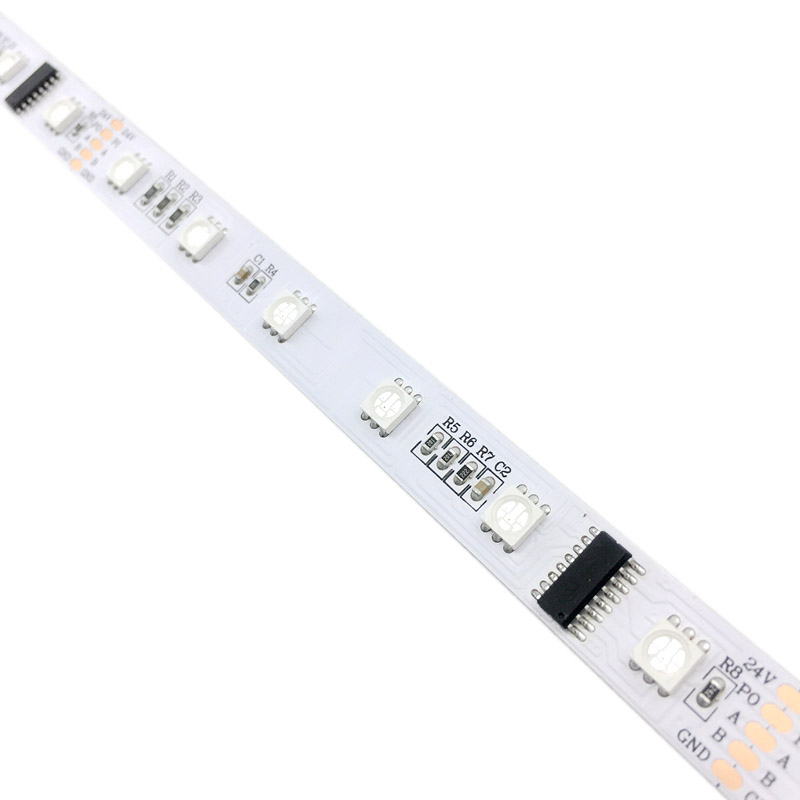

     You can cut this stuff pretty easily with wire cutters, there are cut-lines every 0.82"/2cm (3 LEDs each). Solder to the 0.1" copper pads and you're good to go. Of course, you can also connect strips together to make them longer, just watch how much current you need! We have a 12V/4A power supply that should be able to drive 1 or more meters (depending on use) and a 24V/5A power supply that can drive 5 meters

     Pls Note: Please do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.

      Otherwise it will affect the brightness of the LEDs and the service life of the power supply.

      In order to ensure that you use this light strips in the process of the front and behind light of the same brightness, pls supply power at both ends of the led strip lights or every 5 meters need to supply power seperately.

     This is our recommended T-1000S Programmable controller link. We are professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.



    Standards and Certifications




    Product Specification

    LED Strip Type:   SMD 5050   DreamColor 300LEDs/16.4ft

    LED Chip:   DMX512 IC super brights Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    Dimension:   16.4ft/roll, every 6 PCS LED can be cut

    LED Quantity:   60 LEDs per 1meter (3.28 ft)

    IC Quantity:   10 per 1meter (3.28 ft)

    Lifespan:   50,000+hours

    Warantty:   3 years

    Dimensions:     L200cm(78.8 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in )

    Input Voltage(V):   24VDC

    Working Power:   72W/16.4ft  Max

    Lumen Per LED:   22~24Lumen   1320lm Max /3.28ft

    Beam Pattern:   120 degree

    Water Proof:  Non-waterproof IP20 or  Waterproof IP67/IP65/IP68



    Applications

    City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)

    Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV

    establishments ceiling cavity design)

    Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)

    Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)

    Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)



    Waterproof Level Description

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);

     IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

     IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);

     IP68 Waterproof (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);



    Installation Instruction


    T-1000S programmable controller connection diagram


    DMX512 Console Connection diagram:

    DMX decoder   T-8000D
