Standards and Certifications
Product Specification

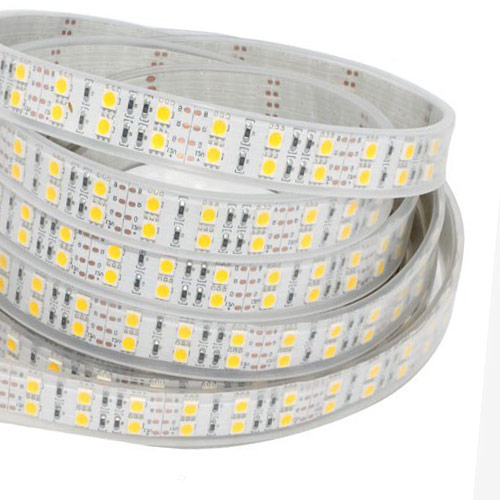

LED Strip Type: SMD 5050 RGB 600LEDs/16.4ft
LED Chip: Epistar super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Dimension: 16.4ft/roll, every 6 PCS LED can be cut
LED Quantity: 120 LEDs per 1meter (3.28 ft)
Lifespan: 50,000+hours
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W2.2cm(0.80 in ) x H0.25cm(0.10 in )
Input Voltage(V): 24VDC
Working Power: 144W 6A/16.4ft Max
Lumen Per LED: 24~26Lumen 15600lm Max /16.4ft
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
Water Proof: Waterproof optional
Applications
-
Back lighting
-
LED task Lighting
-
Retail LED lighting
-
Sign illumination LEDs
-
Automotive accent lighting
-
Display case and accent lighting
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation,PCB both surface and back are encapsulated with plastic Gel, with plastic fastener, top level of waterproof, For Outdoor);
Installation Instruction
16.4ft(5 meter) led strip lights connection diagram
