2CH 8A Constant Voltage RF 2.4G Receiver V2-L For CCT DIM LED Strip Light

MODEL: V2-L
Price based on selections below:
A$22.96
AvailabilityIn Stock
ConditionBrand New
Technical Specifications

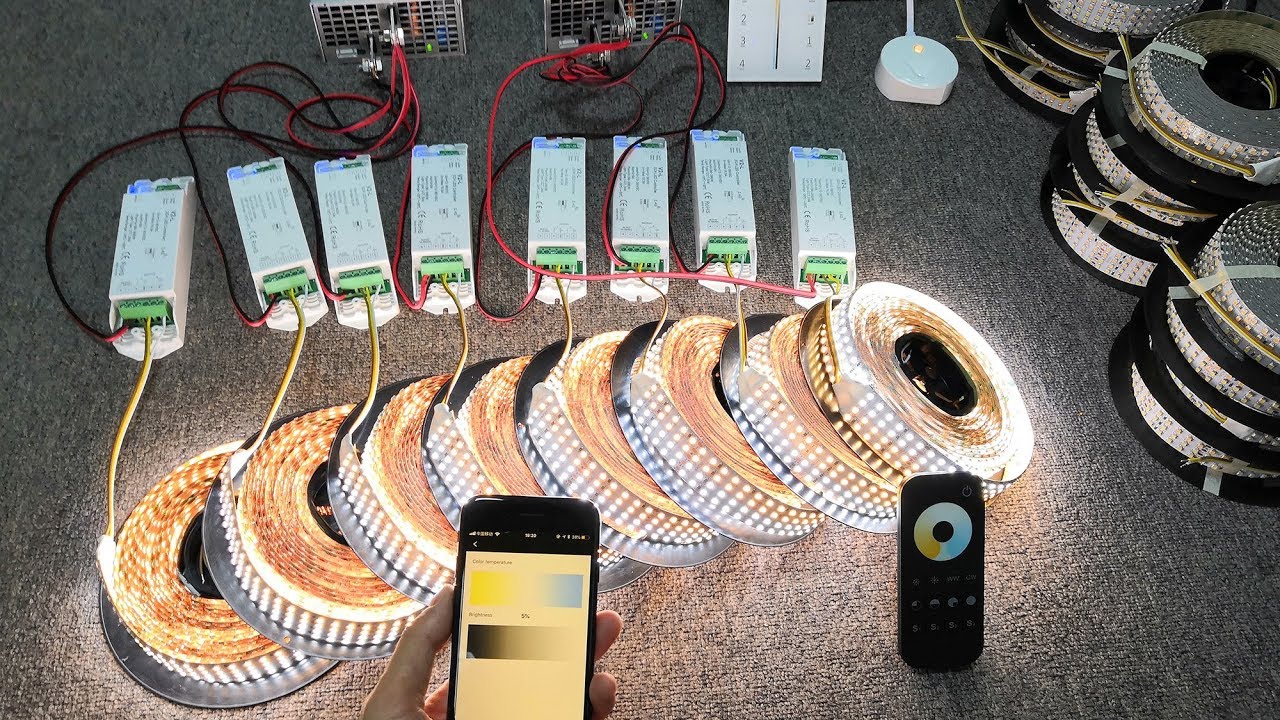

[ VIDEO: Watch on YouTube ]


arrow  Summary

arrow RF controller with 2 channel PWM constant voltage or constant current output,

arrow Default as dual color(WW/CW) controller, need match dual color RF remote.

arrow Can also be used as single color dimming controller, strong compatibility.

arrow Smooth dimming and switch without any flickering.

arrow Full compatibility with a variety of single color, dual color RF remote.

arrow Adopt 2.4GHz wireless technology, remote distance up to 30m,one receiver can accept up to 10 remote control.

arrow Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.

arrow Work with power repeater to expand output unlimitedly



Standards and Certifications

CE FCC  RoHS ISA SGS ISO  warranty-5-year



Specifications Download   PDF



Technical parameter

arrow Model: V2-L

arrow Input voltage: 12-36VDC;

arrow Output current: 2CH,5A/CH

arrow Output power : 2 x (60-120)W

arrow Output type: Constant voltage

arrow Size(mm): 97x33x18

2CH 8A Constant Voltage RF 2.4G Receiver V2 L For CCT DIM LED Strip Light

2CH 8A Constant Voltage RF 2.4G Receiver V2 L For CCT DIM LED Strip Light - photo 22CH 8A Constant Voltage RF 2.4G Receiver V2-L For CCT DIM LED Strip Light - photo 12CH 8A Constant Voltage RF 2.4G Receiver V2-L For CCT DIM LED Strip Light - photo 22CH 8A Constant Voltage RF 2.4G Receiver V2-L For CCT DIM LED Strip Light - photo 32CH 8A Constant Voltage RF 2.4G Receiver V2-L For CCT DIM LED Strip Light - photo 42CH 8A Constant Voltage RF 2.4G Receiver V2-L For CCT DIM LED Strip Light - photo 52CH 8A Constant Voltage RF 2.4G Receiver V2-L For CCT DIM LED Strip Light - photo 62CH 8A Constant Voltage RF 2.4G Receiver V2-L For CCT DIM LED Strip Light - photo 72CH 8A Constant Voltage RF 2.4G Receiver V2-L For CCT DIM LED Strip Light - photo 82CH 8A Constant Voltage RF 2.4G Receiver V2-L For CCT DIM LED Strip Light - photo 92CH 8A Constant Voltage RF 2.4G Receiver V2-L For CCT DIM LED Strip Light - photo 10
