WiFi LED Light Controller 5IN1 WL5/YL5

MODEL: YL5/WL5
Price based on selections below:
$24.99 $22.988% off
AvailabilityIn Stock
ConditionBrand New
Technical Specifications

This LED controller is for single color/CCT/RGB/RGBW/RGBCCT led strip lights, WiFi function, support third-party voice control, smart APP control, no need WiFi iBox, 2.4GHz remote control, available group seeting and timer function, 12V-48VDC working voltage.

Buy on Amazon

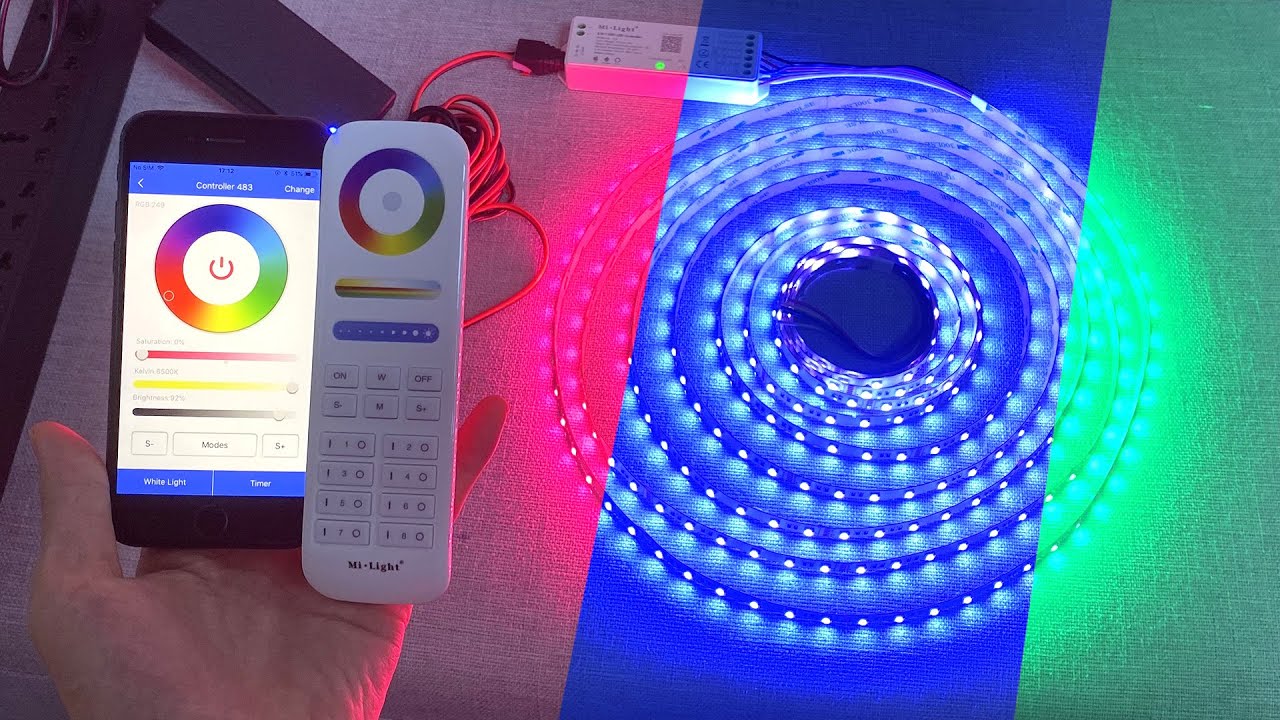

[ VIDEO: Watch on YouTube ]



Product Name: 5 IN 1 WiFi LED Controller

Model No.: WL5

Working Temperature: -20 -60℃

Working Voltage: DC12~48V

Output Current: 6A/Channel

Total Output: Max.15A

Communication Mode: WiFi-IEEE 802.11b/g/n 2.4GHz or 2.4G RF

Control Distance: 30m

Transmitting power: 6dBm

RF: 2.4GHz



How to connect the Miboxer App? how to connect Alexa and Google Home? Please check the following PDF file:

Specifications Download   PDF

WL5 WiFi 5 in 1 LED Strip ControllerWL5 WiFi 5 in 1 LED Strip Controller - photo 1

WL5 WiFi 5 in 1 LED Strip Controller - photo 2WL5 WiFi 5 in 1 LED Strip Controller - photo 3

WL5 WiFi 5 in 1 LED Strip Controller - photo 4WL5 WiFi 5 in 1 LED Strip Controller - photo 5

WL5 WiFi 5 in 1 LED Strip Controller - photo 6WL5 WiFi 5 in 1 LED Strip Controller - photo 7

WL5 WiFi 5 in 1 LED Strip Controller - photo 8WL5 WiFi 5 in 1 LED Strip Controller - photo 9

WL5 WiFi 5 in 1 LED Strip Controller - photo 10WL5 WiFi 5 in 1 LED Strip Controller - photo 11WL5 WiFi 5 in 1 LED Strip Controller - photo 12WL5 WiFi 5 in 1 LED Strip Controller - photo 13

WL5 WiFi 5 in 1 LED Strip Controller - photo 14
