| Select Control Type: | Bluetooth - "LED Chord" APP (Base), WiFi - "Tuya" APP (Base) |
|---|---|
| Select Kit: | Controller (Base), Controller Kit + AC Alexa Switch, Controller + 12V 1A Power Supply |
| Availability | In Stock |
| Condition | Brand New |
Features
Long distance APP remote control via Bluetooth;
Support almost every kind of one-wire or two-wire LED driver IC ;
Brightness adjustable, With 180 kinds of patterns and 18 kinds of color adjustable patterns;
Support setting pixel number and segments number, able to control up to 960 pixels;
DC5V~24V wide range working voltage, preventing reverse connection of power supply;
Automatic memory saving function.
If you need to power the pixel controller separately, please choose the "Controller + 12V 1A Power Supply", then you can drive the controller lights without being affected by the voltage drop in the addressable LED light strips.
AC switch is available to allow Alexa voice control.
App control
Both IOS version and Android OS version
Requires IOS version 10.0 or later;
Requires Android OS version 4.4 or later;
Search”Led Chord” in App Store or Google Play or scan this QR code to download and install the App.
Specifications
Working temperature: -20~60 Degrees Celsius
Working Voltage: DC5V~24V;
Working Current :20mA~130mA;
Remote distance: 30 Meters;
Product size: 85mm*45mm*22mm;
Product weight: 40g ;
Certificates: CE, RoHS;
Package includes: 1x SP107E music LED controller, 1x User manual
Support IC (Support WS2813 WS2815 WS2818 chips)

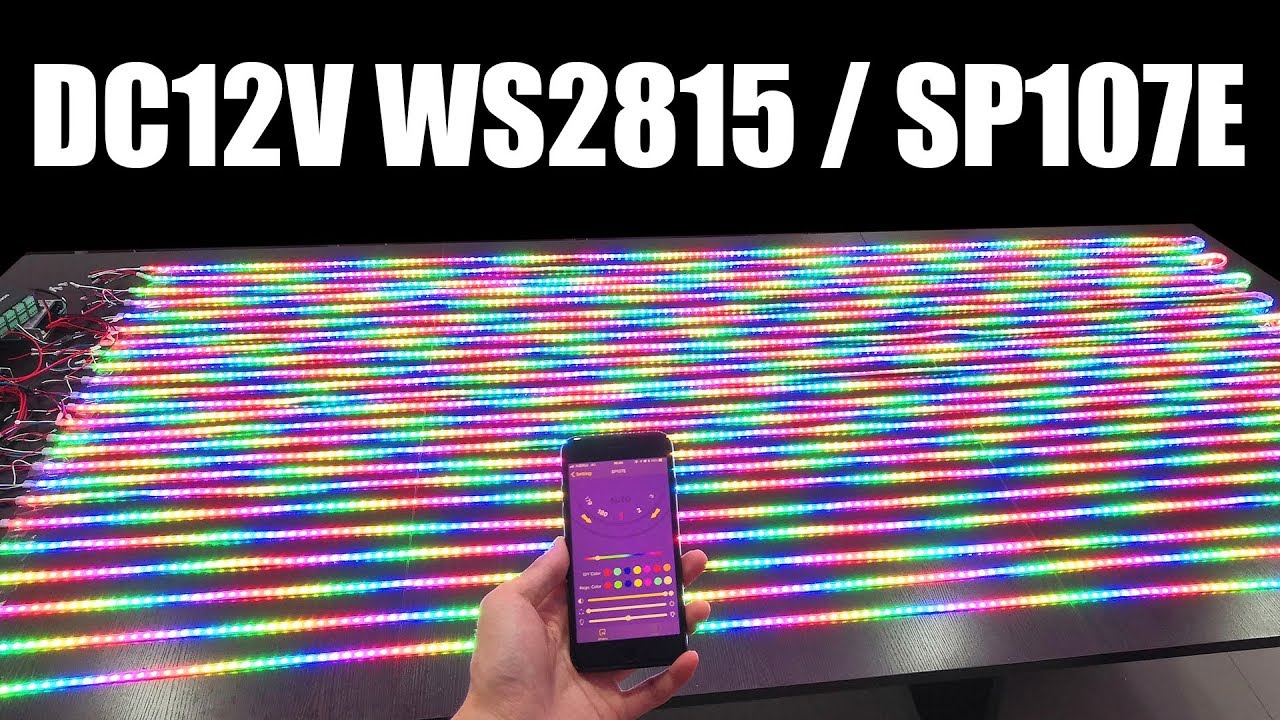

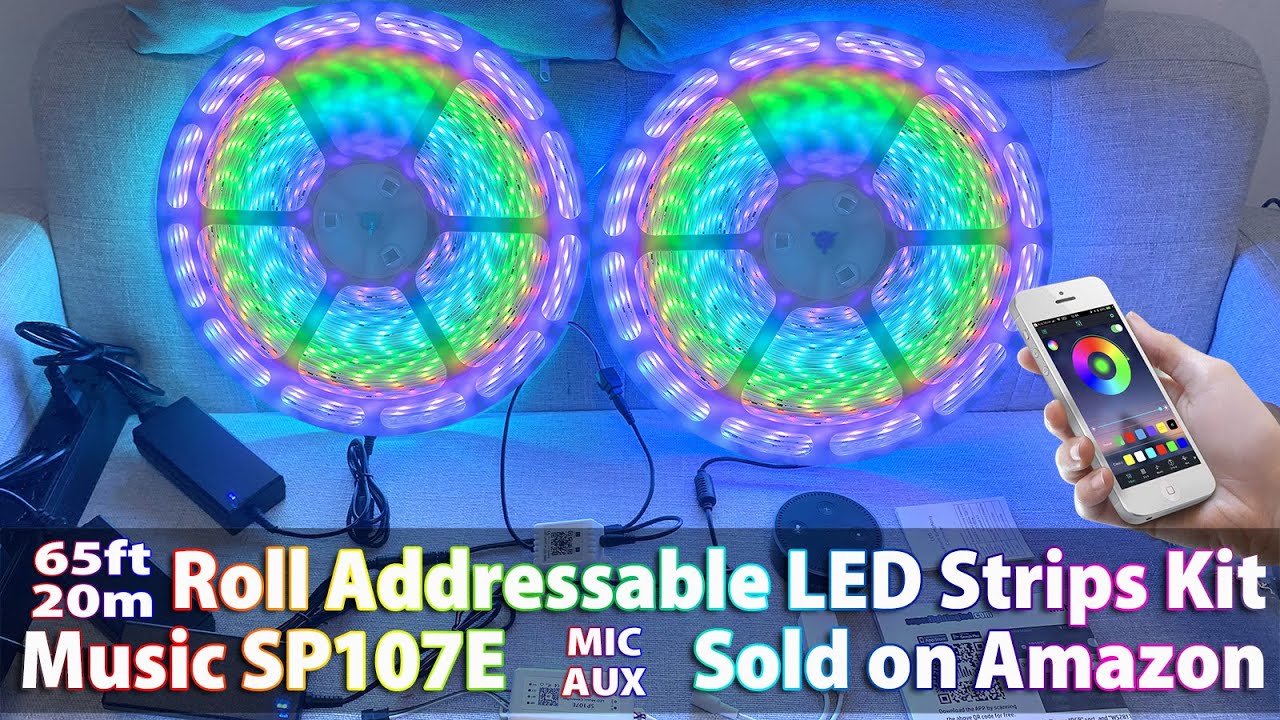

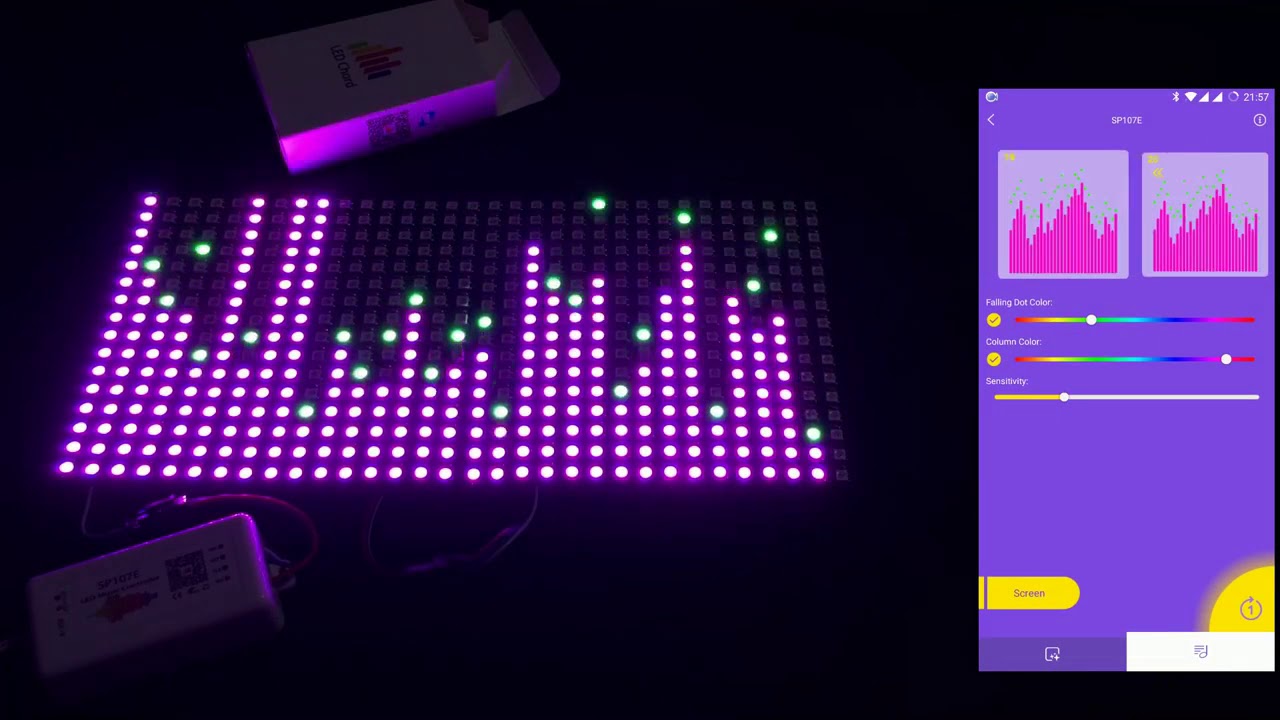

How to connect the WS2813 WS2815 WS2818 led strip lights
[ VIDEO: Watch on YouTube ]
[ VIDEO: Watch on YouTube ]
[ VIDEO: Watch on YouTube ]
