AC110V/220V DC24V 300W 12.5A UL-Listed LED Waterproof IP67 Triac and 0/1-10V Dimmable LED Dimming Power Supply

YSD-24300-TL SuperLightingLED Exterior Power Supply Dimmable (24V 300W)

Features:

 Design for outdoor installations

 Protections: Short circuit / Overload/Over temperature

 Cooling by free air convection

 100% full load burn-in test

 Optional dimming method: TRIAC 0/1-10V PWM dimmable

 Meet the LED lighting

 Products through CE, RoHS Certification

Datasheet Dowmload

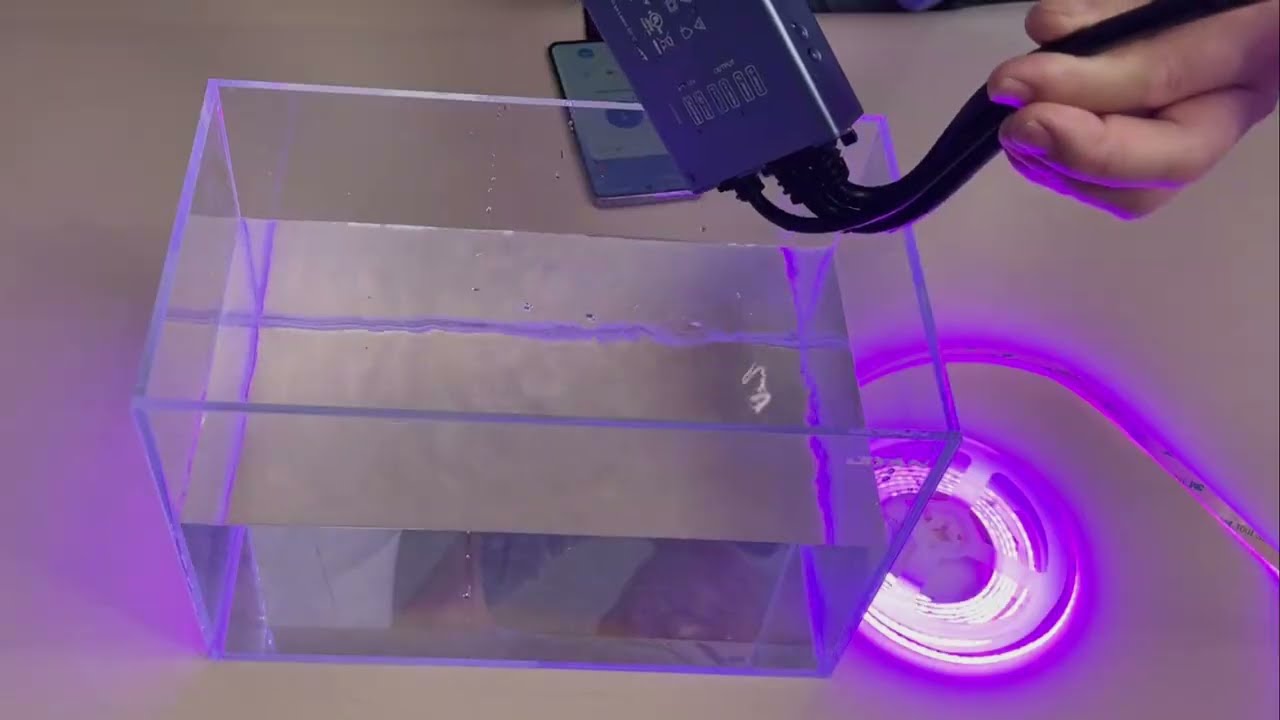

[ VIDEO: Watch on YouTube ]

[ VIDEO: Watch on YouTube ]

MODEL: 24V 300W

Output DC Voltage: 24V

Rated Current: 24V 12.5A

Current range: 0-12.5A

Rated power: 300W

Ripple/noise(max): 200MV

Voltage Tolerance: ±2%

Linear Regulation: ±1%

Load regulation: ±2%

Input Voltage range: 170-250VAC OR 100-130VAC

Frequency range: 50-60Hz

Power Factor(Typ.): PF>0.6/220VAC

EfficIency(Typ.): >84%

AC Current(Typ._): 1.8A/220VAC

size: 295*74*23.5mm

Inrush Current(Typ.): Cold Start 120A/220VAC

Protection Short circuit: Protection type: recovers automatically after fault condition is removed

Overload over: load protected@115-140% above peak rating

Over temperature: protection type: shut down o/p voltage,re-power on to recover
