| Select Control Type: | External IC (Base), Built-in IC |
|---|---|
| Select IC Type: | UCS2904 - 24V (Base), UCS2904 - 12V |
| Select Light Color : | RGB + Daylight White 6000K (Base), RGB + Warm White 3000K (Base) |
| Select PCB Color : | White Background (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Surface Glued IP65 - Adhesive Back, Outdoor Silicone Tube IP67 - With Brackets, Underwater IP68 - Adhesive Back |
| Availability | In Stock |
| Condition | Brand New |
There are 60 Addressable RGBW LEDs per meter, and 10mm wide for the 60LEDs/meter, DC 24V input, and every 6 LED can be cut! Yes, that's right, this is the digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).
The LEDs are controlled by shift-registers that are chained up down the strip so you can shorten or lengthen the strip.
Only 1 digital output pin is required to send data down.
The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.
The UCS2904 RGBW IC is very similar to the SK6812 RGBW IC, and it can be used as a drop-in replacement in most applications because it features the same interface and color order (so LED strips based on the SK6812 and WS2812B can be chained together). The main difference between the two drivers is that the SK6812 is built-in IC, but UCS2904 is external IC.

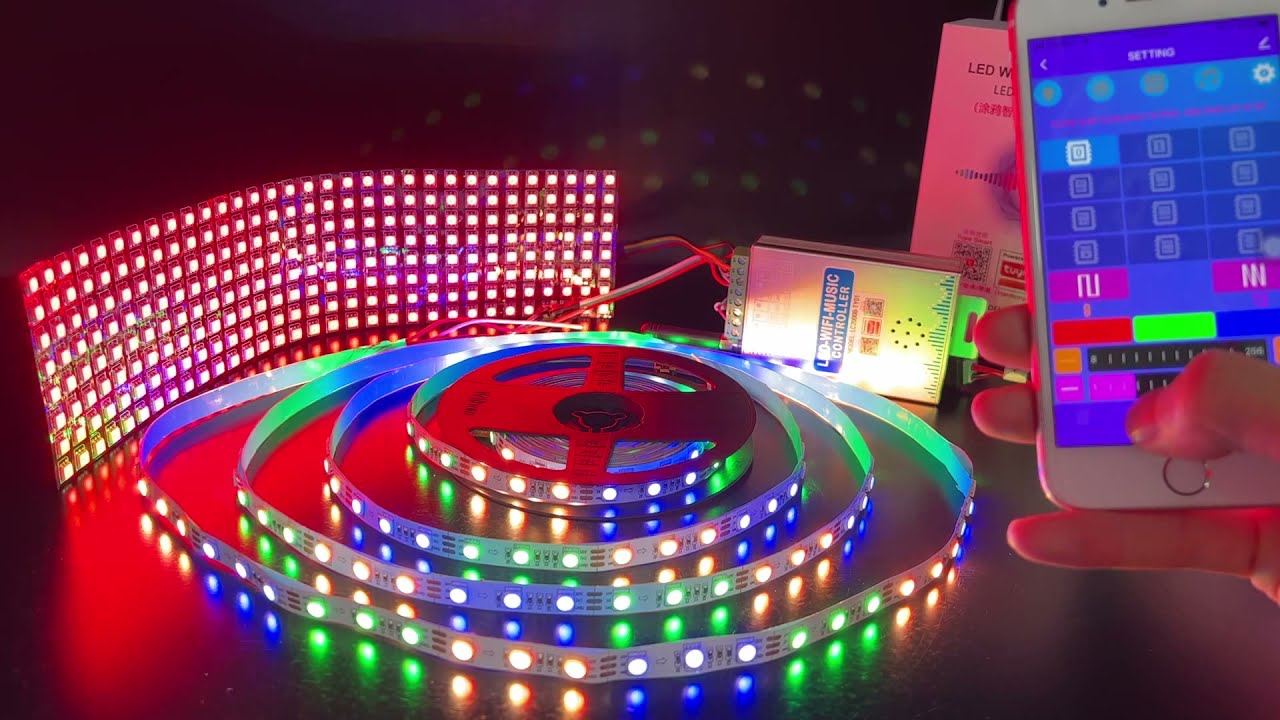

[ VIDEO: Watch on YouTube ]
UCS2904 Chips Specifications Download
Light strips advantages
With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;
With waterproof, in case of high temperature and low temperature does not change color, low voltage long life, and other advantages;
With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (than the neon energy saving 70%), It is decorative contours. Making a variety of modeling the ideal lighting.
Standards and Certifications
Input voltage: DC24V
Power: 14.4watt/meter, 72watt/roll
LED Chip Model: SMD 5050
LED resource: UCS2904 LED
IC Type: UCS2904 IC (1 IC drives 6 led chip)
Q'ty of LED: 60 LEDs/Meter
Q'ty of IC: 10 pixel /Meter
Cuttable: every 6 LED is cuttable
Dimensions: L500cm(196.85 in ) x W1.0cm(0.39 in ) x H0.25cm(0.1 in )
Color Temp(K): RGBW full color
FPC color: White
Protection rate: Non-waterproof or IP65( gel coating) IP67 waterproof (sealed in silicone tube)
Colors: Full color RGB; dream color changing
Grey scale: 256
Bits/color: 8-bits/color; total 24bit for RGB color
LED wavelengths: 630nm/530nm/475nm
Average Life (hrs): 50000Hours+
How to connect and control
Similar to SK6812 RGBW LED strip, the SK2812 led strip has 3 wires for sending data - one V+ pin, one GND pin, and one data pin. That means you need 3 pins to control strip. Because the data is separated, you can use any processor speed or type to control these strips. an addressable RGB LED strip is a long flexible strand of LEDs each of which can be individually set to a certain color (hence: addressable). By varying the level of red, green and blue (RGB) per LED many color combinations can be made you can use any processor speed or type to control these strips, you can use any microcontroller or microprocessor, including Arduino, Raspberry Pi, BeagleBone, Propeller, SparkCore, and any 'raw' microcontrollers/microprocessors to control the strip.
This strip comes as a single full meter with a 3-pin JST SM connector on each end. Every LEDs segment can be cut. Solder to the 0.1" copper pads and you're good to go.you can also connect strips together to make them longer. To power this strip, you need a 24V power supply.
This is our recommended SPI and Programmable controller link. We are a professional lighting system company, you can tell us your lighting project requirements, we will recommend the most reasonable lighting solutions for you. If you need a customized lighting scheme, please feel free to contact me.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
Applications
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Backlighting decoration
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
Note
The BLACK ARROWS on the strip tell the transmitting direction of the signal. When running more than one roll of the strip after the Dream Color Controller, the following rolls of Dream Color Strip should be run strictly follow the Arrow point direction. If connected oppositely, the strip will not work
