| Select Diffuser: | Transparent surface (Base), Milk white matte surface (Base) |
|---|---|
| Select DMX Address: | Auto DMX address (Base), No (Base), DMX address is set up (Base) |
| Select LED Quantity: | 48LEDS, 36LEDS (Base) |
| Select Light Color : | Warm White(3000K) (Base), Yellow(585-595nm), DMX512 RGB (Need DMX Console and Self-Programming), Daylight White(6000K), SPI/Addressable RGB |
| Select Operating Voltage: | 24VDC (Base) |
| Select Power: | 8W (Base) |
| Select Size: | 53x30x1000mm (Base), 35x23x1000mm (Base) |
| Availability | In Stock |
| Condition | Brand New |
[ VIDEO: Watch on YouTube ]
Features
1. Highlight 5050 LED chip: High transmittance, low energy consumption, long life, low light decay.
2. Environmentally friendly aluminum lamp body: Fast heat dissipation, wear, and corrosion resistance, hidden bottom line.
3. All-copper waterproof male and female joint: Low power consumption, good waterproof performance, aging resistance, high-temperature resistance.

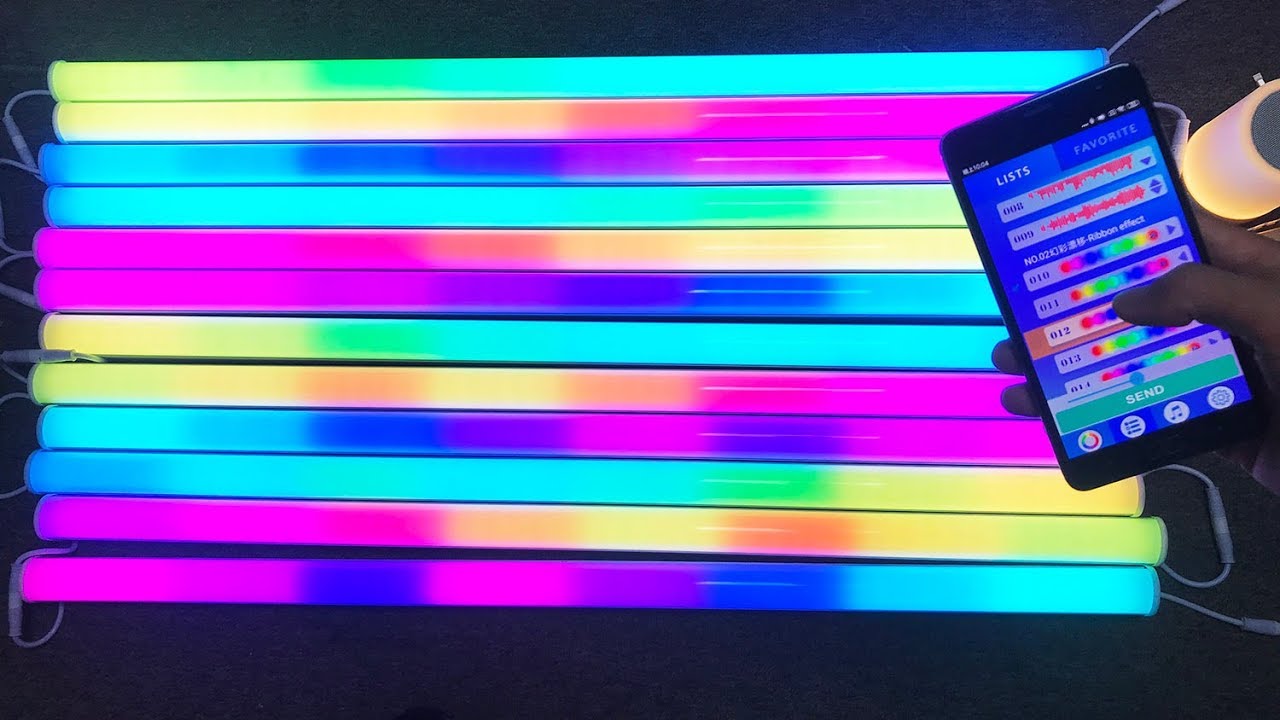

4. Luminous effect of the Linear LED Lighting is divided into single color and full color, single color has Warm White/Daylight White/Yellow, it usually uses for lighting. Full color has DMX512 Addressable, it supports seven color gradual change, jump, full-color scanning, chasing, running water, stacking, horse lamp effect, can also use multiple point light source to form dazzle color screen, background screen, pattern, animation, and other effects, so it usually uses for decorating.
5. Solid acrylic waterproof mask: The inside of Linear LED Lighting is completely filled with glue and waterproof treatment, protection of lamp beads, wear - resistant pressure.
6. Thickened aluminum rotatable bracket: Simple installation and easy to use.
SPI Addressable RGB Pixels: 6LEDs a pixel, 1pcs 36LEDs linear light=6 pixels, 1pcs 48LEDs linear light=8 pixels
DMX512 Addressable RGB Address: 6LEDs a DMX address, 24 DMX channels; 1pcs 36LEDs linear light=6 DMX addresses, 1pcs 48LEDs linear light=8 DMX addresses
Only option "DMX512 Addressable RGB" is dmx compatible. Auto DMX address linear lights can be installed randomly; set up DMX address linear lights can only be installed according to the order.
Standards and Certifications
Product Specification
LED Item: 8W Solid Acrylic LED Linear Lighting
LED Model: QCY-XT-09
LED Type: SMD LED Chips
Size of chip: 5050 SMD
Input voltage: DC24V
LED Lighting power: 8 Watt/ piece
Lamp bead quantity: 36/48LED
LED Light Color: Warm White/Daylight White/Yellow/UCS1903/DMX512
Fixture Dimensions: 35x23x1000mm (1.37''x0.9''x39.37'') / 53x30x1000mm (2.08''x1.18''x39.37'')
Brightness: high brightness
Grey level: 256
LED Lighting angle: 120
Color temperature: 2700-6500K
Working temperature: -30~40°C
Waterproof Rating: IP67
Luminous flux: 720/960LM
Control type: External control
CRI: 90
Fixture Material: Aluminum, Solid Acrylic
Dimmable: No
Certifications: RoHS, CE
LED Lifespan: 50000hours
Power wiring diagram
