| Apply to: | Addressable RGB & RGBW LED Strips (Base) |
|---|---|
| Availability | In Stock |
| Condition | Brand New |
This AHC8 signal amplifier (repeater) receives one way SPI signal, output signal Symphony 8 control group, multi-group Symphony of dream color strip light changes in effect, and an amplifier used for signal output via SPI, the theory can be cascaded countless signal amplifiers.
DC5V~24V wide range of working voltage, but it cannot regulate the output voltage. That means the output voltage of power supply must be the same as the work voltage of your LED lights. The current through the amplifier is limited, when the current consumed is high, you need to add the power supply of the corresponding voltage.
According to the silk-screen prompts on the panel of dream-color amplifier, connect input and output signal wires in order，ensure short circuit can not occur between wires, then connect power with dream-color amplifier, actually use it with dream-color controller, please reference to the following typical application.
Technical parameters
Working voltage: DC5V~24V
Working temperature: -20-60℃
Static power consumption: <1W
Output: 8 SPI signal output channels
External dimension: L155 Χ W55 Χ H20mm
Compatibale IC type: WS2812B, WS2811, SK6812, SK6812-RGBW, SM16703, UCS1903, WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822, LPD6803, LPD8806
Precautions:
The controller cannot regulate the output voltage at the VCC. That means the output voltage of your power supply must be the same as the work voltage of your LED lights. If your lights need 5V input, please use a 5V power supply, don't use higher than 5V power supplyThe current through the amplifier is limited, when the consumption current is higher, you need to add power supply of the corresponding voltage additionally.

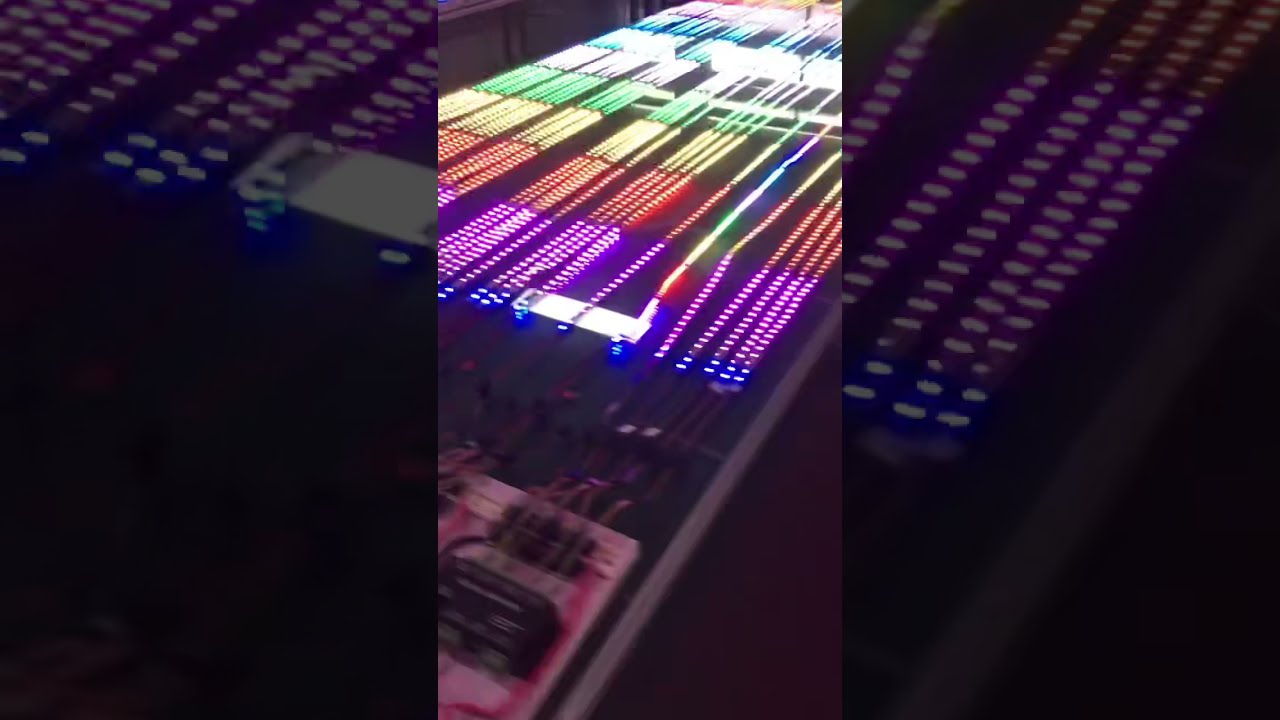

[ VIDEO: Watch on YouTube ]

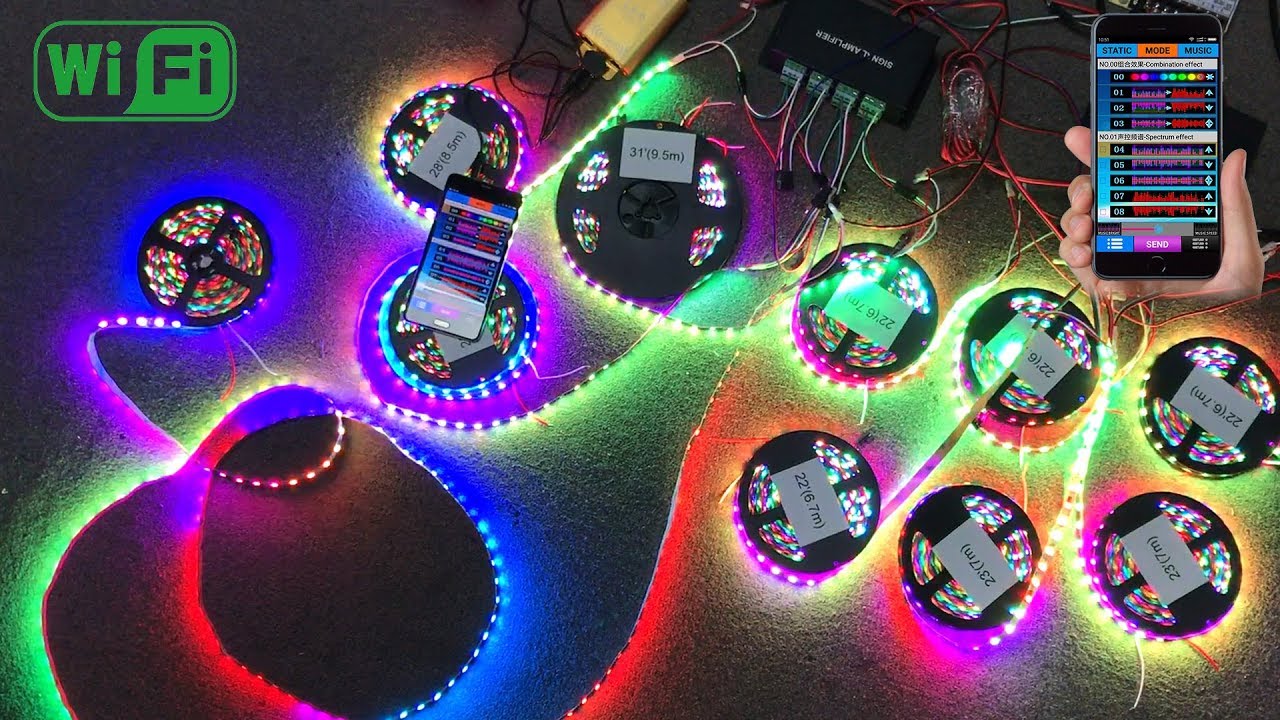

[ VIDEO: Watch on YouTube ]
