Super Panel Whole House Intelligence

 Product Introduction

Super Panel is a central control panel that integrates all of your connected devices to control the entire smart home. Based on 5G speed with cloud computing, it has the powerful intelligent gateway function with Bluetooth 5.0 SIG Mesh technology and is compatible with Wi-Fi, Bluetooth 5.0 SIG Mesh, and Ethernet.

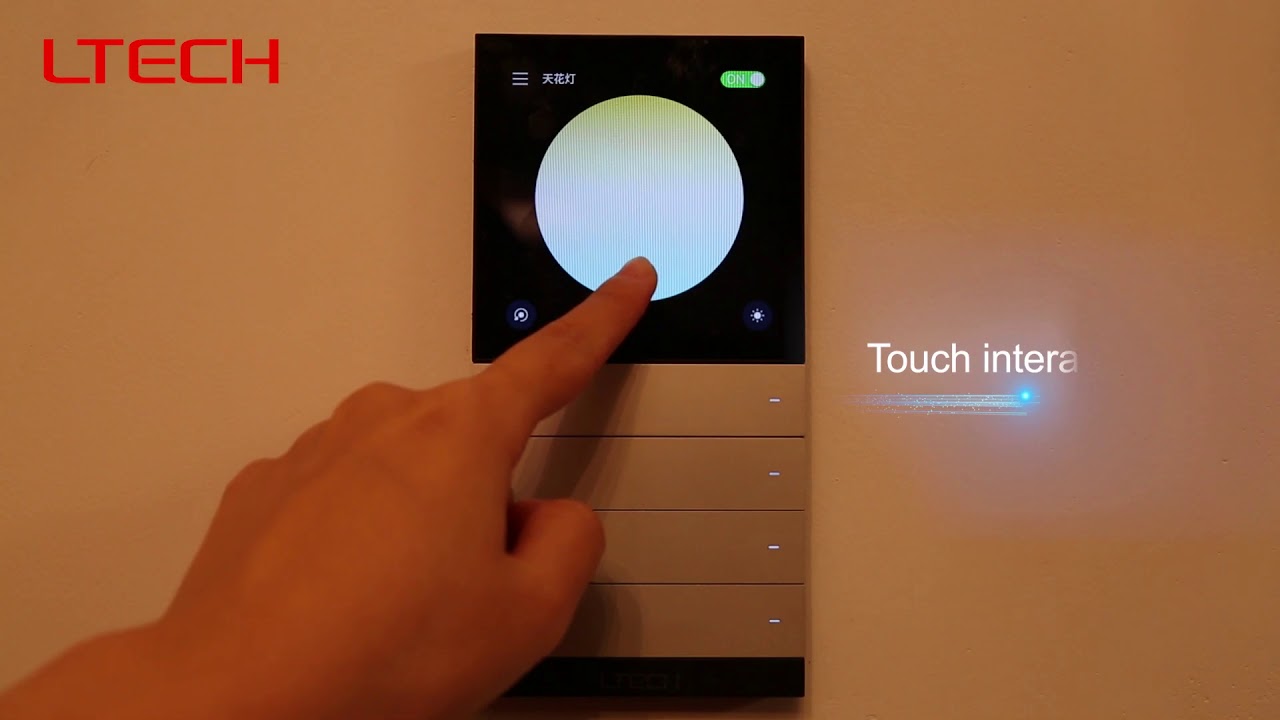

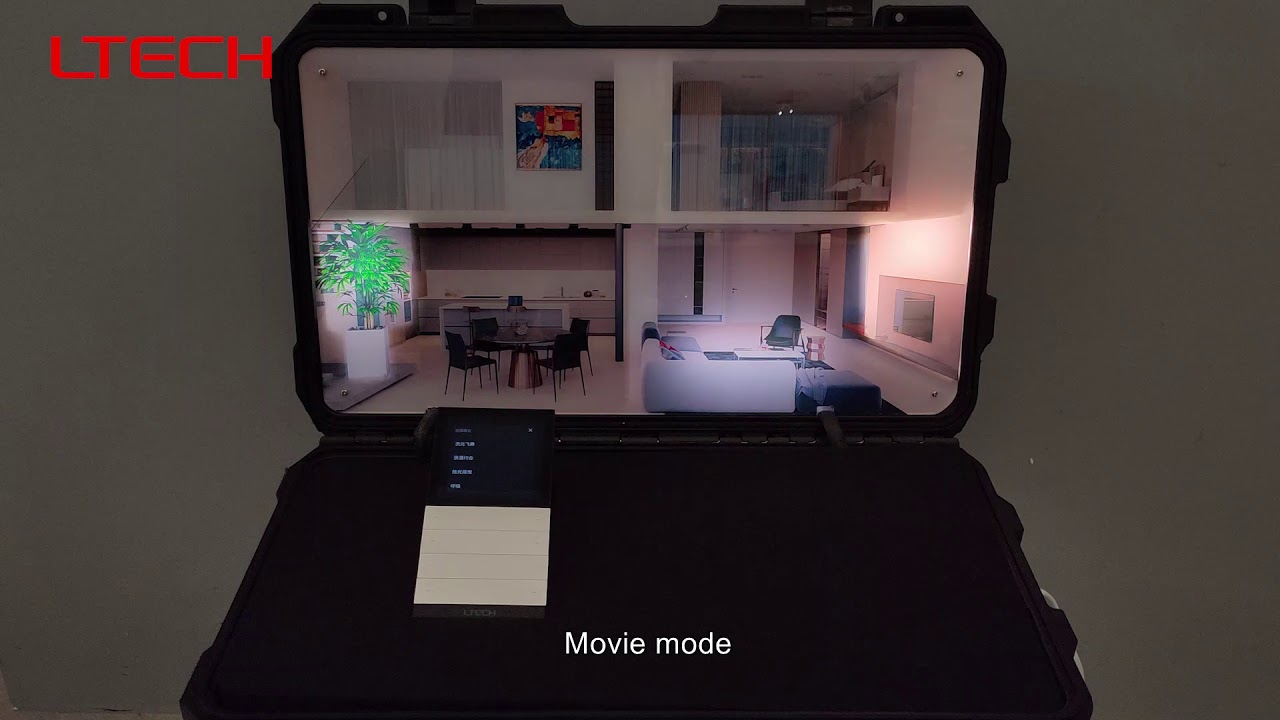

Support button, touch, and mobile App control. Multiple scenes preset for any occasion can be quickly turned on or off merely through slight taps on the buttons.

Easily control your lighting, air conditioning, infrared home appliances, curtains, and other items to build a complete smart home system.

Compatible with 86 type and European style standard junction boxes, no need to modify the wiring that can easily replace traditional switches.





Speciication

Name: Super Panel

Power Supply: AC100-240V

Display: 4.0 inches 720*720 resolution

Speaker: AAC 1813

Microphone: Dual Microphone Array

Humidity Sensor Accuracy: ±0.3%

Temperature Sensor Accuracy: ±0.3℃

Master Control: Quad-core Processor

Network Type: Wi-Fi, Bluetooth 5.0 Mesh, Ethernet

Terminal Box: 86 and  EU type

Distance Sensor: Automatic wakeup, 10~15cm gesture sensing

Body Material: Aluminum alloy, PC+fiberglass, V0 fireproofing grade



  SP-GW-BLE

Attentions

The installation location should avoid being close to large-area metal objects against signal interference.

Please use it in a cool and dry environment.

Please keep away from heat.

Please do not open, change or repair, otherwise, the warranty is not allowed.



FAQs

1. What should I do if I fail to configure the device to the Internet?

1.1 Please make sure the device is powered on normally.

1.2 Please make sure the device hasn’t been added by any other account. If it did, please delete it on the APP and add it again.

1.3 Please keep your mobile phone, device, and router as close as possible.

1.4 Please make sure your router account and password are correct, and the router works with the network available.

2. How to change user accounts?

Super Panel has one standard user account only. The Super Panel that has been added needs to be deleted by the original owner before your login.
