| Select Input Voltage: | DC5V (Base) |
|---|---|
| Select Length: | 3.28ft (1 meter) (Base), 16.4ft (5 meters), 6.56ft (2 meters), 9.84ft (3 meters) |
| Select Light Type: | 1-LED Cuttable (Base), 2-LED Cuttable |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Transparent Heat Shrink Tube IP67, Outdoor Silicone Tube IP67 - Adhesive Back |
| Availability | In Stock |
| Condition | Brand New |
The WS2812C addressable LED light strip uses DC5V power supply with a high safety factor. The light source uses imported chips, high brightness, low light decay, maintenance-free, energy saving, environmental protection, and long life. Therefore, more and more people choose LED light strips as decoration and lighting.
This WS2812C 2020 led stirp has 256 grey levels, fast data transmission, fast screen refresh, and use with the led controller to achieve monochrome, gradual change, running water, horse racing, chasing, dream, right Bump, text, numbers, English, pictures, animation, video and other effects.
The WS2812C-2020 led light strip uses FPC as the assembly circuit board and uses SMD LEDs and original parts to assemble, so that the thickness of the product is only the thickness of a coin, with a small volume and a small space occupation. Flexible FPC material can be cut and wound at will, not easy to break, suitable for use in irregular places and places with small spaces. The LED lamp bead is designed with built-in IC, with few originals, high pixels, neat and beautiful appearance, suitable for advertising, lighting and decoration.
Each LED light forms a loop, which can be cut at the loop according to the required length without damaging other parts;
Easy to install and fix, flexible and convenient to cut to make the construction operation simple;
Waterproof grade is optional: non-waterproof (IP20), silicone casing (IP67).
If you are looking for more WS2812C 2020 led strips, view these models: 200LEDs/m 4mm WS2812C-2020-200W4, 90LEDs/m 4mm WS2812C-RGB-2020X450, and car led strip DCFLS-WS2812C-5V-92 and DCFLS-WS2812C-5V-135.

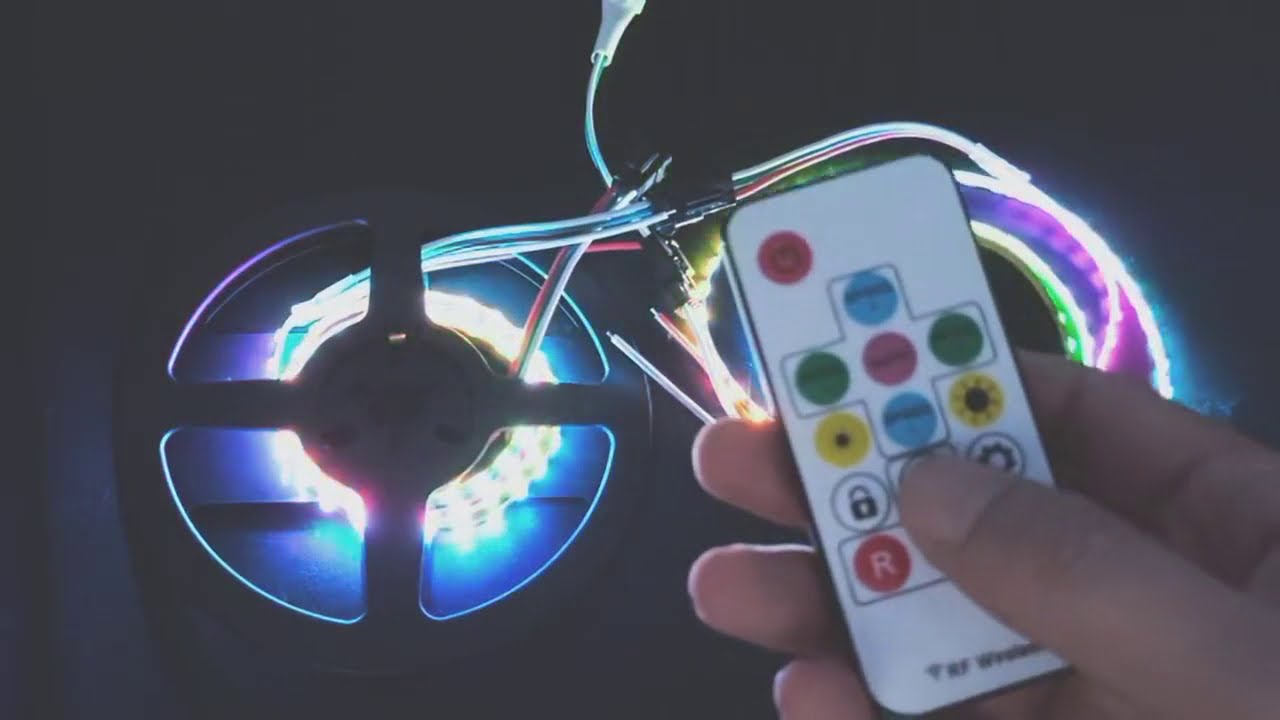

[ VIDEO: Watch on YouTube ]
WS2812C 2020 Datasheet Download
Product Specification
| LED Strip Type: | SMD 2020 LED |
| LED Chip: | WS2812B (built-in IC) |
| Input Voltage(V): | 5VDC |
| Length: | 3.28ft/1m |
| LED Quantity: | 120 PCS/M |
| LED Color: | Full color RGB, dream color changing |
| Product Size: | 1000mm*4mm*1mm |
| Pixel: | 120CS/M |
| Working Power: | 6W/m |
| Grey Scale: | 256 |
| Beam Pattern: | 120 degrees |
| Waterproof Rating: | Non-waterproof IP20 (Bare strip for indoor), IP67 waterproof (Sealed in silicone tube, for outdoor) |
| Lifespan: | 50,000+hours |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
