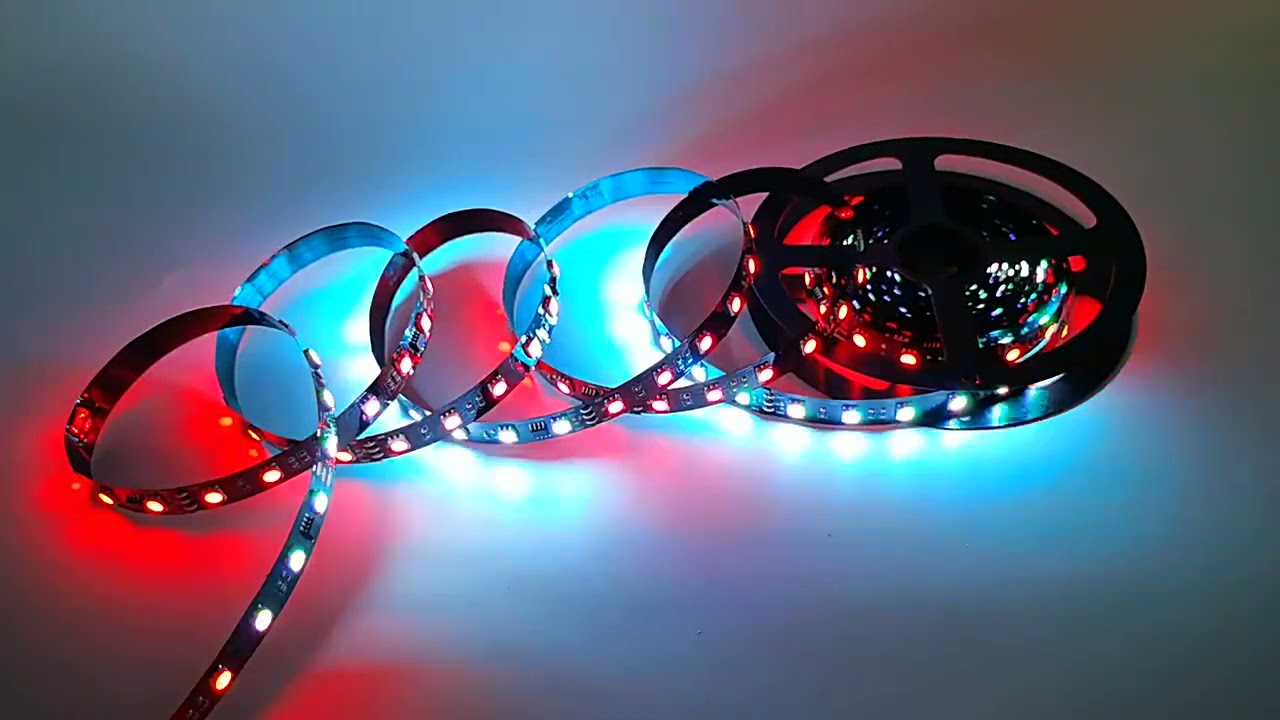

WS2813 5mm/0.20in Width 300LEDs 16.4Ft Breakpoint-continue Individual Addressable RGB LED Strip Light

WS2813 Addressable LED Strip Light Advantages

WS2813 addressable led strip WS2813 intelligent control LED light source integrates the control circuit and RGB chip into the 5050 component package, is an intelligent control LED light source that internally includes an intelligent digital port data latch and signal to reshape amplification drive circuit. Also include a precision internal oscillator and a DC5V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.

WS2813 adopts dual data interface communication, WS2813 addressable LED strip light has 4 pins: V+ pin (+5V), GND pin (GND), and data pin (DO and BO), V+ and GND pins are connected to the LED power supply to power the LED strip, and the data pin is connected to the LED controller.

Double signal line has the advantage of continuous transmission at a breakpoint. Single LED does not light up and will not affect the lighting use of other LEDs. As long as there is no damage to other adjacent LEDs, the remaining LEDs will continue to work normally.

WS2813 has a refresh rate of 2000 Hz, which can produce excellent display effects without flickering in high-definition cameras.



Main Advantages

1.Dual-signal wires version, signal break-point continuous transmission. If one led is damaged, it will not affect the other LEDs working

2.Individually addressable: Every 1 IC control 1 led, can be made into a high-density high-definition display; every LED can be individually addressable and show any color you want. The strip can be cut off between every one LED without damaging the rest strip if you want it to shorten or lengthen, also can be re-connect by provided connectors

3.Waterproof IP67: the ribbon light is covered with a silicone protective sleeve, which can protect it well and makes it easy to clean

4.Wide compatibility. Works great with Arduino, Adafruit NeoPixel Library, Fast LED library, and Raspberry Pi, etc.

5.Have the dream color effect, single-flow, gradient, chase, scan, and other full-color effects; Splicing to achieve text movement and video animation and other dynamic effects;

6.2unce double cooper PCB board is flexible can be bend and cut, which can achieve a certain curvature and length of the modeling screen.

7.Ever 1 LED can be cut, there is cut lines every 1 led, 60LEDs/M. 5V low voltage inputted, don’t over 6V, otherwise, you will destroy the entire strip.

8.Controller System: SD controller, DMX controller, Artnet, and so on. (SPI protocol)

9.Installing: screw+silicon clip and 3M adhesive on backside for sticky



Main Feature:

300 Addressable RGB LEDs

High-quality SMD5050 LED chip

Customize IP67 waterproof

Single LED cuttable, individually addressable

DC5V low voltage,  safety, and stability

Multiple dynamic color chasing effect

3M tape, easy installation

2000 Hz refresh rate

Dual signal lines breakpoint continuous

5mm/0.20in ultra-narrow Programmable LED light strip



WS2813 Chips Specifications Download
