| Select Connector Type: | Waterproof Wires (Base), Waterproof Male Connector (With Pins) |
|---|---|
| Select Input Voltage: | DC24V (Base), DC12V (Base), AC100~265V |
| Select Light Color : | Warm White(3000K) (Base), DMX512 RGB (Need DMX Console and Self-Programming), Golden Yellow(575-580nm) (Base), Natural White(4000K) (Base), Daylight White(6000K) (Base), Red, Blue, Green, DMX512 RGB+White 3000K (Need DMX Console and Self-Programming), DMX512 RGB+White 6000K (Need DMX Console and Self-Programming) |
| Select Size: | 42mm (Base), 52mm, 62mm, 75mm, 10mm, 15mm, 22mm (Base), 25mm, 32mm |
| Select Wire Outlet: | Only Input (Base) |
| Availability | In Stock |
| Condition | Brand New |

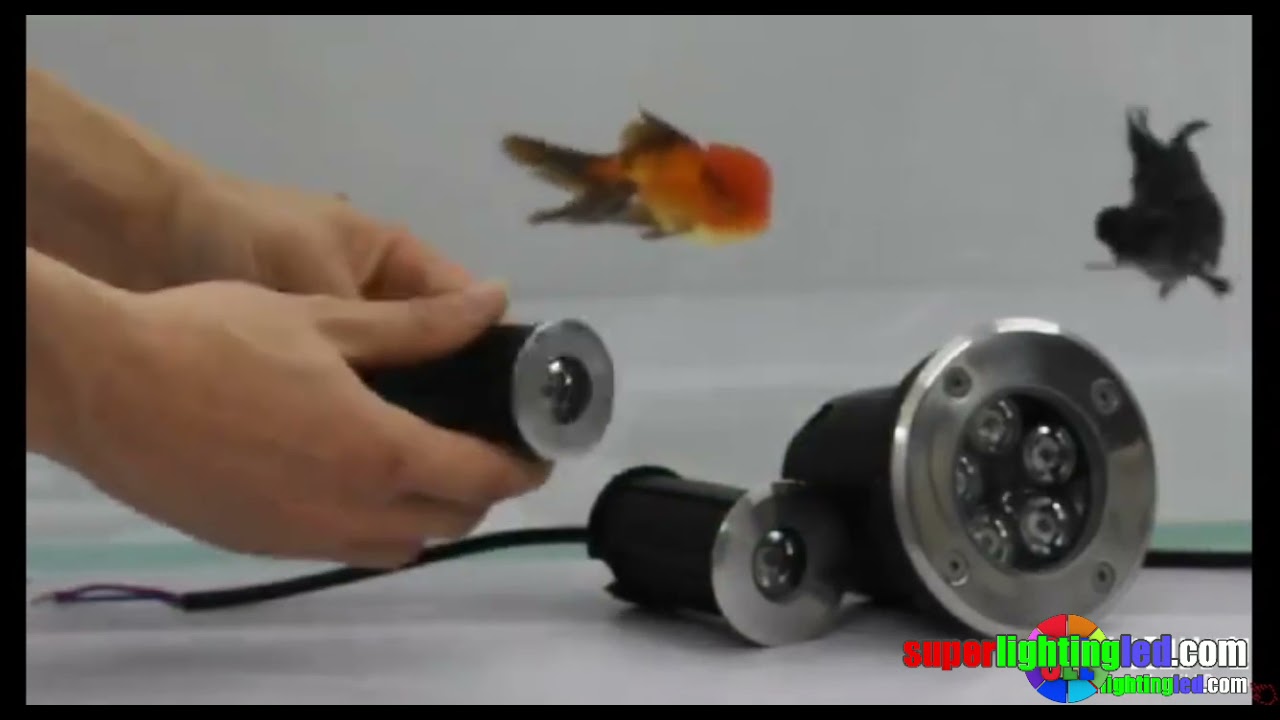

Check this mini LED underground light for your courtyard, made of thick stainless steel material and high-strength tempered glass cover, is resistant to compression and shattering. The IP68 waterproof rating is suitable for outdoor environment use and underwater use. The product comes with an ABS flame-retardant plastic embedded part, which facilitates the recessed installation, and can prevent the lamp body from being corroded.
Single-color underground spotlights are with 2 pins (positive and negative), DMX RGB and RGBW versions are with 5 pins (default, V+, GND, A, B, P) or 6 pins (V+, GND, A, B, Pi, Po). Please ensure compatibility with these cables when selecting waterproof connectors or extension cords.
Please note that small-sized in-ground lights such as 10mm, 15mm, and 22mm do not include grounding components.
| Product Size | Opening Hole Size | Power |
| 32mm*52mm | 26mm*42mm | 1W/pcs |
| 42mm*72mm | 38mm*62mm | 1W/pcs or 3W/pcs |
| 52mm*82mm | 48mm*72mm | 1W/pcs or 3W/pcs |
| 62mm*86mm | 58mm*76mm | 1W/pcs or 3W/pcs |
| 75mm*95mm | 65mm*85mm | 3W/pcs |
Standards and Certifications
Product Specification
Working Power: 1W/3W
LED Light Source: High-power lumens LED lamp beads
Light Color: daylight white/warm white/natural white/red /green /blue /golden yellow
Beam Angle: 60 degrees
Lamp Material: 304 stainless steel lamp body + plastic embedded parts + tempered glass
Input Voltage: DC12/24V, AC110/220V
Working Temperature: -30~45°C
Lamp Operating Temperature: less than 60°C
Color Rendering Index: > 80
Lifespan: 50000 hours
Waterproof Rating: IP68
Continuous lighting time: more than 36 hours
Package List: 1*LED underground light
