| Select Kit: | LED Strips (Base), LED Strips + Controller, LED Strips + Controller + Power Adapter |
|---|---|
| Select Length: | 3.28ft (1 meter) (Base), 6.56ft (2 meters) |
| Select PCB Color : | White Background (Base), Black Background (Base) |
| Select PCB Width: | 5mm (0.2in), 4mm (0.157in) (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Transparent Heat Shrink Tube IP67, Outdoor Silicone Tube IP67 - Adhesive Back |
| Availability | In Stock |
| Condition | Brand New |

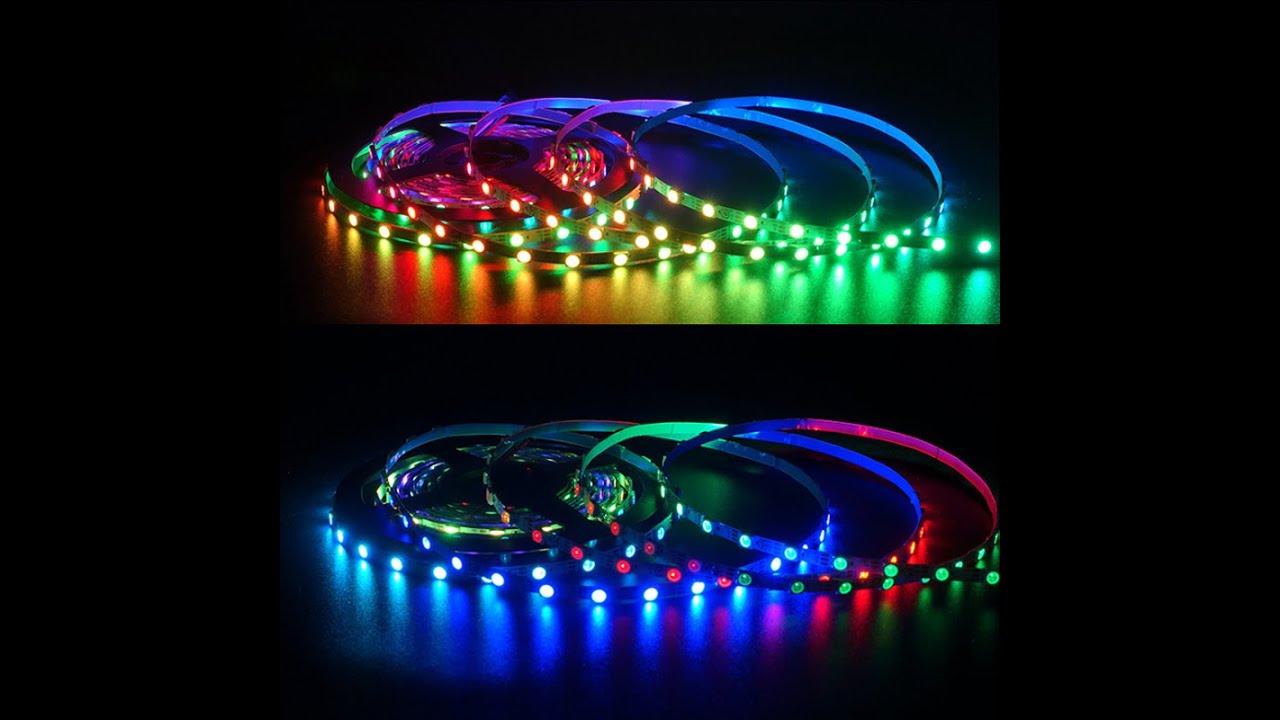

4mm/0.16in ultra-narrow WS2812B addressable RGB led strip light, DC5V low voltage control, no radiation, no flicker, safety and stability, 3M tape on the back, suitable for a narrow space environment and easy to install.
5V WS2812B is a single data channel addressable light strip with wide applicability and strong matching, work with Arduino. Suitable for home decoration lighting and mood lighting, Individually programmable and suitable for industrial lighting.
Main Feature:
4mm/0.16in super narrow LED strip light
High quality SMD5050 LED chip
Customize IP67 Waterproof
Total 300LEDs, high brightness
Single LED cuttable, individual addressable
DC5V low voltage, safety and stability
Multiple dynamic color chasing effect
3M tape, easy installation
Kit Products: 2CH Bluetooth controller CONFULL-SP601E, 8A 5V power adapter PSPS-5V-8A
WS2812B 5050 Datasheet
[ VIDEO: Watch on YouTube ]
Standards and Certifications
Product Specification
LED Strip Type: SMD5050 Dream RGB 300LEDs/16.4ft
LED Chip: Epistar super brights Chip
IC Type: WS2812B IC
Beam Angle: 120 degrees
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Power: 14.4W/m, 28.89W/6.56ft
Input Voltage: DC5V
PCB Width: 4mm/0.16in
LED Quantity: 60LED/m, 300LEDs/Roll
IC Quantity: 60IC/m (individual addressable)
Waterproof Rating: IP20(non-waterproof) / IP67(waterproof)
Cutable: one LED cuttable
Color Temperature: RGB
Circuit Board: double-sided FPC electrolytic copper circuit board
Lifespan: 50,000+hour
Warantty: 3 years
How to install addressable led strip lights?
| ►Connection method two: |
*SPI LED Strip lights wiring diagram with 10m*
