Alexa SPI LED Controller WiFi APP + RF Remote Control - 2 Output









How to set the IC model and IC numbers:

Long press the device and click on“ Change LED Strip Type” to set the IC model, Wiring and Sorting, Number of points, Number of segment(Total number of points can not exceed 300 in each segment and total LED chip’s quantity can not exceed 2048). On music mode, the total number of points in each segment and the total number of segment should be less than 150 points and 64 segments, the total LED Chip’s quantity should be less than 960.



Detailed introduction of APP functions

Fixed Mode

10 fixed modes are built in, can change foreground and background color, adjust brightness, speed and direction freely.



Rbm Mode

100 patterns of change, slide the ring to select pattern effect, and slide“ ” or“ ” for overall pattern effect brightness or speed settings. Click on“ AUTO” to enter cycle mode or click on the heart icon to mark the favorite effect.



DIY Mode

Customized your own effects, click on”+” to choose your favorite effect and color then save it, now you can enjoy your own light effects at any time.



Music Mode

1. In the light screen mode, you can choose the falling color, column color, sensitivity and brightness, which can be played circularly to achieve a more beautiful light effect.

2. In the LED Strip Mode, you can select the brightness and sensitivity. There are two ways to input the audio signal on the controller, built in APP microphone and external microphone.



Multi color function

1.Can set each IC seperately and set the lights with different modes 2. Optional dynamic modes for color lump gradient or mixed colors gradient:static, Asynchronous colors jumping, random color breathing, strobe and flow

2.The area where the camera is aimed at is the coloring area, and the light color will changed accordingly.



Timer function

Smart lights automatically come on and off at given times through the timer function. When setting the timer switch, you can select the color or dynamic mode and adjust the brightness and speed freely.



Delay on/off function

The lighting delay on/off time can be set according to personal preference.

ATTENTIONS

1. Please use the product in a dry environment.

2. Please use the input voltage at 5-24V DC voltage, must not connect into 220VAC directly.

3. The product is requested common anode connection. The wrong connection will cause a malfunction.

 The controller built-in 2048 pixels, can be connect 6 rolls of WS2812B 5V led strips or 20 rolls of WS2811 DC12V led strips, a 1to8 amplifier can magnify the signal by 8 times, So an amplifier can be connected over 24 rolls of WS2812B 60LEDs/m led strips, two amplifier can be connected over 48 rolls of WS2812B 60LEDs/m led strips.

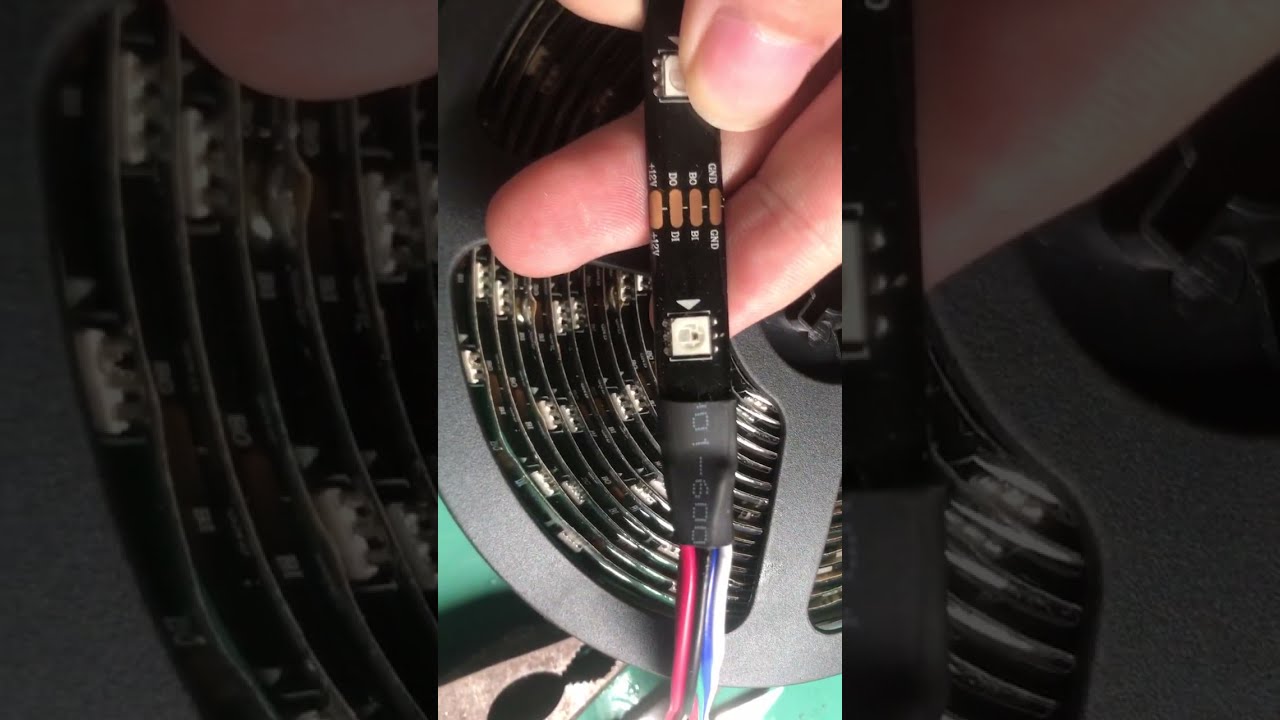

 If you you want to control DC5V WS2812B/SK6812 led strip, please cut the red wire(V+), just connect white and green wire(GND,DAT) and all the led strips please supply DC5V power seperately, the controller supply DC12V 3A power seperately,

 if your light power more than 80watt, we also suggest that you supply the light strip power separately.

 if your led light pixel more than 2048 pixels, please use a signal amplifier.









Note:

Remote control code matching function: power on the device, hold down "ON" key for 5 seconds, the device flashes slowly to indicate successful code matching.

Remote code clearing function: power on the device, hold down "OFF" key for 5 seconds, the device flashes quickly to indicate successful clearing

Scene mode can only record one custom color
