| Select Kit: | LED Strips (Base), LED Strips + Controller + Power Supply, LED Strips + Controller |
|---|---|
| Select Length: | 16.4ft (5 meters) (Base) |
| Select Light Color : | RGB + Daylight White 6000K (Base), RGB + Warm White 3000K (Base) |
| Select PCB Width: | 16mm (0.63in) (Base) |
| Select Waterproof Rating: | Non-Waterproof IP20 - Adhesive Back (Base), Outdoor Silicone Tube IP67 - With Brackets |
| Availability | In Stock |
| Condition | Brand New |
This high-density 120LEDs/m WS2814 led strip light is a 4-in-1 RGBW type, it integrates SMD5050 LEDs and 8pin external WS2814 ICs evenly arranged on the 16mm/0.63in wide PCB board. One WS2814 RGBW IC controls 6LEDs, and each 50mm segment can be cut, cut the LED strip along the cuttable line to customize the length of the digital LED strip light.

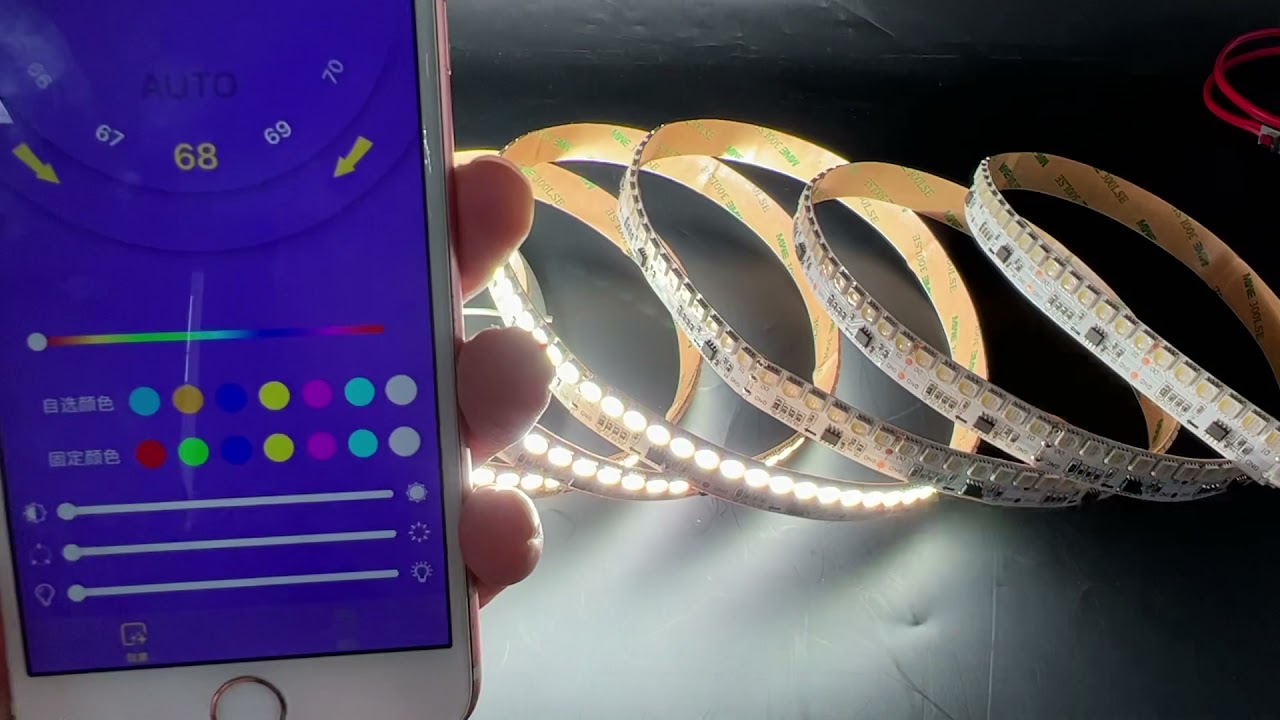

The addition of the white LED allows the strip light to appear more accurate and nuanced color representation. Matched with a dream color addressable RGBW controller, it can achieve dynamic color effects. You can individually control the RGB lights and 3000K/6000K white light to get your desired lighting. The WS2814 RGBW LED strip light is compitable with SK6812 RGBW LED controller.
The WS2814 addressable RGBW LED strip supports DC24V low voltage input, harmless to the human body, energy-saving and environmental protection. 8-10m without voltage drop. With strong adhesive tape on the back, easy to install.
Customized waterproof grade, externally wrapped with high-quality silicone sleeve, waterproof grade reaches IP67, suitable for indoor & outdoor lighting environments. It can be installed with silicone neon tube to achieve dotless lighting.
Similar to other single signal wire address LED strip lights, the WS2814 RGBW led strip has 3 wires for sending data: one V+ pin, one GND pin, and one data pin. This digital strip comes with a 3-pin JST SM connector on each end. You need to choose a DC24V LED strip light power supply to power it.
Product Feature
DC24V low-voltage input
37LEDs per foot, 120LEDs/m, high density
6LEDs cuttable
Customize length
8 PIN external IC
WS2814 addressable LED
SMD5050 high brightness LED
IP67 waterproof optional
8-10m without voltage drop
RGBW single signal 3-wire LED strip
Compitable with SK6812 RGBW LED controller
Double-sided tape, easy to install
Standards and Certifications
Product Specifications
| LED Strip Type: | Addressable WS2814 RGBW LED Strip Light |
| LED Chip: | 8PIN external WS2814 IC + SMD5050 4-in-1 Chip |
| Input Voltage: | DC24V |
| Power: | 20.8W/M |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Storage Temperature: | -40°F (-40°C) ~ 176°F (80°C) |
| LED Color: | Addressable RGBW (RGB + 6000K Daylight White / 3000K Warm White) |
| PCB Width: | 16mm/0.63" |
| LED Quantity: | 120LEDs/m, 37LEDs/Ft, 600LEDs/16.4Ft |
| IC Quantity: | 20 pixels per meter, 100 per roll (1 IC drives 6 led chip) |
| Cuttable: | 6-LED, 50mm/1.96" |
| Waterproof Rating: | Non-waterproof IP20 / Outdoor Waterproof IP67 |
| Strip Length: | 5m/16.4ft |
| PCB Color: | White |
| Lifespan: | 50,000+hours |
| Beam Angle: | 120° |
| Lumen: | 22-24 lm/LED |
Product List
1* 5m/16.4Ft WS2814 RGBW LED strip light
If you choose the LED controller in the kit, we will send you CONFULL-SP630E bluetooth music controller.
If you choose the LED power supply in the kit, we will send you 24V 200W MW UL-Listed IP20 LED power supply (including an AC plug)
For outdoor environmnt, you can choose our 200W MW UL-LIsted IP67 power supply or 200W waterproof LED power supply.
You can also choose our waterproof BOX to protect the LED controller.
Applications
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Backlighting decoration
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
